Каталог Iscar вращающийся инструмент 2017 - страница 889

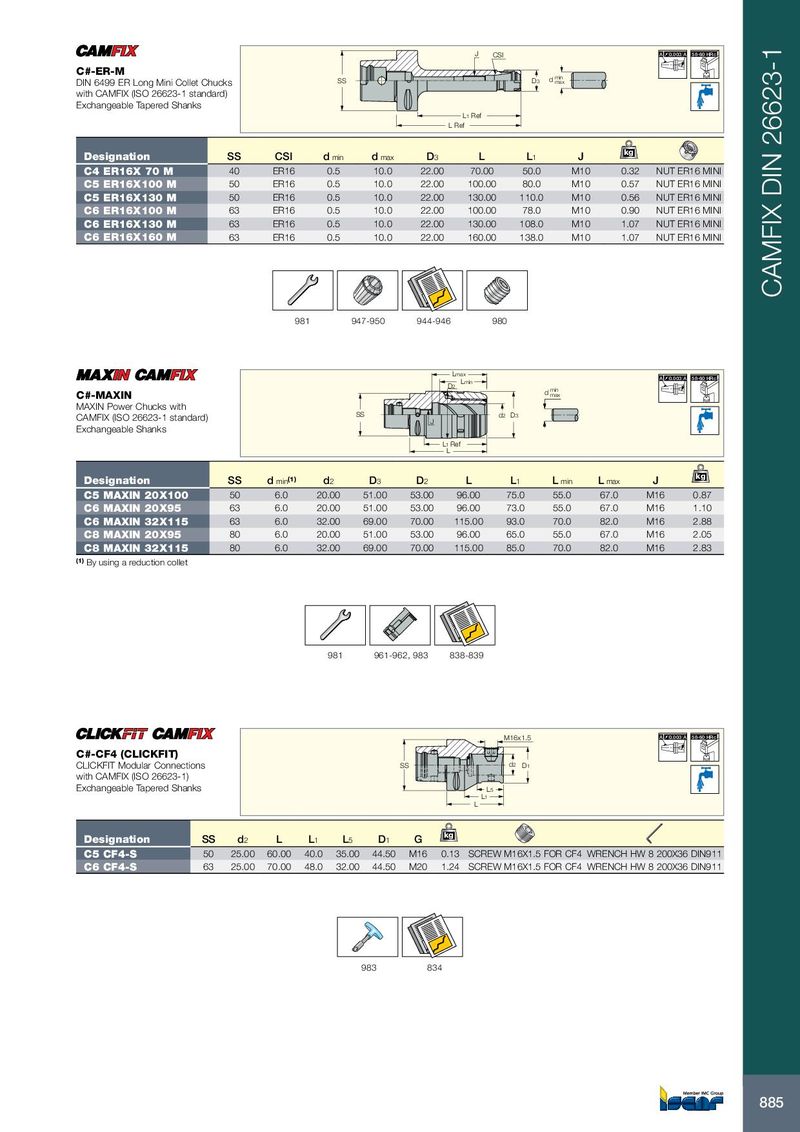

J CSI A 0.003 A 58-60 HRc C#-ER-M DIN 6499 ER Long Mini Collet Chucks SS D3 d min max with CAMFIX (ISO 26623-1 standard) Exchangeable Tapered Shanks L1 Ref L Ref kg Designation SS CSI d min d max D 3 L L 1 J C4 ER16X 70 M 40 ER16 0.5 10.0 22.00 70.00 50.0 M10 0.32 NUT ER16 MINI C5 ER16X100 M 50 ER16 0.5 10.0 22.00 100.00 80.0 M10 0.57 NUT ER16 MINI C5 ER16X130 M 50 ER16 0.5 10.0 22.00 130.00 110.0 M10 0.56 NUT ER16 MINI C6 ER16X100 M 63 ER16 0.5 10.0 22.00 100.00 78.0 M10 0.90 NUT ER16 MINI C6 ER16X130 M 63 ER16 0.5 10.0 22.00 130.00 108.0 M10 1.07 NUT ER16 MINI C6 ER16X160 M 63 ER16 0.5 10.0 22.00 160.00 138.0 M10 1.07 NUT ER16 MINI CAMFIX DIN 26623-1 981 947-950 944-946 980 Lmax Lmin A 0.003 A 58-60 HRc D2 C#-MAXIN d min max MAXIN Power Chucks with CAMFIX (ISO 26623-1 standard) SS d2 D3 J Exchangeable Shanks L1 Ref L kg Designation SS d min (1) d 2 D 3 D 2 L L 1 L min L max J C5 MAXIN 20X100 50 6.0 20.00 51.00 53.00 96.00 75.0 55.0 67.0 M16 0.87 C6 MAXIN 20X95 63 6.0 20.00 51.00 53.00 96.00 73.0 55.0 67.0 M16 1.10 C6 MAXIN 32X115 63 6.0 32.00 69.00 70.00 115.00 93.0 70.0 82.0 M16 2.88 C8 MAXIN 20X95 80 6.0 20.00 51.00 53.00 96.00 65.0 55.0 67.0 M16 2.05 C8 MAXIN 32X115 80 6.0 32.00 69.00 70.00 115.00 85.0 70.0 82.0 M16 2.83 (1) By using a reduction collet 981 961-962, 983 838-839 M16x1.5 A 0.003 A 58-60 HRc C#-CF4 (CLICKFIT) CLICKFIT Modular Connections SS d2 D1 with CAMFIX (ISO 26623-1) Exchangeable Tapered Shanks L5 L1 L kg Designation SS d 2 L L 1 L 5 D 1 G C5 CF4-S 50 25.00 60.00 40.0 35.00 44.50 M16 0.13 SCREW M16X1.5 FOR CF4 WRENCH HW 8 200X36 DIN911 C6 CF4-S 63 25.00 70.00 48.0 32.00 44.50 M20 1.24 SCREW M16X1.5 FOR CF4 WRENCH HW 8 200X36 DIN911 983 834 885
