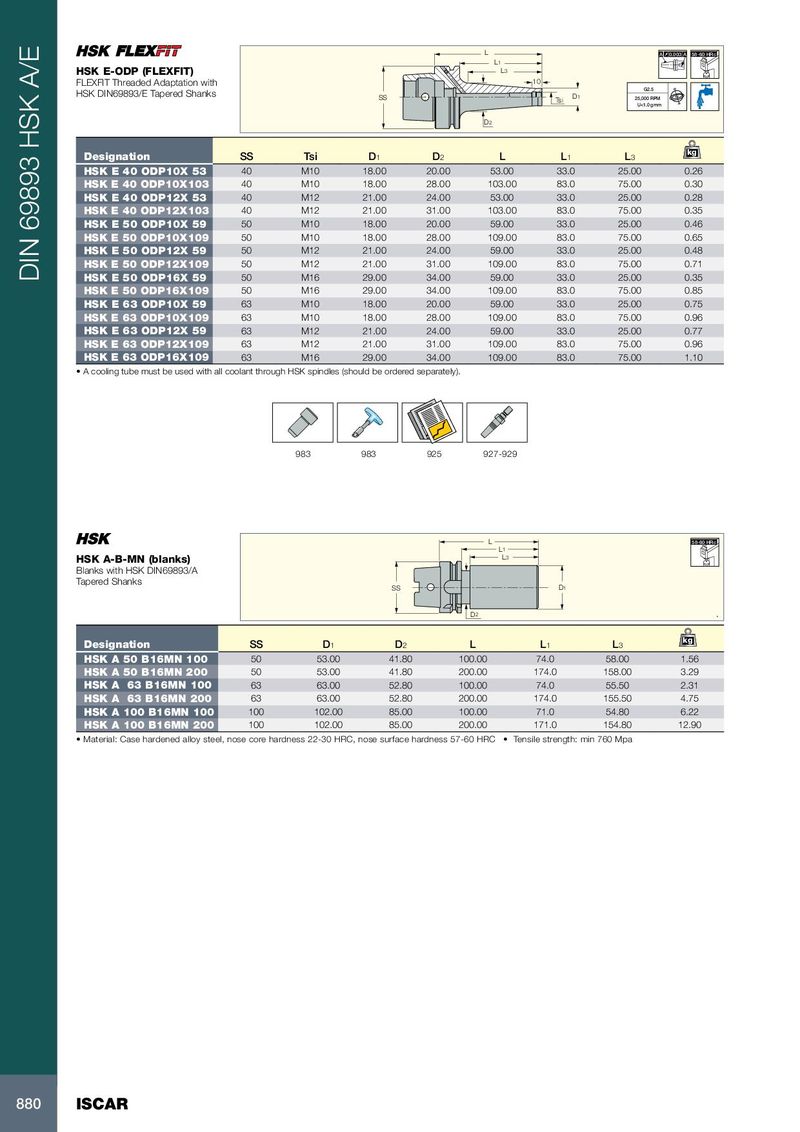

L A 0.003 A 58-60 HRc L 1 HSK E-ODP (FLEXFIT) L 3 FLEXFIT Threaded Adaptation with 10 G2.5 HSK DIN69893/E Tapered Shanks SS Tsi D 1 25,000 RPM U<1.0 gmm D 2 kg Designation SS Tsi D 1 D 2 L L 1 L 3 HSK E 40 ODP10X 53 40 M10 18.00 20.00 53.00 33.0 25.00 0.26 HSK E 40 ODP10X103 40 M10 18.00 28.00 103.00 83.0 75.00 0.30 HSK E 40 ODP12X 53 40 M12 21.00 24.00 53.00 33.0 25.00 0.28 HSK E 40 ODP12X103 40 M12 21.00 31.00 103.00 83.0 75.00 0.35 HSK E 50 ODP10X 59 50 M10 18.00 20.00 59.00 33.0 25.00 0.46 HSK E 50 ODP10X109 50 M10 18.00 28.00 109.00 83.0 75.00 0.65 HSK E 50 ODP12X 59 50 M12 21.00 24.00 59.00 33.0 25.00 0.48 HSK E 50 ODP12X109 50 M12 21.00 31.00 109.00 83.0 75.00 0.71 DIN 69893 HSK A/E HSK E 50 ODP16X 59 50 M16 29.00 34.00 59.00 33.0 25.00 0.35 HSK E 50 ODP16X109 50 M16 29.00 34.00 109.00 83.0 75.00 0.85 HSK E 63 ODP10X 59 63 M10 18.00 20.00 59.00 33.0 25.00 0.75 HSK E 63 ODP10X109 63 M10 18.00 28.00 109.00 83.0 75.00 0.96 HSK E 63 ODP12X 59 63 M12 21.00 24.00 59.00 33.0 25.00 0.77 HSK E 63 ODP12X109 63 M12 21.00 31.00 109.00 83.0 75.00 0.96 HSK E 63 ODP16X109 63 M16 29.00 34.00 109.00 83.0 75.00 1.10 • A cooling tube must be used with all coolant through HSK spindles (should be ordered separately). 983 983 925 927-929 L 58-60 HRc L 1 HSK A-B-MN (blanks) L 3 Blanks with HSK DIN69893/A Tapered Shanks SS D 1 D 2 . kg Designation SS D 1 D 2 L L 1 L 3 HSK A 50 B16MN 100 50 53.00 41.80 100.00 74.0 58.00 1.56 HSK A 50 B16MN 200 50 53.00 41.80 200.00 174.0 158.00 3.29 HSK A 63 B16MN 100 63 63.00 52.80 100.00 74.0 55.50 2.31 HSK A 63 B16MN 200 63 63.00 52.80 200.00 174.0 155.50 4.75 HSK A 100 B16MN 100 100 102.00 85.00 100.00 71.0 54.80 6.22 HSK A 100 B16MN 200 100 102.00 85.00 200.00 171.0 154.80 12.90 • Material: Case hardened alloy steel, nose core hardness 22-30 HRC, nose surface hardness 57-60 HRC • Tensile strength: min 760 Mpa 880 ISCAR
