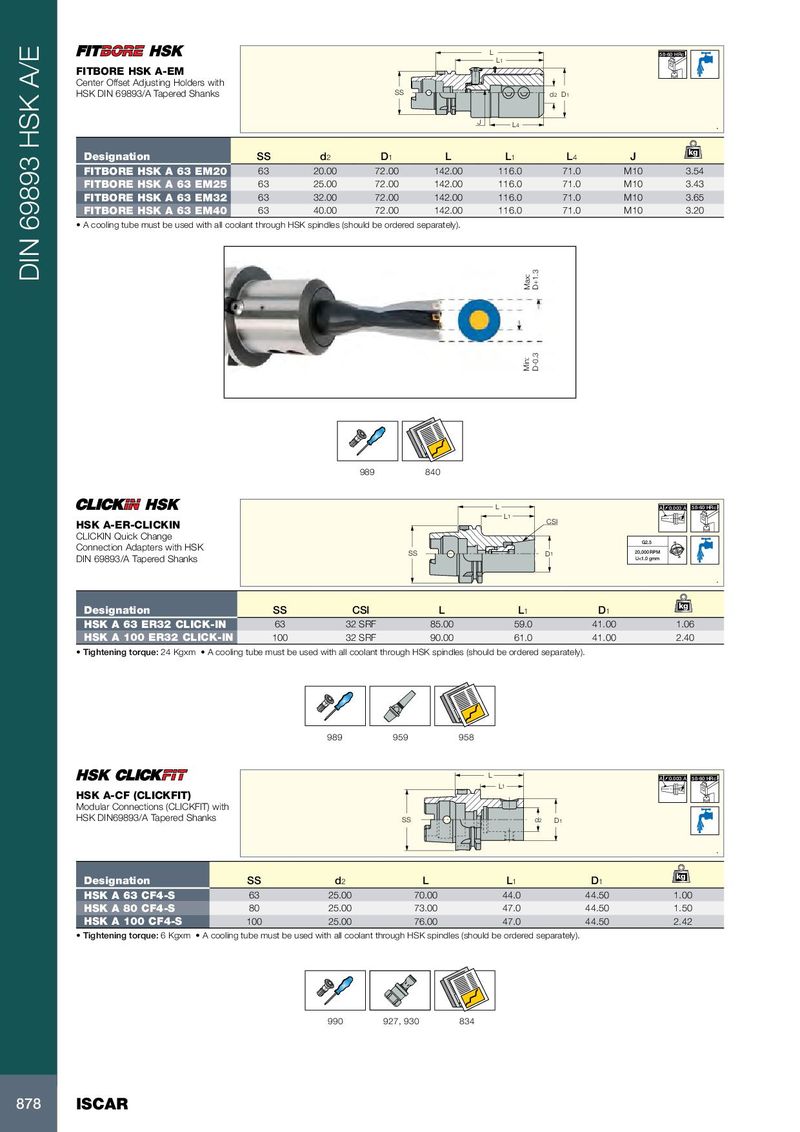

L 58-60 HRc L 1 FITBORE HSK A-EM Center Offset Adjusting Holders with HSK DIN 69893/A Tapered Shanks SS d 2 D 1 J L 4 . kg Designation SS d 2 D 1 L L 1 L 4 J FITBORE HSK A 63 EM20 63 20.00 72.00 142.00 116.0 71.0 M10 3.54 FITBORE HSK A 63 EM25 63 25.00 72.00 142.00 116.0 71.0 M10 3.43 FITBORE HSK A 63 EM32 63 32.00 72.00 142.00 116.0 71.0 M10 3.65 FITBORE HSK A 63 EM40 63 40.00 72.00 142.00 116.0 71.0 M10 3.20 • A cooling tube must be used with all coolant through HSK spindles (should be ordered separately). DIN 69893 HSK A/E Max: D+1.3 Min: D-0.3 989 840 L A 0.003 A 58-60 HRc L 1 CSI HSK A-ER-CLICKIN CLICKIN Quick Change G2.5 Connection Adapters with HSK SS D 1 20,000 RPM DIN 69893/A Tapered Shanks U<1.0 gmm . kg Designation SS CSI L L 1 D 1 HSK A 63 ER32 CLICK-IN 63 32 SRF 85.00 59.0 41.00 1.06 HSK A 100 ER32 CLICK-IN 100 32 SRF 90.00 61.0 41.00 2.40 • Tightening torque: 24 Kgxm • A cooling tube must be used with all coolant through HSK spindles (should be ordered separately). 989 959 958 L A 0.003 A 58-60 HRc L 1 HSK A-CF (CLICKFIT) Modular Connections (CLICKFIT) with HSK DIN69893/A Tapered Shanks SS d 2 D 1 . kg Designation SS d 2 L L 1 D 1 HSK A 63 CF4-S 63 25.00 70.00 44.0 44.50 1.00 HSK A 80 CF4-S 80 25.00 73.00 47.0 44.50 1.50 HSK A 100 CF4-S 100 25.00 76.00 47.0 44.50 2.42 • Tightening torque: 6 Kgxm • A cooling tube must be used with all coolant through HSK spindles (should be ordered separately). 990 927, 930 834 878 ISCAR
