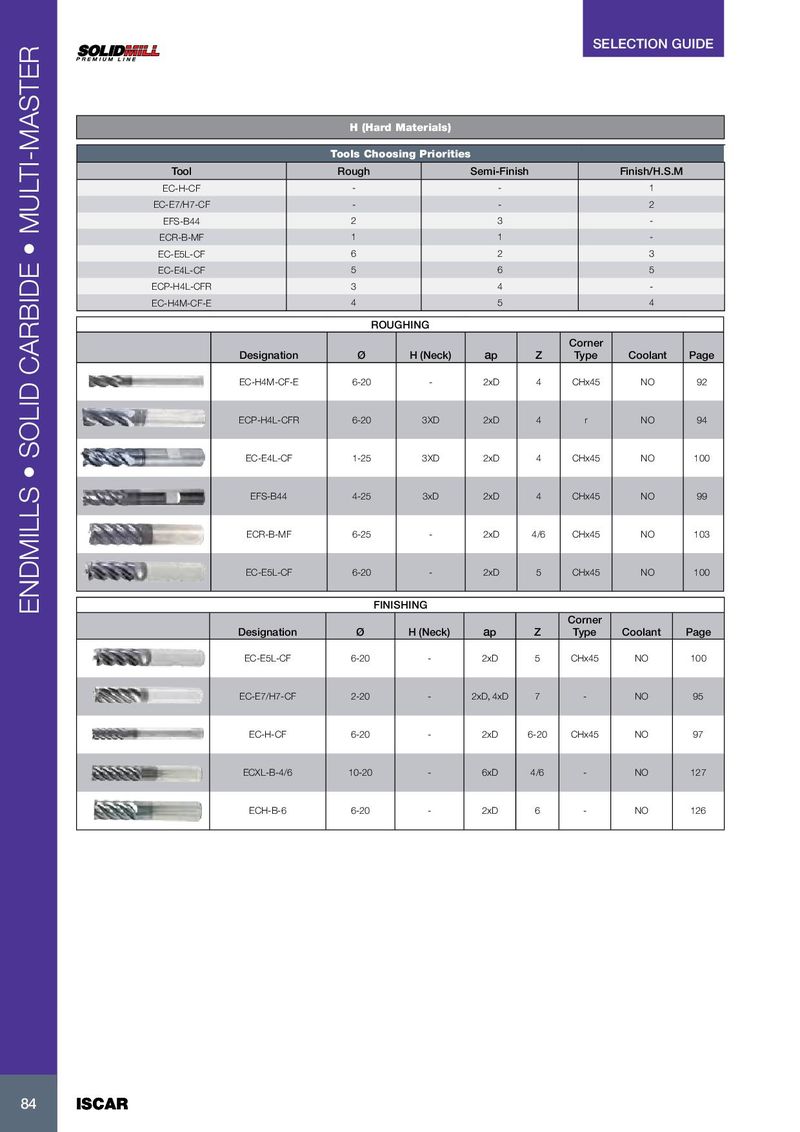

| H (Hard Mate | rials) | ||
| Tools Choosing | Priorities | ||
| Tool | Rough | Semi-Finish | Finish/H.S.M |
| EC-H-CF | - | - | 1 |
| EC-E7/H7-CF | - | - | 2 |
| EFS-B44 | 2 | 3 | - |
| ECR-B-MF | 1 | 1 | - |
| EC-E5L-CF | 6 | 2 | 3 |
| EC-E4L-CF | 5 | 6 | 5 |
| ECP-H4L-CFR | 3 | 4 | - |
| EC-H4M-CF-E | 4 | 5 | 4 |
| RO | UGHING | Corner | |||||
| Designation | Ø | H (Neck) | ap | Z | Type | Coolant | Page |
| EC-H4M-CF-E | 6-20 | - | 2xD | 4 | CHx45 | NO | 92 |
| ECP-H4L-CFR | 6-20 | 3XD | 2xD | 4 | r | NO | 94 |
| EC-E4L-CF | 1-25 | 3XD | 2xD | 4 | CHx45 | NO | 100 |
| EFS-B44 | 4-25 | 3xD | 2xD | 4 | CHx45 | NO | 99 |
| ECR-B-MF | 6-25 | - | 2xD | 4/6 | CHx45 | NO | 103 |
| EC-E5L-CF | 6-20 | - | 2xD | 5 | CHx45 | NO | 100 |
| FIN | ISHING | ||||||
| Corner | |||||||
| Designation | Ø | H (Neck) | ap | Z | Type | Coolant | Page |
| EC-E5L-CF | 6-20 | - | 2xD | 5 | CHx45 | NO | 100 |
| EC-E7/H7-CF | 2-20 | - | 2xD,4xD | 7 | - | NO | 95 |
| EC-H-CF | 6-20 | - | 2xD | 6-20 | CHx45 | NO | 97 |
| ECXL-B-4/6 | 10-20 | - | 6xD | 4/6 | - | NO | 127 |
| ECH-B-6 | 6-20 | - | 2xD | 6 | - | NO | 126 |
