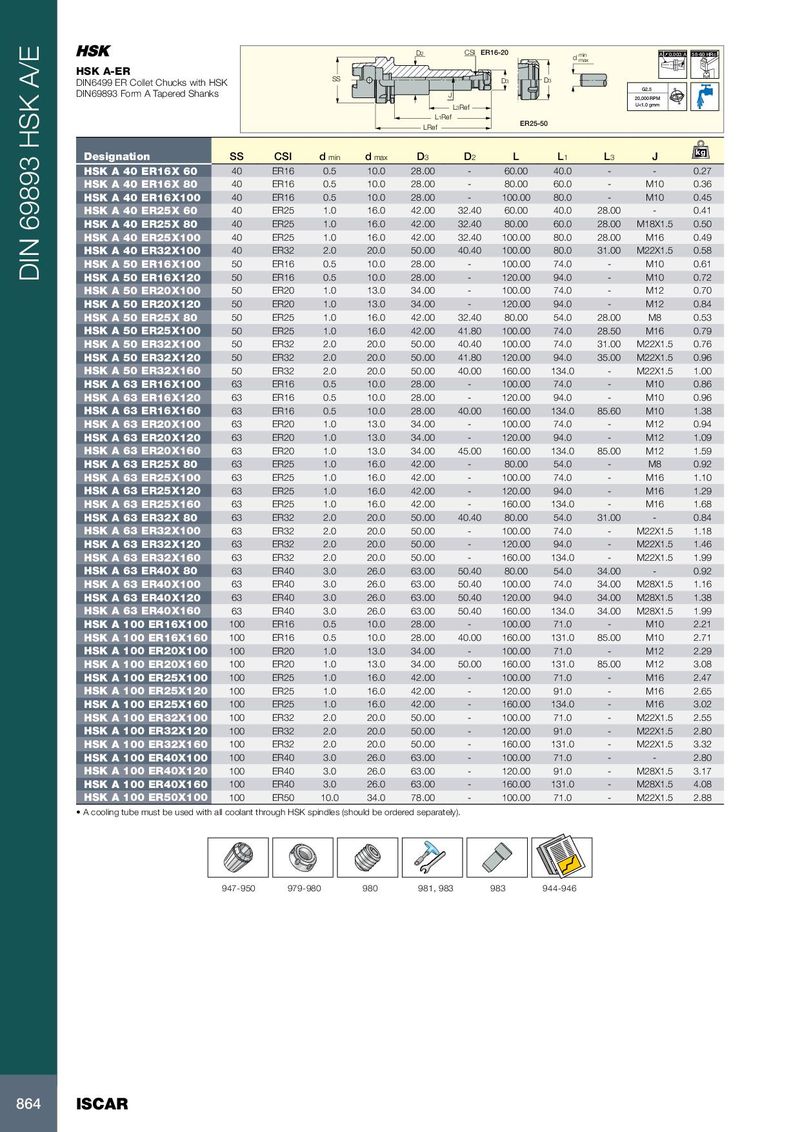

Каталог Iscar вращающийся инструмент 2017 - страница 868

D 2 CSI ER16-20 d min A 0.003 A 58-60 HRc max HSK A-ER SS DIN6499 ER Collet Chucks with HSK D 3 D 3 G2.5 DIN69893 Form A Tapered Shanks J 20,000 RPM L 3Ref U<1.0 gmm L 1Ref L Ref ER25-50 kg Designation SS CSI d min d max D 3 D 2 L L 1 L 3 J HSK A 40 ER16X 60 40 ER16 0.5 10.0 28.00 - 60.00 40.0 - - 0.27 HSK A 40 ER16X 80 40 ER16 0.5 10.0 28.00 - 80.00 60.0 - M10 0.36 HSK A 40 ER16X100 40 ER16 0.5 10.0 28.00 - 100.00 80.0 - M10 0.45 HSK A 40 ER25X 60 40 ER25 1.0 16.0 42.00 32.40 60.00 40.0 28.00 - 0.41 HSK A 40 ER25X 80 40 ER25 1.0 16.0 42.00 32.40 80.00 60.0 28.00 M18X1.5 0.50 HSK A 40 ER25X100 40 ER25 1.0 16.0 42.00 32.40 100.00 80.0 28.00 M16 0.49 HSK A 40 ER32X100 40 ER32 2.0 20.0 50.00 40.40 100.00 80.0 31.00 M22X1.5 0.58 HSK A 50 ER16X100 50 ER16 0.5 10.0 28.00 - 100.00 74.0 - M10 0.61 DIN 69893 HSK A/E HSK A 50 ER16X120 50 ER16 0.5 10.0 28.00 - 120.00 94.0 - M10 0.72 HSK A 50 ER20X100 50 ER20 1.0 13.0 34.00 - 100.00 74.0 - M12 0.70 HSK A 50 ER20X120 50 ER20 1.0 13.0 34.00 - 120.00 94.0 - M12 0.84 HSK A 50 ER25X 80 50 ER25 1.0 16.0 42.00 32.40 80.00 54.0 28.00 M8 0.53 HSK A 50 ER25X100 50 ER25 1.0 16.0 42.00 41.80 100.00 74.0 28.50 M16 0.79 HSK A 50 ER32X100 50 ER32 2.0 20.0 50.00 40.40 100.00 74.0 31.00 M22X1.5 0.76 HSK A 50 ER32X120 50 ER32 2.0 20.0 50.00 41.80 120.00 94.0 35.00 M22X1.5 0.96 HSK A 50 ER32X160 50 ER32 2.0 20.0 50.00 40.00 160.00 134.0 - M22X1.5 1.00 HSK A 63 ER16X100 63 ER16 0.5 10.0 28.00 - 100.00 74.0 - M10 0.86 HSK A 63 ER16X120 63 ER16 0.5 10.0 28.00 - 120.00 94.0 - M10 0.96 HSK A 63 ER16X160 63 ER16 0.5 10.0 28.00 40.00 160.00 134.0 85.60 M10 1.38 HSK A 63 ER20X100 63 ER20 1.0 13.0 34.00 - 100.00 74.0 - M12 0.94 HSK A 63 ER20X120 63 ER20 1.0 13.0 34.00 - 120.00 94.0 - M12 1.09 HSK A 63 ER20X160 63 ER20 1.0 13.0 34.00 45.00 160.00 134.0 85.00 M12 1.59 HSK A 63 ER25X 80 63 ER25 1.0 16.0 42.00 - 80.00 54.0 - M8 0.92 HSK A 63 ER25X100 63 ER25 1.0 16.0 42.00 - 100.00 74.0 - M16 1.10 HSK A 63 ER25X120 63 ER25 1.0 16.0 42.00 - 120.00 94.0 - M16 1.29 HSK A 63 ER25X160 63 ER25 1.0 16.0 42.00 - 160.00 134.0 - M16 1.68 HSK A 63 ER32X 80 63 ER32 2.0 20.0 50.00 40.40 80.00 54.0 31.00 - 0.84 HSK A 63 ER32X100 63 ER32 2.0 20.0 50.00 - 100.00 74.0 - M22X1.5 1.18 HSK A 63 ER32X120 63 ER32 2.0 20.0 50.00 - 120.00 94.0 - M22X1.5 1.46 HSK A 63 ER32X160 63 ER32 2.0 20.0 50.00 - 160.00 134.0 - M22X1.5 1.99 HSK A 63 ER40X 80 63 ER40 3.0 26.0 63.00 50.40 80.00 54.0 34.00 - 0.92 HSK A 63 ER40X100 63 ER40 3.0 26.0 63.00 50.40 100.00 74.0 34.00 M28X1.5 1.16 HSK A 63 ER40X120 63 ER40 3.0 26.0 63.00 50.40 120.00 94.0 34.00 M28X1.5 1.38 HSK A 63 ER40X160 63 ER40 3.0 26.0 63.00 50.40 160.00 134.0 34.00 M28X1.5 1.99 HSK A 100 ER16X100 100 ER16 0.5 10.0 28.00 - 100.00 71.0 - M10 2.21 HSK A 100 ER16X160 100 ER16 0.5 10.0 28.00 40.00 160.00 131.0 85.00 M10 2.71 HSK A 100 ER20X100 100 ER20 1.0 13.0 34.00 - 100.00 71.0 - M12 2.29 HSK A 100 ER20X160 100 ER20 1.0 13.0 34.00 50.00 160.00 131.0 85.00 M12 3.08 HSK A 100 ER25X100 100 ER25 1.0 16.0 42.00 - 100.00 71.0 - M16 2.47 HSK A 100 ER25X120 100 ER25 1.0 16.0 42.00 - 120.00 91.0 - M16 2.65 HSK A 100 ER25X160 100 ER25 1.0 16.0 42.00 - 160.00 134.0 - M16 3.02 HSK A 100 ER32X100 100 ER32 2.0 20.0 50.00 - 100.00 71.0 - M22X1.5 2.55 HSK A 100 ER32X120 100 ER32 2.0 20.0 50.00 - 120.00 91.0 - M22X1.5 2.80 HSK A 100 ER32X160 100 ER32 2.0 20.0 50.00 - 160.00 131.0 - M22X1.5 3.32 HSK A 100 ER40X100 100 ER40 3.0 26.0 63.00 - 100.00 71.0 - - 2.80 HSK A 100 ER40X120 100 ER40 3.0 26.0 63.00 - 120.00 91.0 - M28X1.5 3.17 HSK A 100 ER40X160 100 ER40 3.0 26.0 63.00 - 160.00 131.0 - M28X1.5 4.08 HSK A 100 ER50X100 100 ER50 10.0 34.0 78.00 - 100.00 71.0 - M22X1.5 2.88 • A cooling tube must be used with all coolant through HSK spindles (should be ordered separately). 947-950 979-980 980 981, 983 983 944-946 864 ISCAR
