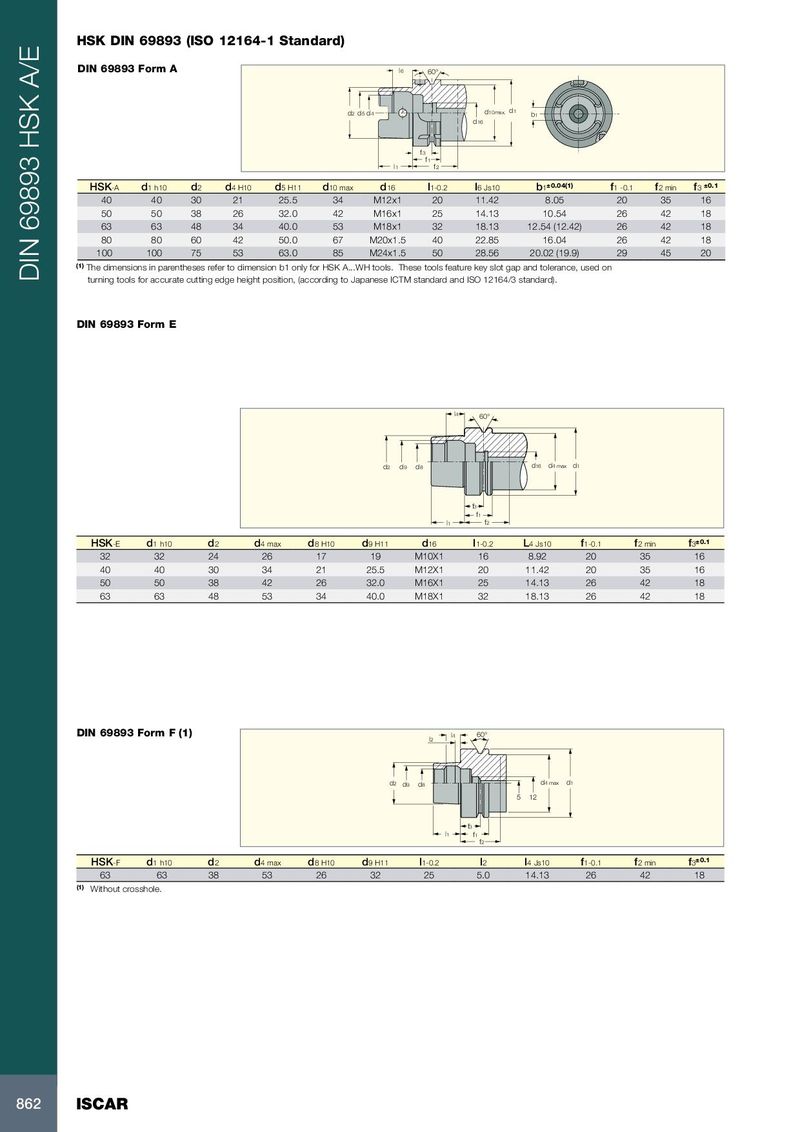

HSK DIN 69893 (ISO 12164-1 Standard) DIN 69893 Form A l 6 60° d2 d5 d4 d10 max. d1 b1 d16 f 3 f 1 l 1 f 2 HSK -A d 1 h10 d 2 d 4 H10 d 5 H11 d 10 max d 16 l 1-0.2 l 6 Js10 b 1 ±0.04(1) f 1 -0.1 f 2 min f 3 ±0.1 40 40 30 21 25.5 34 M12x1 20 11.42 8.05 20 35 16 50 50 38 26 32.0 42 M16x1 25 14.13 10.54 26 42 18 63 63 48 34 40.0 53 M18x1 32 18.13 12.54 (12.42) 26 42 18 80 80 60 42 50.0 67 M20x1.5 40 22.85 16.04 26 42 18 100 100 75 53 63.0 85 M24x1.5 50 28.56 20.02 (19.9) 29 45 20 (1) The dimensions in parentheses refer to dimension b1 only for HSK A...WH tools. These tools feature key slot gap and tolerance, used on DIN 69893 HSK A/E turning tools for accurate cutting edge height position, (according to Japanese ICTM standard and ISO 12164/3 standard). DIN 69893 Form E l4 60° d2 d9 d8 d16 d4 max d1 f3 f1 l1 f2 HSK -E d 1 h10 d 2 d 4 max d 8 H10 d 9 H11 d 16 l 1-0.2 L 4 Js10 f 1-0.1 f 2 min f 3 ±0.1 32 32 24 26 17 19 M10X1 16 8.92 20 35 16 40 40 30 34 21 25.5 M12X1 20 11.42 20 35 16 50 50 38 42 26 32.0 M16X1 25 14.13 26 42 18 63 63 48 53 34 40.0 M18X1 32 18.13 26 42 18 DIN 69893 Form F (1) l4 60° l2 d2 d9 d8 d4 max d1 5 12 f3 l1 f1 f2 HSK -F d 1 h10 d 2 d 4 max d 8 H10 d 9 H11 l 1-0.2 l 2 l 4 Js10 f 1-0.1 f 2 min f 3 ±0.1 63 63 38 53 26 32 25 5.0 14.13 26 42 18 (1) Without crosshole. 862 ISCAR
