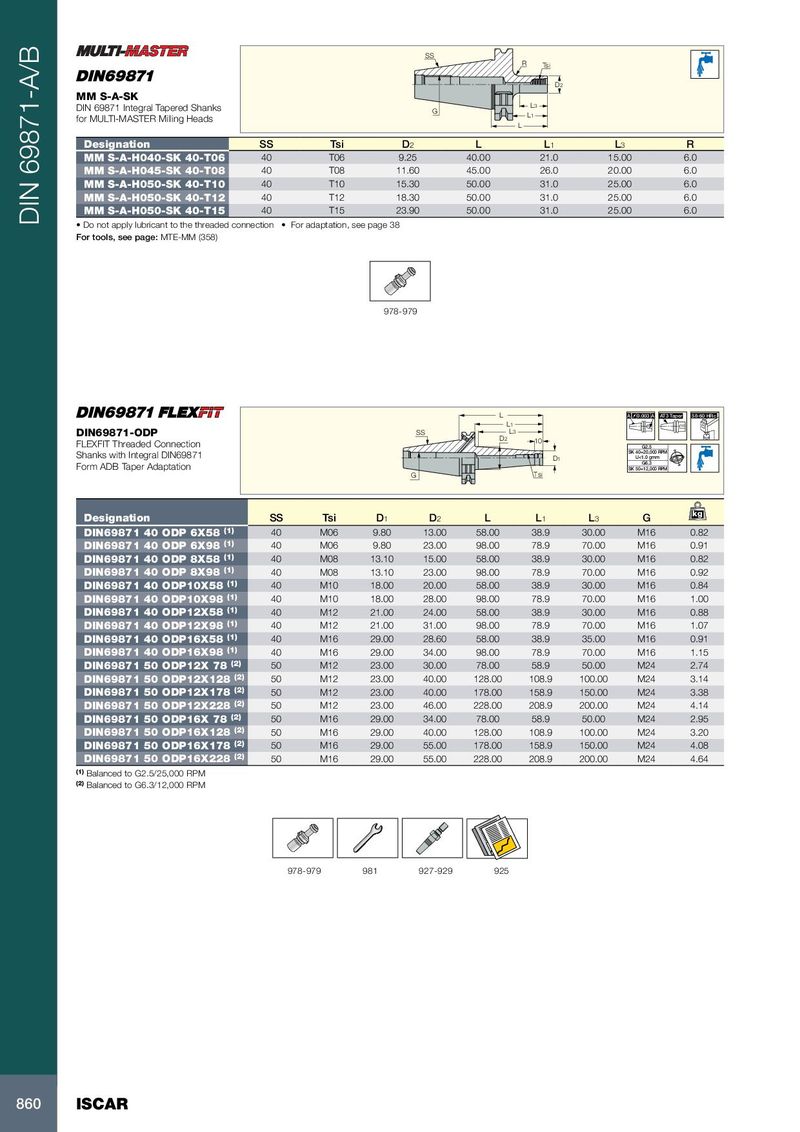

SS R Tsi D2 MM S-A-SK DIN 69871 Integral Tapered Shanks L3 G L1 for MULTI-MASTER Milling Heads L Designation SS Tsi D 2 L L 1 L 3 R MM S-A-H040-SK 40-T06 40 T06 9.25 40.00 21.0 15.00 6.0 MM S-A-H045-SK 40-T08 40 T08 11.60 45.00 26.0 20.00 6.0 MM S-A-H050-SK 40-T10 40 T10 15.30 50.00 31.0 25.00 6.0 MM S-A-H050-SK 40-T12 40 T12 18.30 50.00 31.0 25.00 6.0 MM S-A-H050-SK 40-T15 40 T15 23.90 50.00 31.0 25.00 6.0 DIN 69871-A/B • Do not apply lubricant to the threaded connection • For adaptation, see page 38 For tools, see page: MTE-MM (358) 978-979 L A 0.003 A AT3 Taper 58-60 HRc L1 DIN69871-ODP SS L3 D2 FLEXFIT Threaded Connection 10 G2.5 SK 40=20,000 RPM Shanks with Integral DIN69871 D1 U<1.0 gmm G6.3 Form ADB Taper Adaptation SK 50=12,000 RPM G Tsi kg Designation SS Tsi D 1 D 2 L L 1 L 3 G DIN69871 40 ODP 6X58 (1) 40 M06 9.80 13.00 58.00 38.9 30.00 M16 0.82 DIN69871 40 ODP 6X98 (1) 40 M06 9.80 23.00 98.00 78.9 70.00 M16 0.91 DIN69871 40 ODP 8X58 (1) 40 M08 13.10 15.00 58.00 38.9 30.00 M16 0.82 DIN69871 40 ODP 8X98 (1) 40 M08 13.10 23.00 98.00 78.9 70.00 M16 0.92 DIN69871 40 ODP10X58 (1) 40 M10 18.00 20.00 58.00 38.9 30.00 M16 0.84 DIN69871 40 ODP10X98 (1) 40 M10 18.00 28.00 98.00 78.9 70.00 M16 1.00 DIN69871 40 ODP12X58 (1) 40 M12 21.00 24.00 58.00 38.9 30.00 M16 0.88 DIN69871 40 ODP12X98 (1) 40 M12 21.00 31.00 98.00 78.9 70.00 M16 1.07 DIN69871 40 ODP16X58 (1) 40 M16 29.00 28.60 58.00 38.9 35.00 M16 0.91 DIN69871 40 ODP16X98 (1) 40 M16 29.00 34.00 98.00 78.9 70.00 M16 1.15 DIN69871 50 ODP12X 78 (2) 50 M12 23.00 30.00 78.00 58.9 50.00 M24 2.74 DIN69871 50 ODP12X128 (2) 50 M12 23.00 40.00 128.00 108.9 100.00 M24 3.14 DIN69871 50 ODP12X178 (2) 50 M12 23.00 40.00 178.00 158.9 150.00 M24 3.38 DIN69871 50 ODP12X228 (2) 50 M12 23.00 46.00 228.00 208.9 200.00 M24 4.14 DIN69871 50 ODP16X 78 (2) 50 M16 29.00 34.00 78.00 58.9 50.00 M24 2.95 DIN69871 50 ODP16X128 (2) 50 M16 29.00 40.00 128.00 108.9 100.00 M24 3.20 DIN69871 50 ODP16X178 (2) 50 M16 29.00 55.00 178.00 158.9 150.00 M24 4.08 DIN69871 50 ODP16X228 (2) 50 M16 29.00 55.00 228.00 208.9 200.00 M24 4.64 (1) Balanced to G2.5/25,000 RPM (2) Balanced to G6.3/12,000 RPM 978-979 981 927-929 925 860 ISCAR
