Каталог Iscar вращающийся инструмент 2017 - страница 856

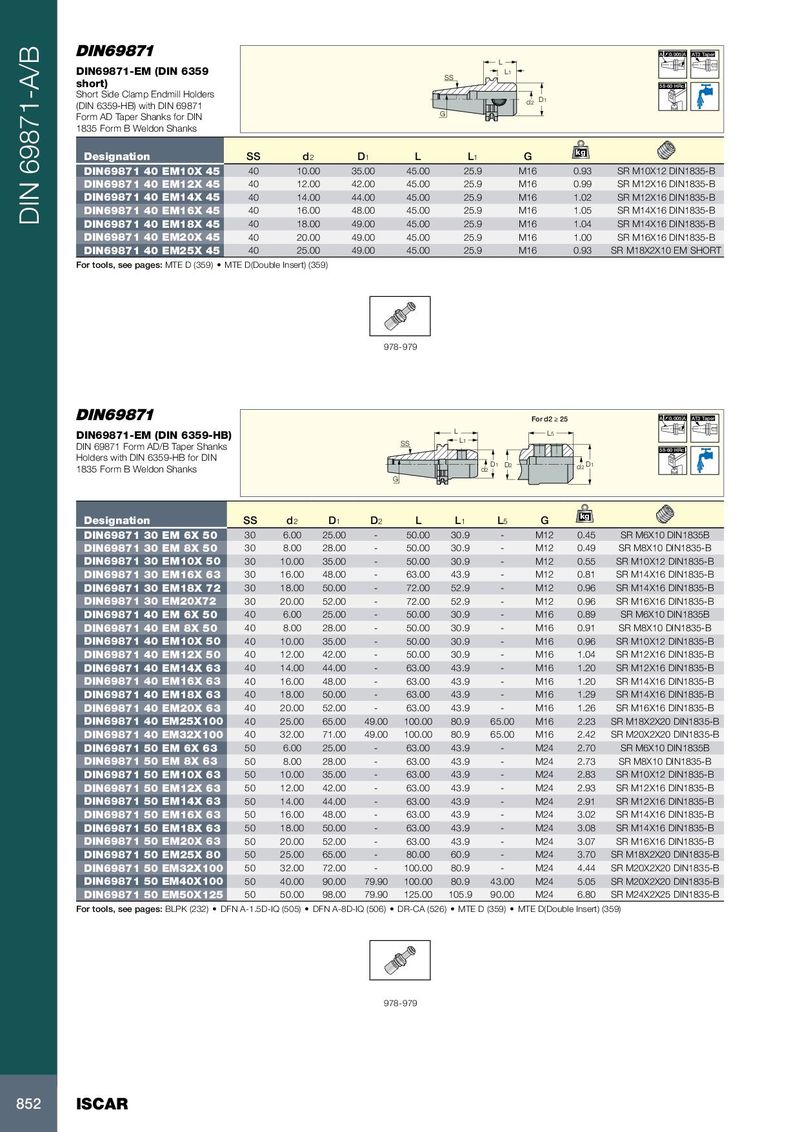

A 0.005 A AT3 Taper L DIN69871-EM (DIN 6359 L1 SS short) 58-60 HRc Short Side Clamp Endmill Holders d2 D1 (DIN 6359-HB) with DIN 69871 Form AD Taper Shanks for DIN G 1835 Form B Weldon Shanks kg Designation SS d 2 D 1 L L 1 G DIN69871 40 EM10X 45 40 10.00 35.00 45.00 25.9 M16 0.93 SR M10X12 DIN1835-B DIN69871 40 EM12X 45 40 12.00 42.00 45.00 25.9 M16 0.99 SR M12X16 DIN1835-B DIN69871 40 EM14X 45 40 14.00 44.00 45.00 25.9 M16 1.02 SR M12X16 DIN1835-B DIN69871 40 EM16X 45 40 16.00 48.00 45.00 25.9 M16 1.05 SR M14X16 DIN1835-B DIN 69871-A/B DIN69871 40 EM18X 45 40 18.00 49.00 45.00 25.9 M16 1.04 SR M14X16 DIN1835-B DIN69871 40 EM20X 45 40 20.00 49.00 45.00 25.9 M16 1.00 SR M16X16 DIN1835-B DIN69871 40 EM25X 45 40 25.00 49.00 45.00 25.9 M16 0.93 SR M18X2X10 EM SHORT For tools, see pages: MTE D (359) • MTE D(Double Insert) (359) 978-979 For d2 ≥ 25 A 0.005 A AT3 Taper L DIN69871-EM (DIN 6359-HB) L5 DIN 69871 Form AD/B Taper Shanks SS L1 58-60 HRc Holders with DIN 6359-HB for DIN D1 D2 1835 Form B Weldon Shanks d2 d2 D1 G kg Designation SS d 2 D 1 D 2 L L 1 L 5 G DIN69871 30 EM 6X 50 30 6.00 25.00 - 50.00 30.9 - M12 0.45 SR M6X10 DIN1835B DIN69871 30 EM 8X 50 30 8.00 28.00 - 50.00 30.9 - M12 0.49 SR M8X10 DIN1835-B DIN69871 30 EM10X 50 30 10.00 35.00 - 50.00 30.9 - M12 0.55 SR M10X12 DIN1835-B DIN69871 30 EM16X 63 30 16.00 48.00 - 63.00 43.9 - M12 0.81 SR M14X16 DIN1835-B DIN69871 30 EM18X 72 30 18.00 50.00 - 72.00 52.9 - M12 0.96 SR M14X16 DIN1835-B DIN69871 30 EM20X72 30 20.00 52.00 - 72.00 52.9 - M12 0.96 SR M16X16 DIN1835-B DIN69871 40 EM 6X 50 40 6.00 25.00 - 50.00 30.9 - M16 0.89 SR M6X10 DIN1835B DIN69871 40 EM 8X 50 40 8.00 28.00 - 50.00 30.9 - M16 0.91 SR M8X10 DIN1835-B DIN69871 40 EM10X 50 40 10.00 35.00 - 50.00 30.9 - M16 0.96 SR M10X12 DIN1835-B DIN69871 40 EM12X 50 40 12.00 42.00 - 50.00 30.9 - M16 1.04 SR M12X16 DIN1835-B DIN69871 40 EM14X 63 40 14.00 44.00 - 63.00 43.9 - M16 1.20 SR M12X16 DIN1835-B DIN69871 40 EM16X 63 40 16.00 48.00 - 63.00 43.9 - M16 1.20 SR M14X16 DIN1835-B DIN69871 40 EM18X 63 40 18.00 50.00 - 63.00 43.9 - M16 1.29 SR M14X16 DIN1835-B DIN69871 40 EM20X 63 40 20.00 52.00 - 63.00 43.9 - M16 1.26 SR M16X16 DIN1835-B DIN69871 40 EM25X100 40 25.00 65.00 49.00 100.00 80.9 65.00 M16 2.23 SR M18X2X20 DIN1835-B DIN69871 40 EM32X100 40 32.00 71.00 49.00 100.00 80.9 65.00 M16 2.42 SR M20X2X20 DIN1835-B DIN69871 50 EM 6X 63 50 6.00 25.00 - 63.00 43.9 - M24 2.70 SR M6X10 DIN1835B DIN69871 50 EM 8X 63 50 8.00 28.00 - 63.00 43.9 - M24 2.73 SR M8X10 DIN1835-B DIN69871 50 EM10X 63 50 10.00 35.00 - 63.00 43.9 - M24 2.83 SR M10X12 DIN1835-B DIN69871 50 EM12X 63 50 12.00 42.00 - 63.00 43.9 - M24 2.93 SR M12X16 DIN1835-B DIN69871 50 EM14X 63 50 14.00 44.00 - 63.00 43.9 - M24 2.91 SR M12X16 DIN1835-B DIN69871 50 EM16X 63 50 16.00 48.00 - 63.00 43.9 - M24 3.02 SR M14X16 DIN1835-B DIN69871 50 EM18X 63 50 18.00 50.00 - 63.00 43.9 - M24 3.08 SR M14X16 DIN1835-B DIN69871 50 EM20X 63 50 20.00 52.00 - 63.00 43.9 - M24 3.07 SR M16X16 DIN1835-B DIN69871 50 EM25X 80 50 25.00 65.00 - 80.00 60.9 - M24 3.70 SR M18X2X20 DIN1835-B DIN69871 50 EM32X100 50 32.00 72.00 - 100.00 80.9 - M24 4.44 SR M20X2X20 DIN1835-B DIN69871 50 EM40X100 50 40.00 90.00 79.90 100.00 80.9 43.00 M24 5.05 SR M20X2X20 DIN1835-B DIN69871 50 EM50X125 50 50.00 98.00 79.90 125.00 105.9 90.00 M24 6.80 SR M24X2X25 DIN1835-B For tools, see pages: BLPK (232) • DFN A-1.5D-IQ (505) • DFN A-8D-IQ (506) • DR-CA (526) • MTE D (359) • MTE D(Double Insert) (359) 978-979 852 ISCAR
