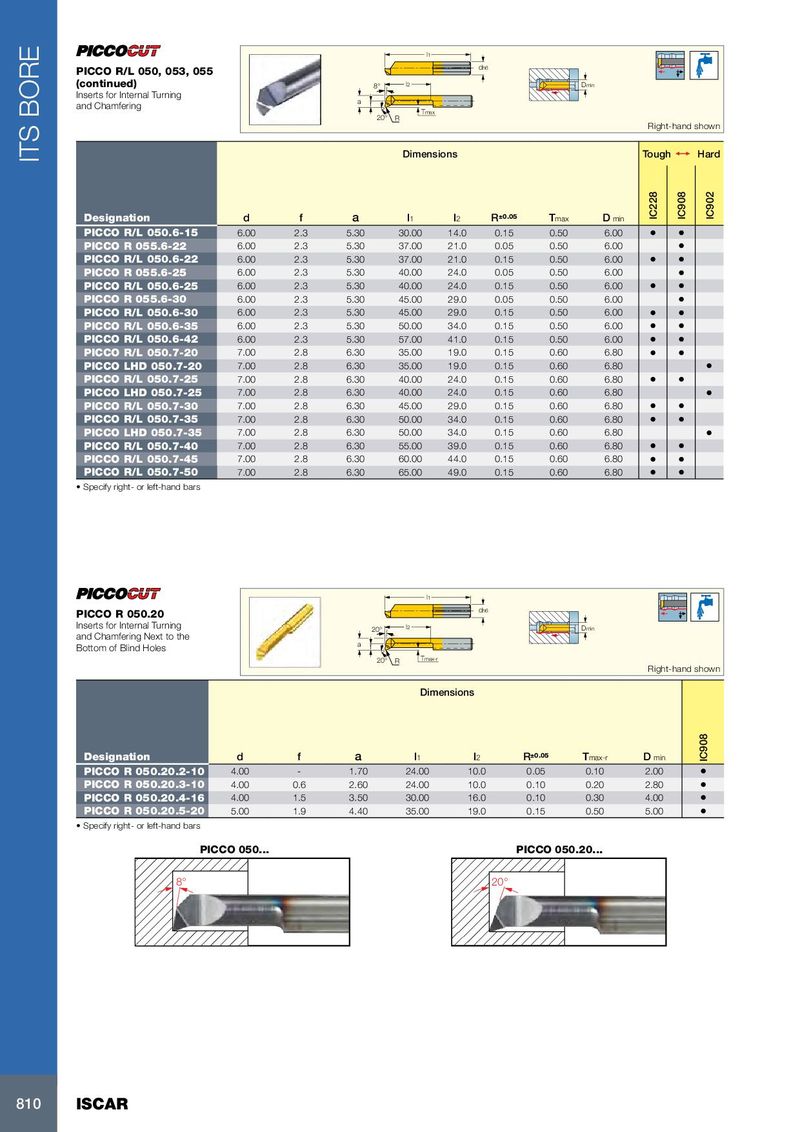

l1 dh6 PICCO R/L 050, 053, 055 (continued) 8° l2 Dmin Inserts for Internal Turning a and Chamfering f Tmax 20° R Right-hand shown Dimensions Tough 1  Hard ITS BORE Designation d f a l 1 l 2 R ±0.05 T max D min IC228 IC908 IC902 PICCO R/L 050.6-15 6.00 2.3 5.30 30.00 14.0 0.15 0.50 6.00 • • PICCO R 055.6-22 6.00 2.3 5.30 37.00 21.0 0.05 0.50 6.00 • PICCO R/L 050.6-22 6.00 2.3 5.30 37.00 21.0 0.15 0.50 6.00 • • PICCO R 055.6-25 6.00 2.3 5.30 40.00 24.0 0.05 0.50 6.00 • PICCO R/L 050.6-25 6.00 2.3 5.30 40.00 24.0 0.15 0.50 6.00 • • PICCO R 055.6-30 6.00 2.3 5.30 45.00 29.0 0.05 0.50 6.00 • PICCO R/L 050.6-30 6.00 2.3 5.30 45.00 29.0 0.15 0.50 6.00 • • PICCO R/L 050.6-35 6.00 2.3 5.30 50.00 34.0 0.15 0.50 6.00 • • PICCO R/L 050.6-42 6.00 2.3 5.30 57.00 41.0 0.15 0.50 6.00 • • PICCO R/L 050.7-20 7.00 2.8 6.30 35.00 19.0 0.15 0.60 6.80 • • PICCO LHD 050.7-20 7.00 2.8 6.30 35.00 19.0 0.15 0.60 6.80 • PICCO R/L 050.7-25 7.00 2.8 6.30 40.00 24.0 0.15 0.60 6.80 • • PICCO LHD 050.7-25 7.00 2.8 6.30 40.00 24.0 0.15 0.60 6.80 • PICCO R/L 050.7-30 7.00 2.8 6.30 45.00 29.0 0.15 0.60 6.80 • • PICCO R/L 050.7-35 7.00 2.8 6.30 50.00 34.0 0.15 0.60 6.80 • • PICCO LHD 050.7-35 7.00 2.8 6.30 50.00 34.0 0.15 0.60 6.80 • PICCO R/L 050.7-40 7.00 2.8 6.30 55.00 39.0 0.15 0.60 6.80 • • PICCO R/L 050.7-45 7.00 2.8 6.30 60.00 44.0 0.15 0.60 6.80 • • PICCO R/L 050.7-50 7.00 2.8 6.30 65.00 49.0 0.15 0.60 6.80 • • • Specify right- or left-hand bars l1 dh6 PICCO R 050.20 Inserts for Internal Turning 20° l2 Dmin and Chamfering Next to the a Bottom of Blind Holes f 20° R Tmax-r Right-hand shown Dimensions Designation d f a l 1 l 2 R ±0.05 T max-r D min IC908 PICCO R 050.20.2-10 4.00 - 1.70 24.00 10.0 0.05 0.10 2.00 • PICCO R 050.20.3-10 4.00 0.6 2.60 24.00 10.0 0.10 0.20 2.80 • PICCO R 050.20.4-16 4.00 1.5 3.50 30.00 16.0 0.10 0.30 4.00 • PICCO R 050.20.5-20 5.00 1.9 4.40 35.00 19.0 0.15 0.50 5.00 • • Specify right- or left-hand bars PICCO 050... PICCO 050.20... 8° 20° 810 ISCAR
