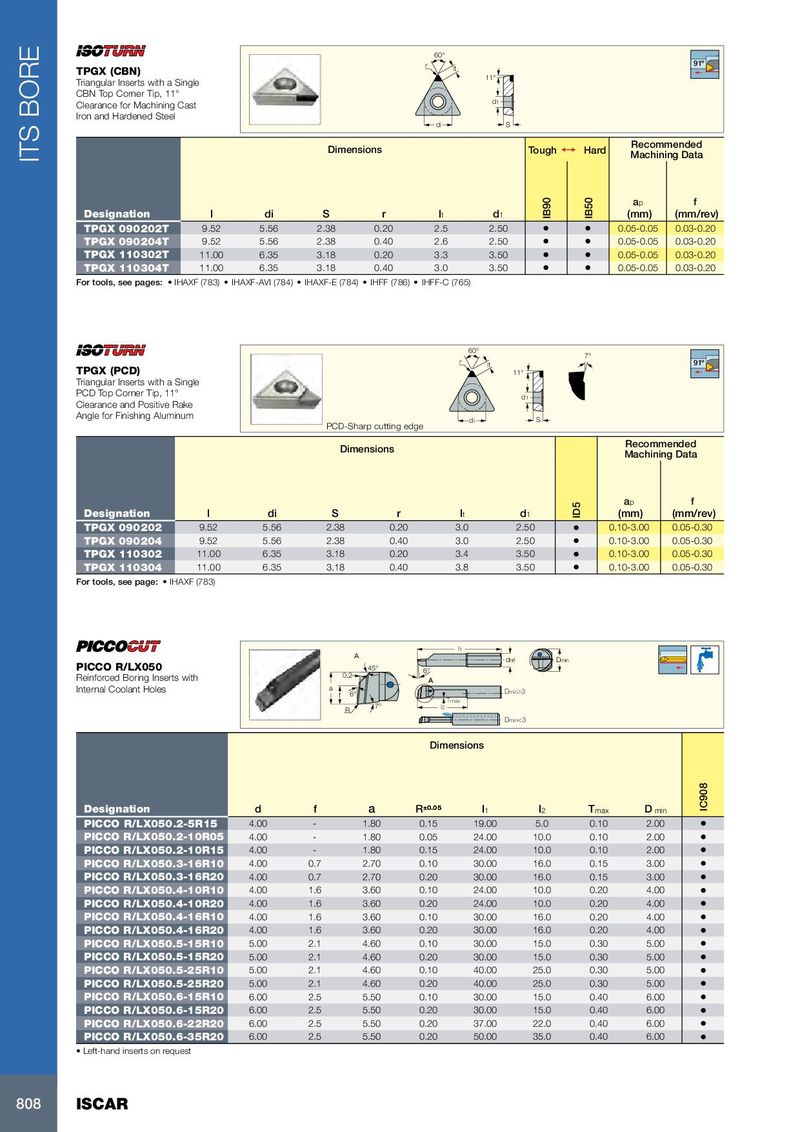

60 ° r 91º TPGX (CBN) lt 11 ° Triangular Inserts with a Single CBN Top Corner Tip, 11° d1 Clearance for Machining Cast Iron and Hardened Steel di S Recommended Dimensions Tough 1  Hard Machining Data ITS BORE a p f Designation l di S r l t d 1 IB90 IB50 (mm) (mm/rev) TPGX 090202T 9.52 5.56 2.38 0.20 2.5 2.50 • • 0.05-0.05 0.03-0.20 TPGX 090204T 9.52 5.56 2.38 0.40 2.6 2.50 • • 0.05-0.05 0.03-0.20 TPGX 110302T 11.00 6.35 3.18 0.20 3.3 3.50 • • 0.05-0.05 0.03-0.20 TPGX 110304T 11.00 6.35 3.18 0.40 3.0 3.50 • • 0.05-0.05 0.03-0.20 For tools, see pages: • IHAXF (783) • IHAXF-AVI (784) • IHAXF-E (784) • IHFF (786) • IHFF-C (765) 60 ° 7 ° r lt 91º TPGX (PCD) 11 ° Triangular Inserts with a Single PCD Top Corner Tip, 11° d1 Clearance and Positive Rake Angle for Finishing Aluminum di S PCD-Sharp cutting edge Recommended Dimensions Machining Data a p f Designation l di S r l t d 1 ID5 (mm) (mm/rev) TPGX 090202 9.52 5.56 2.38 0.20 3.0 2.50 • 0.10-3.00 0.05-0.30 TPGX 090204 9.52 5.56 2.38 0.40 3.0 2.50 • 0.10-3.00 0.05-0.30 TPGX 110302 11.00 6.35 3.18 0.20 3.4 3.50 • 0.10-3.00 0.05-0.30 TPGX 110304 11.00 6.35 3.18 0.40 3.8 3.50 • 0.10-3.00 0.05-0.30 For tools, see page: • IHAXF (783) l1 A dh6 Dmin PICCO R/LX050 45° 6° Reinforced Boring Inserts with 0.2 A Internal Coolant Holes a f 6° Dmin≥3 Tmax R 7° l2 Dmin<3 Dimensions Designation d f a R ±0.05 l 1 l 2 T max D min IC908 PICCO R/LX050.2-5R15 4.00 - 1.80 0.15 19.00 5.0 0.10 2.00 • PICCO R/LX050.2-10R05 4.00 - 1.80 0.05 24.00 10.0 0.10 2.00 • PICCO R/LX050.2-10R15 4.00 - 1.80 0.15 24.00 10.0 0.10 2.00 • PICCO R/LX050.3-16R10 4.00 0.7 2.70 0.10 30.00 16.0 0.15 3.00 • PICCO R/LX050.3-16R20 4.00 0.7 2.70 0.20 30.00 16.0 0.15 3.00 • PICCO R/LX050.4-10R10 4.00 1.6 3.60 0.10 24.00 10.0 0.20 4.00 • PICCO R/LX050.4-10R20 4.00 1.6 3.60 0.20 24.00 10.0 0.20 4.00 • PICCO R/LX050.4-16R10 4.00 1.6 3.60 0.10 30.00 16.0 0.20 4.00 • PICCO R/LX050.4-16R20 4.00 1.6 3.60 0.20 30.00 16.0 0.20 4.00 • PICCO R/LX050.5-15R10 5.00 2.1 4.60 0.10 30.00 15.0 0.30 5.00 • PICCO R/LX050.5-15R20 5.00 2.1 4.60 0.20 30.00 15.0 0.30 5.00 • PICCO R/LX050.5-25R10 5.00 2.1 4.60 0.10 40.00 25.0 0.30 5.00 • PICCO R/LX050.5-25R20 5.00 2.1 4.60 0.20 40.00 25.0 0.30 5.00 • PICCO R/LX050.6-15R10 6.00 2.5 5.50 0.10 30.00 15.0 0.40 6.00 • PICCO R/LX050.6-15R20 6.00 2.5 5.50 0.20 30.00 15.0 0.40 6.00 • PICCO R/LX050.6-22R20 6.00 2.5 5.50 0.20 37.00 22.0 0.40 6.00 • PICCO R/LX050.6-35R20 6.00 2.5 5.50 0.20 50.00 35.0 0.40 6.00 • • Left-hand inserts on request 808 ISCAR
