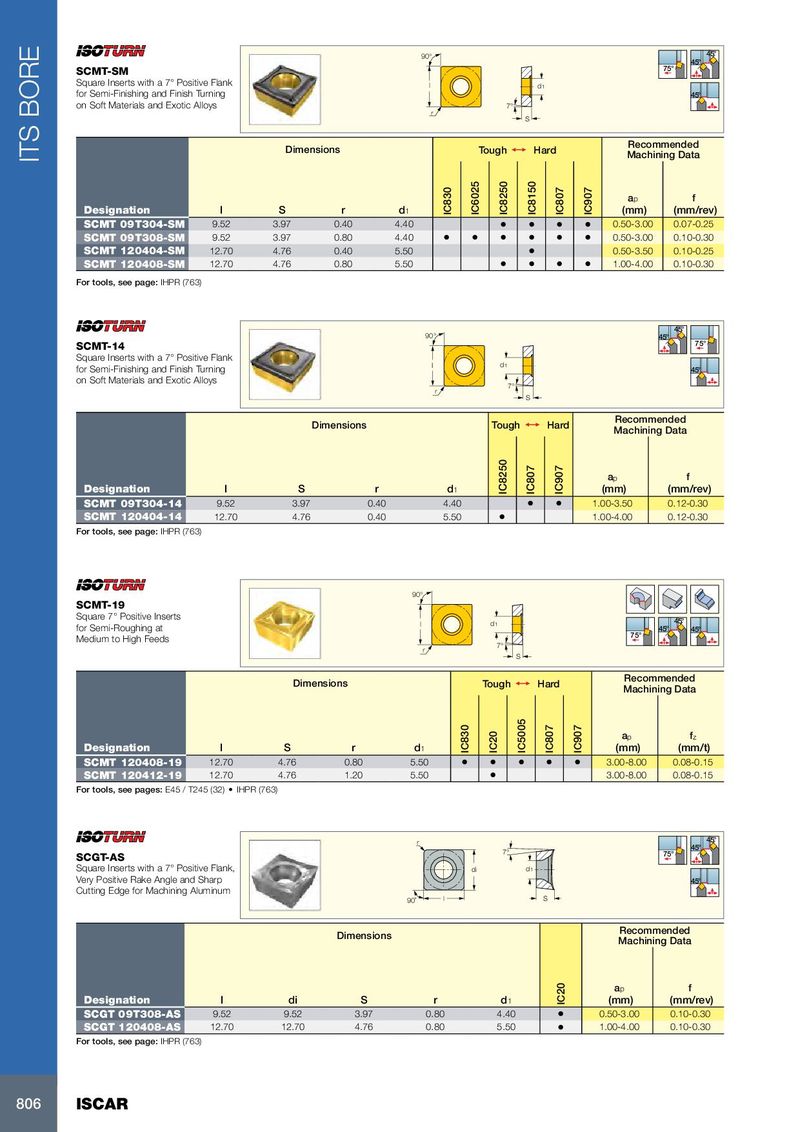

90° 45° 45° 75° SCMT-SM Square Inserts with a 7° Positive Flank l d 1 for Semi-Finishing and Finish Turning 45° on Soft Materials and Exotic Alloys 7° r S Recommended Dimensions Tough 1  Hard Machining Data ITS BORE a p f Designation l S r d 1 IC830 IC6025 IC8250 IC8150 IC807 IC907 (mm) (mm/rev) SCMT 09T304-SM 9.52 3.97 0.40 4.40 • • • • 0.50-3.00 0.07-0.25 SCMT 09T308-SM 9.52 3.97 0.80 4.40 • • • • • • 0.50-3.00 0.10-0.30 SCMT 120404-SM 12.70 4.76 0.40 5.50 • 0.50-3.50 0.10-0.25 SCMT 120408-SM 12.70 4.76 0.80 5.50 • • • • 1.00-4.00 0.10-0.30 For tools, see page: IHPR (763) 45° 90° 45° 75° SCMT-14 Square Inserts with a 7° Positive Flank I d 1 for Semi-Finishing and Finish Turning 45° on Soft Materials and Exotic Alloys 7° r S Recommended Dimensions Tough 1  Hard Machining Data a p f Designation l S r d 1 IC8250 IC807 IC907 (mm) (mm/rev) SCMT 09T304-14 9.52 3.97 0.40 4.40 • • 1.00-3.50 0.12-0.30 SCMT 120404-14 12.70 4.76 0.40 5.50 • 1.00-4.00 0.12-0.30 For tools, see page: IHPR (763) 90° SCMT-19 Square 7° Positive Inserts l d 1 45° for Semi-Roughing at 45° 45° 75° Medium to High Feeds r 7° S Recommended Dimensions Tough 1  Hard Machining Data a p f z Designation l S r d 1 IC830 IC20 IC5005 IC807 IC907 (mm) (mm/t) SCMT 120408-19 12.70 4.76 0.80 5.50 • • • • • 3.00-8.00 0.08-0.15 SCMT 120412-19 12.70 4.76 1.20 5.50 • 3.00-8.00 0.08-0.15 For tools, see pages: E45 / T245 (32) • IHPR (763) r 45° 45° 7° 75° SCGT-AS Square Inserts with a 7° Positive Flank, di d 1 Very Positive Rake Angle and Sharp 45° Cutting Edge for Machining Aluminum 90˚ l S Recommended Dimensions Machining Data a p f Designation l di S r d 1 IC20 (mm) (mm/rev) SCGT 09T308-AS 9.52 9.52 3.97 0.80 4.40 • 0.50-3.00 0.10-0.30 SCGT 120408-AS 12.70 12.70 4.76 0.80 5.50 • 1.00-4.00 0.10-0.30 For tools, see page: IHPR (763) 806 ISCAR
