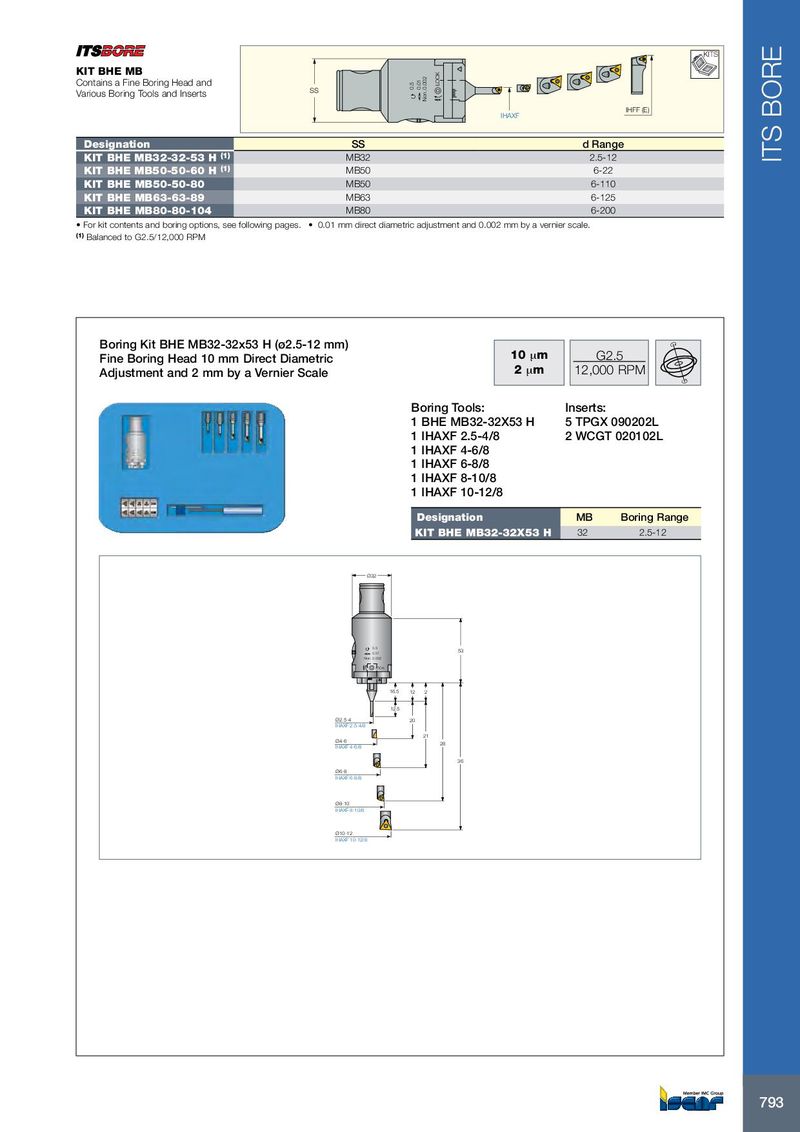

KITS KIT BHE MB Contains a Fine Boring Head and SS 0.5 0.01 LOCK Various Boring Tools and Inserts Non. 0.002 IHFF (E) IHAXF Designation SS d Range KIT BHE MB32-32-53 H (1) MB32 2.5-12 ITS BORE KIT BHE MB50-50-60 H (1) MB50 6-22 KIT BHE MB50-50-80 MB50 6-110 KIT BHE MB63-63-89 MB63 6-125 KIT BHE MB80-80-104 MB80 6-200 • For kit contents and boring options, see following pages. • 0.01 mm direct diametric adjustment and 0.002 mm by a vernier scale. (1) Balanced to G2.5/12,000 RPM Boring Kit BHE MB32-32x53 H (ø2.5-12 mm) 10 µm Fine Boring Head 10 mm Direct Diametric G2.5 Adjustment and 2 mm by a Vernier Scale 2 µm 12,000 RPM Boring Tools: Inserts: 1 BHE MB32-32X53 H 5 TPGX 090202L 1 IHAXF 2.5-4/8 2 WCGT 020102L 1 IHAXF 4-6/8 1 IHAXF 6-8/8 1 IHAXF 8-10/8 1 IHAXF 10-12/8 Designation MB Boring Range KIT BHE MB32-32X53 H 32 2.5-12 Ø32 0.5 0.01 53 Non. 0.002 LOCK 16.5 12 2 12.5 Ø2.5-4 20 IHAXF 2.5-4/8 21 Ø4-6 IHAXF 4-6/8 28 36 Ø6-8 IHAXF 6-8/8 Ø8-10 IHAXF 8-10/8 Ø10-12 IHAXF 10-12/8 793
