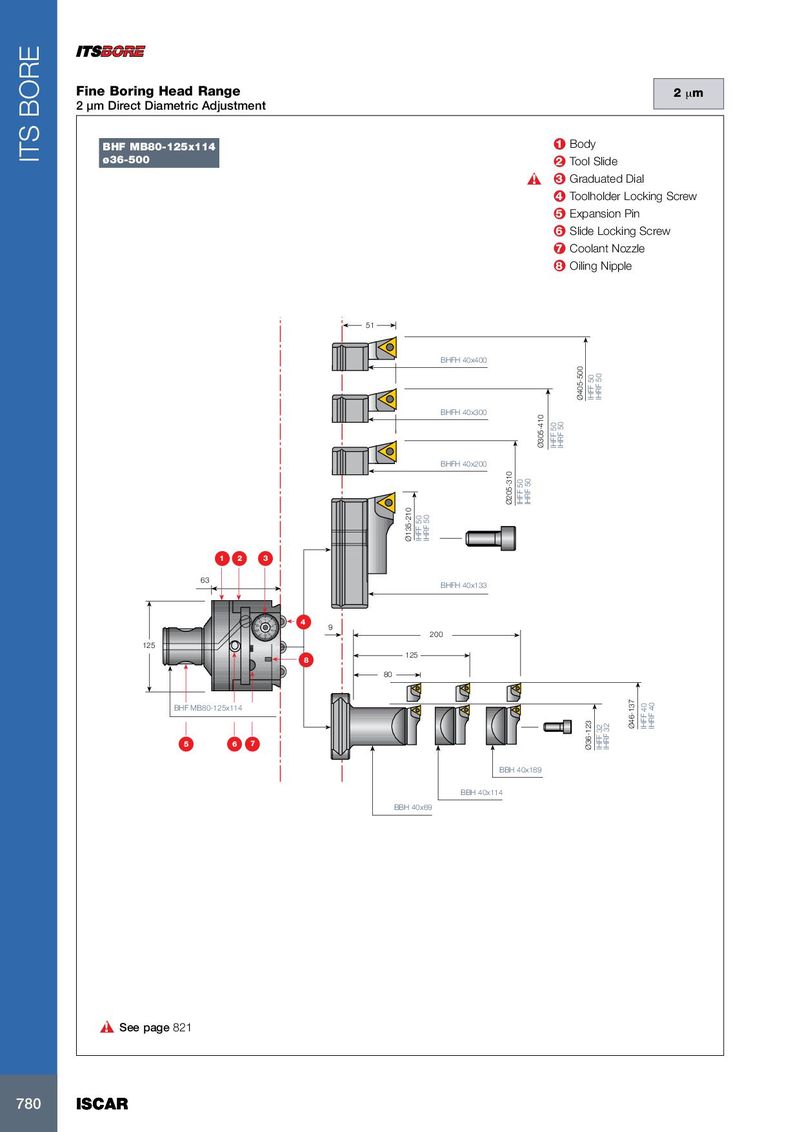

Fine Boring Head Range 2 µm 2 µm Direct Diametric Adjustment BHF MB80-125x114 1 Body ITS BORE ø36-500 2 Tool Slide ▲ ! 3 Graduated Dial 4 Toolholder Locking Screw 5 Expansion Pin 6 Slide Locking Screw 7 Coolant Nozzle 8 Oiling Nipple 51 BHFH 40x400 Ø405-500 IHFF 50 IHRF 50 BHFH 40x300 Ø305-410 IHFF 50 IHRF 50 BHFH 40x200 Ø205-310 IHFF 50 IHRF 50 Ø135-210 IHFF 50 IHRF 50 1 2 3 63 BHFH 40x133 1 2 9 0 3 4 8 7 6 5 4 9 200 125 125 8 80 BHF MB80-125x114 Ø46-137 IHFF 40 IHRF 40 5 6 7 Ø36-123 IHFF 32 IHRF 32 BBH 40x189 BBH 40x114 BBH 40x69 ▲ ! See page 821 780 780 ISCAR ISCAR
