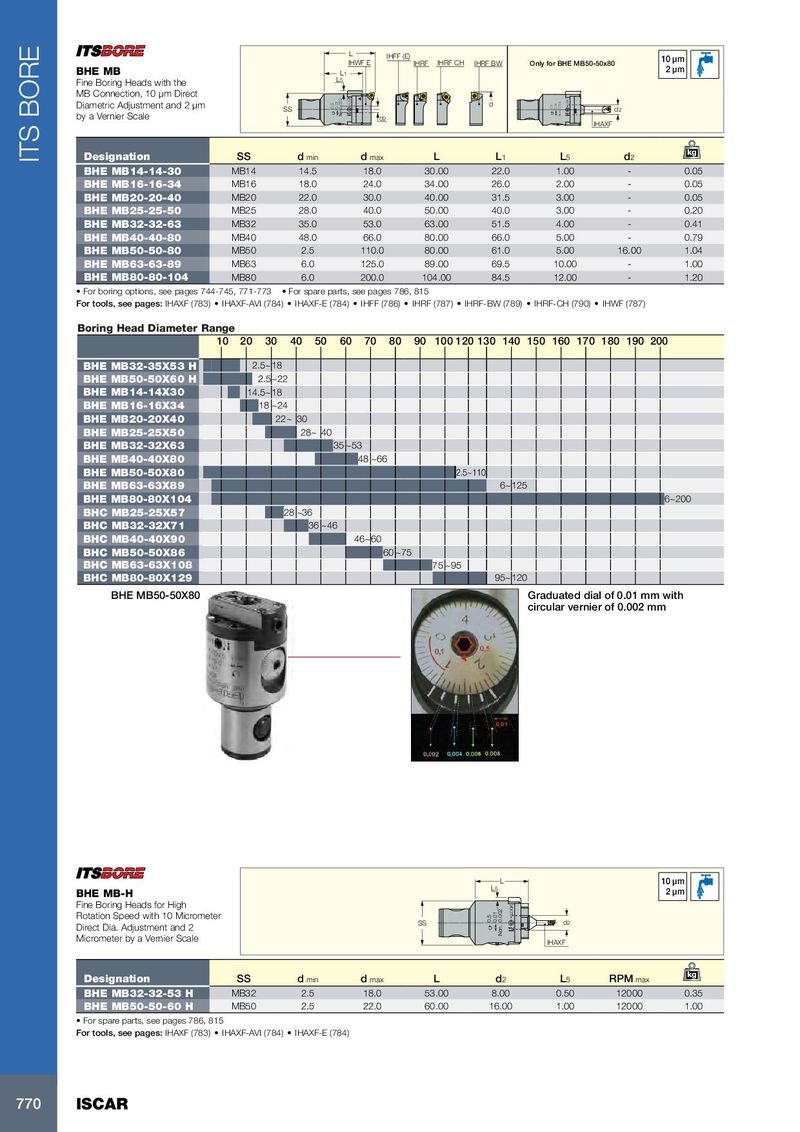

L IHFF (E) IHWF E IHRF IHRF CH IHRF BW Only for BHE MB50-50x80 10 µm BHE MB L1 2 µm Fine Boring Heads with the L5 MB Connection, 10 µm Direct Diametric Adjustment and 2 µm 0.5 0.01 LOCK d SS 0.5 0.01 LOCK d2 by a Vernier Scale Non.0.002 Non. 0.002 d2 IHAXF kg ITS BORE Designation SS d min d max L L 1 L 5 d 2 BHE MB14-14-30 MB14 14.5 18.0 30.00 22.0 1.00 - 0.05 BHE MB16-16-34 MB16 18.0 24.0 34.00 26.0 2.00 - 0.05 BHE MB20-20-40 MB20 22.0 30.0 40.00 31.5 3.00 - 0.05 BHE MB25-25-50 MB25 28.0 40.0 50.00 40.0 3.00 - 0.20 BHE MB32-32-63 MB32 35.0 53.0 63.00 51.5 4.00 - 0.41 BHE MB40-40-80 MB40 48.0 66.0 80.00 66.0 5.00 - 0.79 BHE MB50-50-80 MB50 2.5 110.0 80.00 61.0 5.00 16.00 1.04 BHE MB63-63-89 MB63 6.0 125.0 89.00 69.5 10.00 - 1.00 BHE MB80-80-104 MB80 6.0 200.0 104.00 84.5 12.00 - 1.20 • For boring options, see pages 744-745, 771-773 • For spare parts, see pages 786, 815 For tools, see pages: IHAXF (783) • IHAXF-AVI (784) • IHAXF-E (784) • IHFF (786) • IHRF (787) • IHRF-BW (789) • IHRF-CH (790) • IHWF (787) Boring Head Diameter Range 10 20 30 40 50 60 70 80 90 100 120 130 140 150 160 170 180 190 200 BHE MB32-35X53 H 2.5~18 BHE MB50-50X60 H 2.5~22 BHE MB14-14X30 14.5~ 18 BHE MB16-16X34 18 ~24 BHE MB20-20X40 22~ 30 BHE MB25-25X50 28~ 40 BHE MB32-32X63 35 ~53 BHE MB40-40X80 48 ~66 BHE MB50-50X80 2.5~110 BHE MB63-63X89 6~125 BHE MB80-80X104 6~200 BHC MB25-25X57 28 ~36 BHC MB32-32X71 36 ~46 BHC MB40-40X90 46~60 BHC MB50-50X86 60 ~75 BHC MB63-63X108 75 ~95 BHC MB80-80X129 95~120 BHE MB50-50X80 Graduated dial of 0.01 mm with circular vernier of 0.002 mm L 10 µm L5 BHE MB-H 2 µm Fine Boring Heads for High Rotation Speed with 10 Micrometer LOCK SS 0.5 0.01 d2 Direct Dia. Adjustment and 2 Non. 0.002 Micrometer by a Vernier Scale IHAXF kg Designation SS d min d max L d 2 L 5 RPM max BHE MB32-32-53 H MB32 2.5 18.0 53.00 8.00 0.50 12000 0.35 BHE MB50-50-60 H MB50 2.5 22.0 60.00 16.00 1.00 12000 1.00 • For spare parts, see pages 786, 815 For tools, see pages: IHAXF (783) • IHAXF-AVI (784) • IHAXF-E (784) 770 ISCAR
