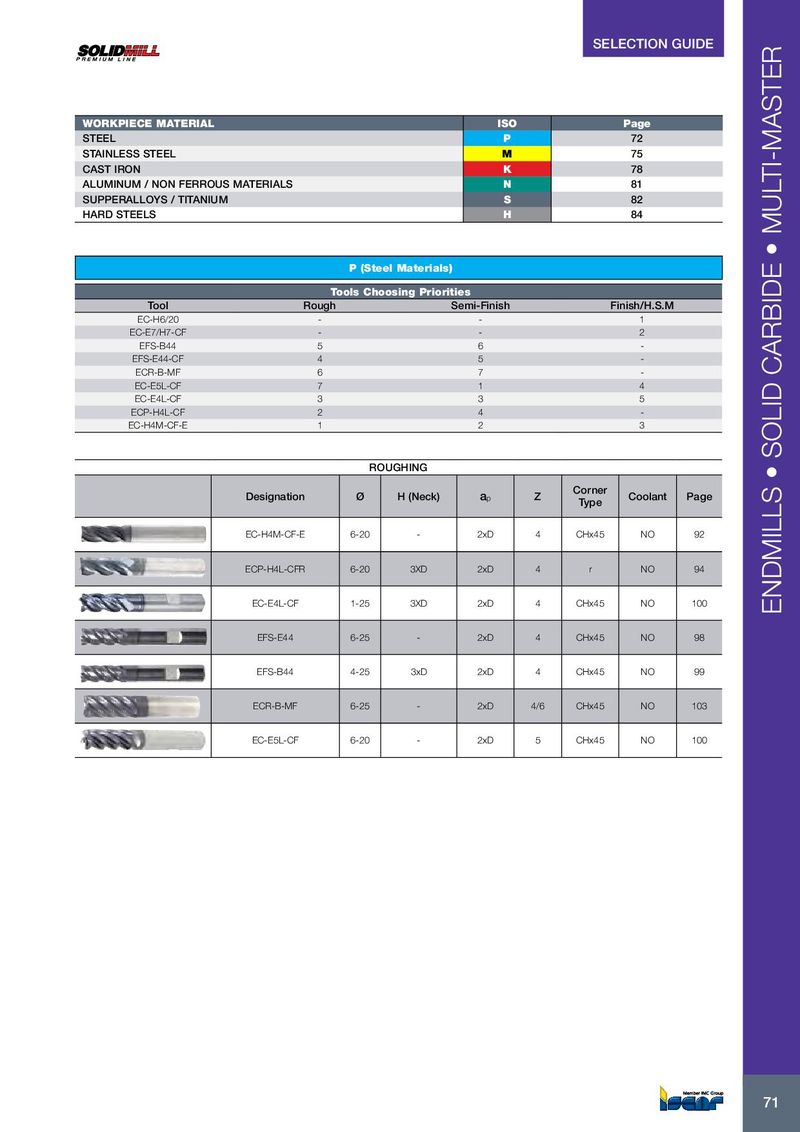

| WORKPIECE MATERIAL | ISO | Page |
| STEEL | P | 72 |
| STAINLESS STEEL | M | 75 |
| CAST IRON | K | 78 |
| ALUMINUM / NON FERROUS MATERIALS | N | 81 |
| SUPPERALLOYS / TITANIUM | S | 82 |
| HARD STEELS | H | 84 |
| P ( | Steel Materials) | ||
| Tools | Choosing Priorities | ||
| Tool | Rough | Semi-Finish | Finish/H.S.M |
| EC-H6/20 | - | - | 1 |
| EC-E7/H7-CF | - | - | 2 |
| EFS-B44 | 5 | 6 | - |
| EFS-E44-CF | 4 | 5 | - |
| ECR-B-MF | 6 | 7 | - |
| EC-E5L-CF | 7 | 1 | 4 |
| EC-E4L-CF | 3 | 3 | 5 |
| ECP-H4L-CF | 2 | 4 | - |
| EC-H4M-CF-E | 1 | 2 | 3 |
| RO | UGHING | ||||||
| Designation | Ø | H (Neck) | ap | Z | Corner Type | Coolant | Page |
| EC-H4M-CF-E | 6-20 | - | 2xD | 4 | CHx45 | NO | 92 |
| ECP-H4L-CFR | 6-20 | 3XD | 2xD | 4 | r | NO | 94 |
| EC-E4L-CF | 1-25 | 3XD | 2xD | 4 | CHx45 | NO | 100 |
| EFS-E44 | 6-25 | - | 2xD | 4 | CHx45 | NO | 98 |
| EFS-B44 | 4-25 | 3xD | 2xD | 4 | CHx45 | NO | 99 |
| ECR-B-MF | 6-25 | - | 2xD | 4/6 | CHx45 | NO | 103 |
| EC-E5L-CF | 6-20 | - | 2xD | 5 | CHx45 | NO | 100 |
