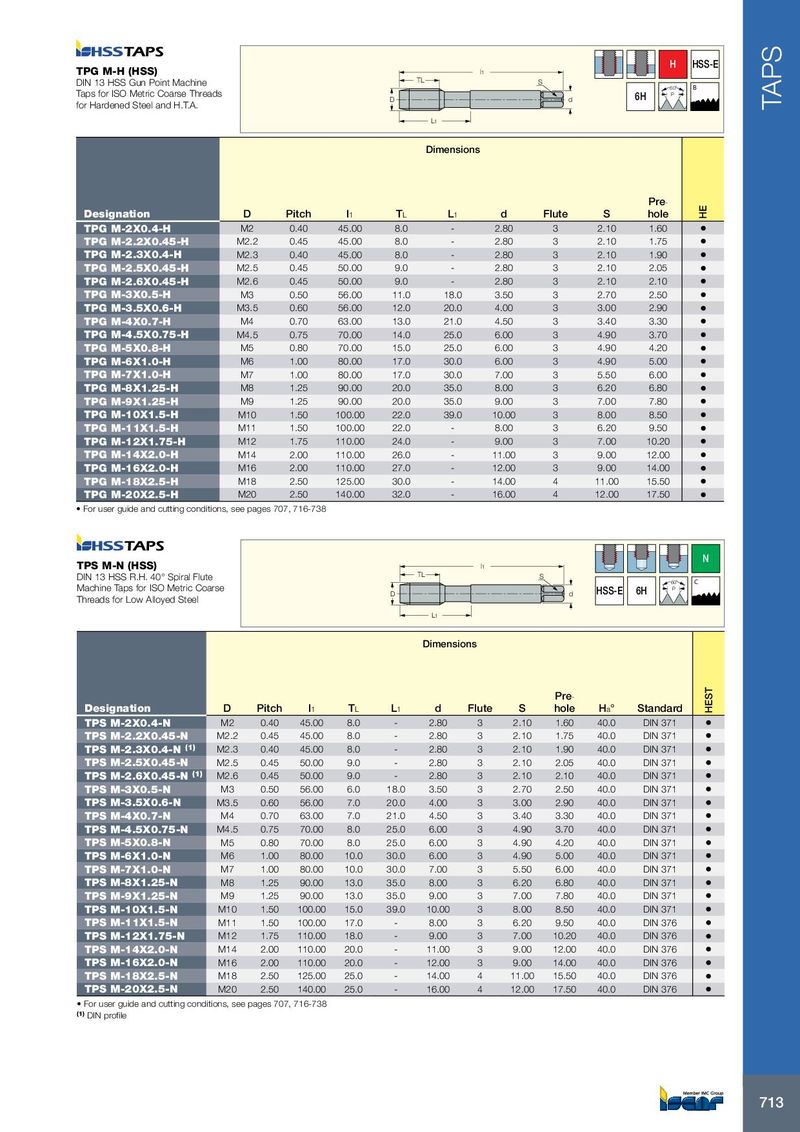

Каталог Iscar вращающийся инструмент 2017 - страница 717

H HSS-E TPG M-H (HSS) l1 DIN 13 HSS Gun Point Machine TL S 60˚ B Taps for ISO Metric Coarse Threads D d 6H P for Hardened Steel and H.T.A. TAPS L1 Dimensions Pre - Designation D Pitch l 1 T L L 1 d Flute S hole HE TPG M-2X0.4-H M2 0.40 45.00 8.0 - 2.80 3 2.10 1.60 • TPG M-2.2X0.45-H M2.2 0.45 45.00 8.0 - 2.80 3 2.10 1.75 • TPG M-2.3X0.4-H M2.3 0.40 45.00 8.0 - 2.80 3 2.10 1.90 • TPG M-2.5X0.45-H M2.5 0.45 50.00 9.0 - 2.80 3 2.10 2.05 • TPG M-2.6X0.45-H M2.6 0.45 50.00 9.0 - 2.80 3 2.10 2.10 • TPG M-3X0.5-H M3 0.50 56.00 11.0 18.0 3.50 3 2.70 2.50 • TPG M-3.5X0.6-H M3.5 0.60 56.00 12.0 20.0 4.00 3 3.00 2.90 • TPG M-4X0.7-H M4 0.70 63.00 13.0 21.0 4.50 3 3.40 3.30 • TPG M-4.5X0.75-H M4.5 0.75 70.00 14.0 25.0 6.00 3 4.90 3.70 • TPG M-5X0.8-H M5 0.80 70.00 15.0 25.0 6.00 3 4.90 4.20 • TPG M-6X1.0-H M6 1.00 80.00 17.0 30.0 6.00 3 4.90 5.00 • TPG M-7X1.0-H M7 1.00 80.00 17.0 30.0 7.00 3 5.50 6.00 • TPG M-8X1.25-H M8 1.25 90.00 20.0 35.0 8.00 3 6.20 6.80 • TPG M-9X1.25-H M9 1.25 90.00 20.0 35.0 9.00 3 7.00 7.80 • TPG M-10X1.5-H M10 1.50 100.00 22.0 39.0 10.00 3 8.00 8.50 • TPG M-11X1.5-H M11 1.50 100.00 22.0 - 8.00 3 6.20 9.50 • TPG M-12X1.75-H M12 1.75 110.00 24.0 - 9.00 3 7.00 10.20 • TPG M-14X2.0-H M14 2.00 110.00 26.0 - 11.00 3 9.00 12.00 • TPG M-16X2.0-H M16 2.00 110.00 27.0 - 12.00 3 9.00 14.00 • TPG M-18X2.5-H M18 2.50 125.00 30.0 - 14.00 4 11.00 15.50 • TPG M-20X2.5-H M20 2.50 140.00 32.0 - 16.00 4 12.00 17.50 • • For user guide and cutting conditions, see pages 707, 716-738 N TPS M-N (HSS) l1 DIN 13 HSS R.H. 40° Spiral Flute TL S 60˚ C Machine Taps for ISO Metric Coarse D d HSS-E 6H P Threads for Low Alloyed Steel L1 Dimensions Pre - Designation D Pitch l 1 T L L 1 d Flute S hole H a ° Standard HEST TPS M-2X0.4-N M2 0.40 45.00 8.0 - 2.80 3 2.10 1.60 40.0 DIN 371 • TPS M-2.2X0.45-N M2.2 0.45 45.00 8.0 - 2.80 3 2.10 1.75 40.0 DIN 371 • TPS M-2.3X0.4-N (1) M2.3 0.40 45.00 8.0 - 2.80 3 2.10 1.90 40.0 DIN 371 • TPS M-2.5X0.45-N M2.5 0.45 50.00 9.0 - 2.80 3 2.10 2.05 40.0 DIN 371 • TPS M-2.6X0.45-N (1) M2.6 0.45 50.00 9.0 - 2.80 3 2.10 2.10 40.0 DIN 371 • TPS M-3X0.5-N M3 0.50 56.00 6.0 18.0 3.50 3 2.70 2.50 40.0 DIN 371 • TPS M-3.5X0.6-N M3.5 0.60 56.00 7.0 20.0 4.00 3 3.00 2.90 40.0 DIN 371 • TPS M-4X0.7-N M4 0.70 63.00 7.0 21.0 4.50 3 3.40 3.30 40.0 DIN 371 • TPS M-4.5X0.75-N M4.5 0.75 70.00 8.0 25.0 6.00 3 4.90 3.70 40.0 DIN 371 • TPS M-5X0.8-N M5 0.80 70.00 8.0 25.0 6.00 3 4.90 4.20 40.0 DIN 371 • TPS M-6X1.0-N M6 1.00 80.00 10.0 30.0 6.00 3 4.90 5.00 40.0 DIN 371 • TPS M-7X1.0-N M7 1.00 80.00 10.0 30.0 7.00 3 5.50 6.00 40.0 DIN 371 • TPS M-8X1.25-N M8 1.25 90.00 13.0 35.0 8.00 3 6.20 6.80 40.0 DIN 371 • TPS M-9X1.25-N M9 1.25 90.00 13.0 35.0 9.00 3 7.00 7.80 40.0 DIN 371 • TPS M-10X1.5-N M10 1.50 100.00 15.0 39.0 10.00 3 8.00 8.50 40.0 DIN 371 • TPS M-11X1.5-N M11 1.50 100.00 17.0 - 8.00 3 6.20 9.50 40.0 DIN 376 • TPS M-12X1.75-N M12 1.75 110.00 18.0 - 9.00 3 7.00 10.20 40.0 DIN 376 • TPS M-14X2.0-N M14 2.00 110.00 20.0 - 11.00 3 9.00 12.00 40.0 DIN 376 • TPS M-16X2.0-N M16 2.00 110.00 20.0 - 12.00 3 9.00 14.00 40.0 DIN 376 • TPS M-18X2.5-N M18 2.50 125.00 25.0 - 14.00 4 11.00 15.50 40.0 DIN 376 • TPS M-20X2.5-N M20 2.50 140.00 25.0 - 16.00 4 12.00 17.50 40.0 DIN 376 • • For user guide and cutting conditions, see pages 707, 716-738 (1) DIN profile 713
