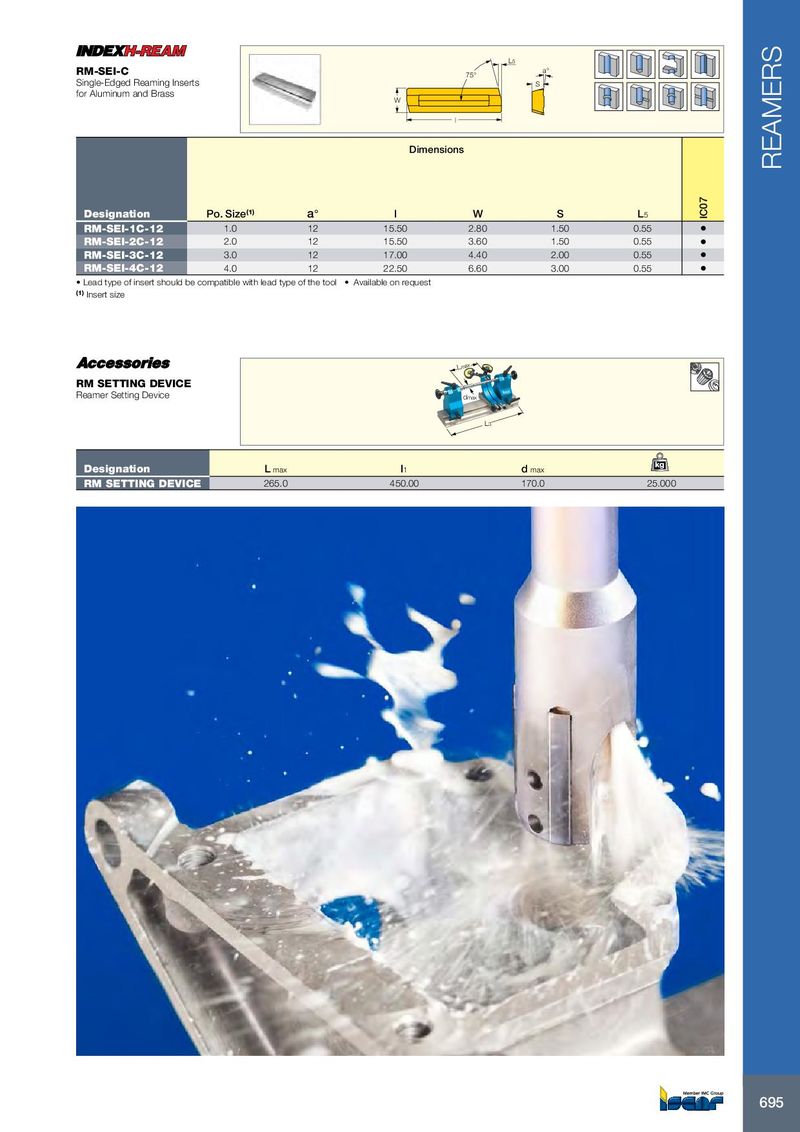

L5 RM-SEI-C a° 75° Single-Edged Reaming Inserts S for Aluminum and Brass W l Dimensions REAMERS Designation Po. Size (1) a° l W S L 5 IC07 RM-SEI-1C-12 1.0 12 15.50 2.80 1.50 0.55 • RM-SEI-2C-12 2.0 12 15.50 3.60 1.50 0.55 • RM-SEI-3C-12 3.0 12 17.00 4.40 2.00 0.55 • RM-SEI-4C-12 4.0 12 22.50 6.60 3.00 0.55 • • Lead type of insert should be compatible with lead type of the tool • Available on request (1) Insert size Lmax RM SETTING DEVICE Reamer Setting Device dmax L3 kg Designation L max l 1 d max RM SETTING DEVICE 265.0 450.00 170.0 25.000 695
