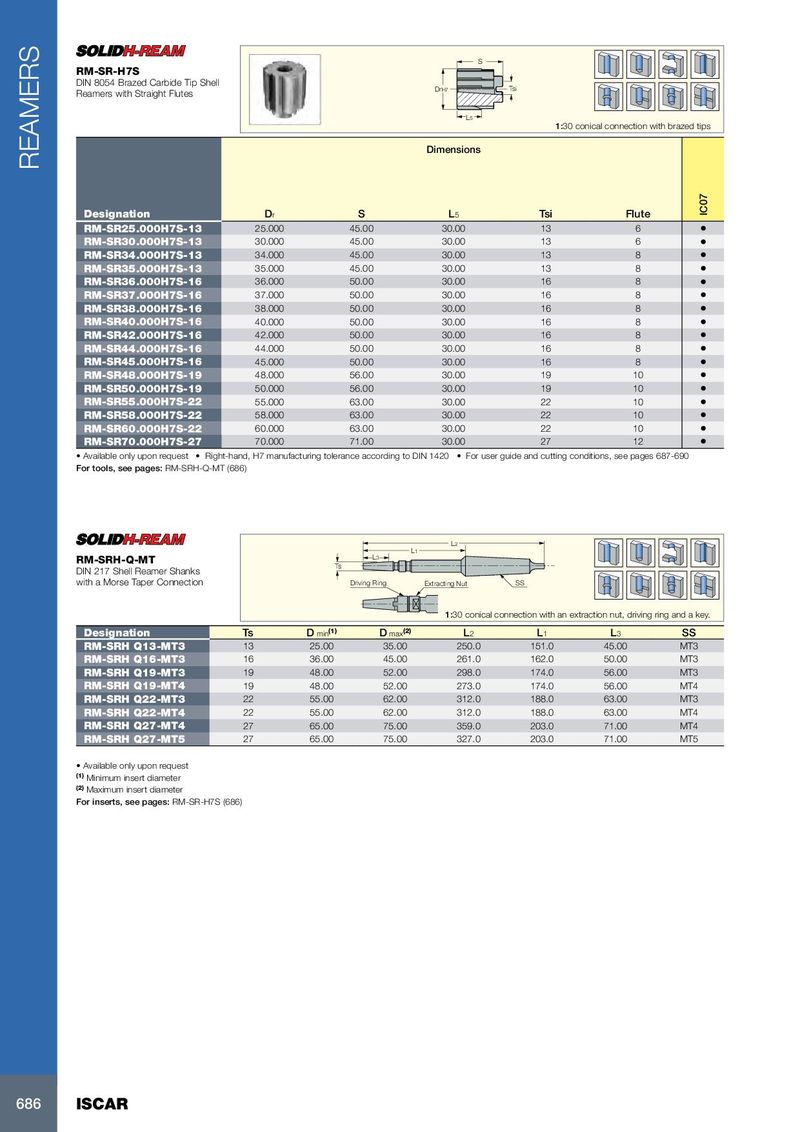

S RM-SR-H7S DIN 8054 Brazed Carbide Tip Shell DrH7 Tsi Reamers with Straight Flutes L5 1:30 conical connection with brazed tips Dimensions REAMERS Designation D r S L 5 Tsi Flute IC07 RM-SR25.000H7S-13 25.000 45.00 30.00 13 6 • RM-SR30.000H7S-13 30.000 45.00 30.00 13 6 • RM-SR34.000H7S-13 34.000 45.00 30.00 13 8 • RM-SR35.000H7S-13 35.000 45.00 30.00 13 8 • RM-SR36.000H7S-16 36.000 50.00 30.00 16 8 • RM-SR37.000H7S-16 37.000 50.00 30.00 16 8 • RM-SR38.000H7S-16 38.000 50.00 30.00 16 8 • RM-SR40.000H7S-16 40.000 50.00 30.00 16 8 • RM-SR42.000H7S-16 42.000 50.00 30.00 16 8 • RM-SR44.000H7S-16 44.000 50.00 30.00 16 8 • RM-SR45.000H7S-16 45.000 50.00 30.00 16 8 • RM-SR48.000H7S-19 48.000 56.00 30.00 19 10 • RM-SR50.000H7S-19 50.000 56.00 30.00 19 10 • RM-SR55.000H7S-22 55.000 63.00 30.00 22 10 • RM-SR58.000H7S-22 58.000 63.00 30.00 22 10 • RM-SR60.000H7S-22 60.000 63.00 30.00 22 10 • RM-SR70.000H7S-27 70.000 71.00 30.00 27 12 • • Available only upon request • Right-hand, H7 manufacturing tolerance according to DIN 1420 • For user guide and cutting conditions, see pages 687-690 For tools, see pages: RM-SRH-Q-MT (686) L 2 L1 RM-SRH-Q-MT L 3 Ts DIN 217 Shell Reamer Shanks with a Morse Taper Connection Driving Ring Extracting Nut SS 1:30 conical connection with an extraction nut, driving ring and a key. Designation Ts D min (1) D max (2) L 2 L 1 L 3 SS RM-SRH Q13-MT3 13 25.00 35.00 250.0 151.0 45.00 MT3 RM-SRH Q16-MT3 16 36.00 45.00 261.0 162.0 50.00 MT3 RM-SRH Q19-MT3 19 48.00 52.00 298.0 174.0 56.00 MT3 RM-SRH Q19-MT4 19 48.00 52.00 273.0 174.0 56.00 MT4 RM-SRH Q22-MT3 22 55.00 62.00 312.0 188.0 63.00 MT3 RM-SRH Q22-MT4 22 55.00 62.00 312.0 188.0 63.00 MT4 RM-SRH Q27-MT4 27 65.00 75.00 359.0 203.0 71.00 MT4 RM-SRH Q27-MT5 27 65.00 75.00 327.0 203.0 71.00 MT5 • Available only upon request (1) Minimum insert diameter (2) Maximum insert diameter For inserts, see pages: RM-SR-H7S (686) 686 ISCAR
