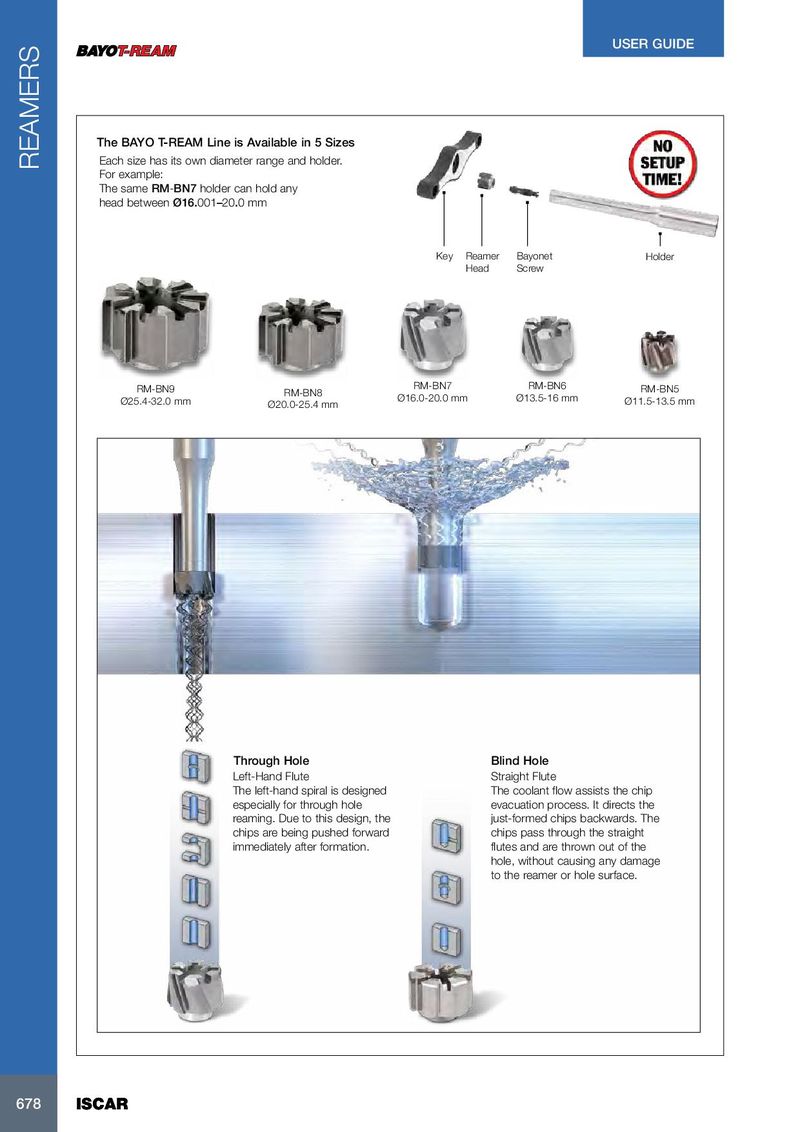

USER GUIDE The BAYO T-REAM Line is Available in 5 Sizes Each size has its own diameter range and holder. REAMERS For example: The same RM-BN7 holder can hold any head between Ø16.001–20.0 mm Key Reamer Bayonet Holder Head Screw RM-BN9 RM-BN7 RM-BN6 RM-BN8 RM-BN5 Ø25.4-32.0 mm Ø16.0-20.0 mm Ø13.5-16 mm Ø20.0-25.4 mm Ø11.5-13.5 mm Through Hole Blind Hole Left-Hand Flute Straight Flute The left-hand spiral is designed The coolant flow assists the chip especially for through hole evacuation process. It directs the reaming. Due to this design, the just-formed chips backwards. The chips are being pushed forward chips pass through the straight immediately after formation. flutes and are thrown out of the hole, without causing any damage to the reamer or hole surface. 678 678 ISCAR ISCAR
