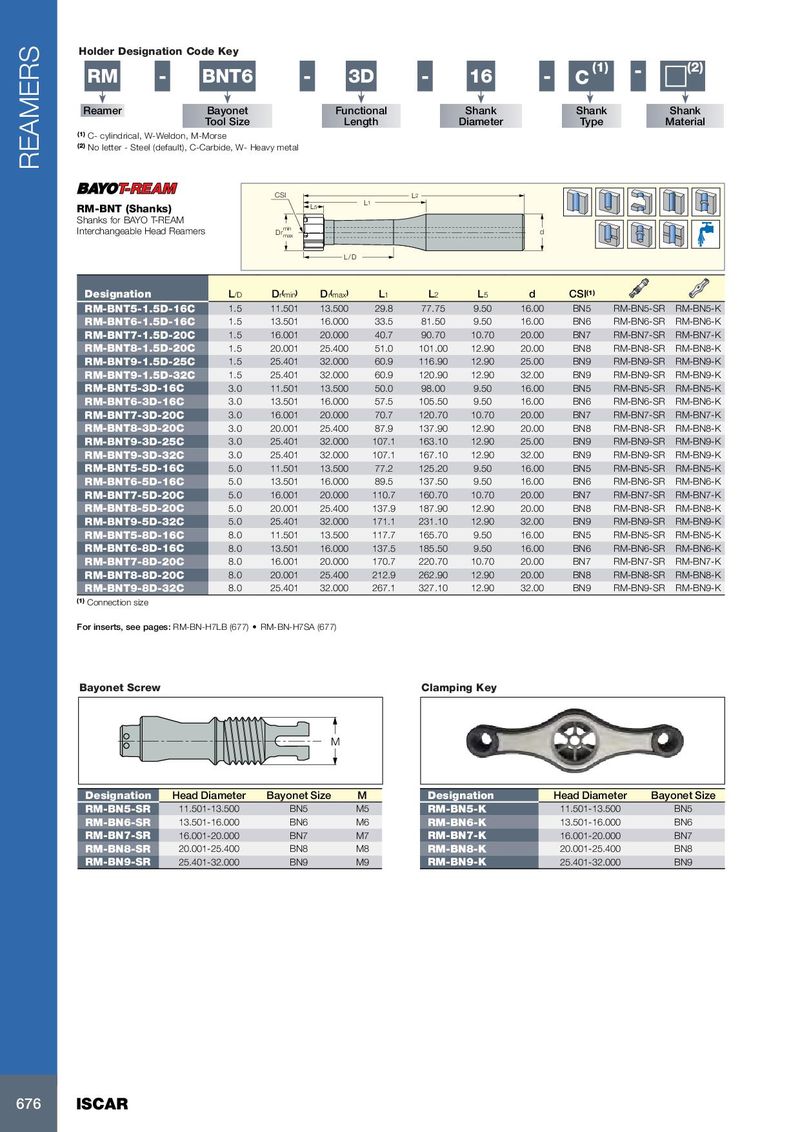

Holder Designation Code Key (1) (2) - RM - BNT6 - 3D - 16 - C Reamer Bayonet Functional Shank Shank Shank Tool Size Length Diameter Type Material (1) C- cylindrical, W-Weldon, M-Morse (2) No letter - Steel (default), C-Carbide, W- Heavy metal REAMERS Bayonet Screw Clamping Key CSI L 2 RM-BNT (Shanks) 5 L 1 L Shanks for BAYO T-REAM M Interchangeable Head Reamers min Dr max d L/D Designation Head Diameter Bayonet Size M Designation Head Diameter Bayonet Size RM-BN5-SR 11.501-13.500 BN5 M5 RM-BN5-K 11.501-13.500 BN5 Designation L /D D r ( min ) D r ( max ) L 1 L 2 L 5 d CSI (1) RM-BN6-SR 13.501-16.000 BN6 M6 RM-BN6-K 13.501-16.000 BN6 RM-BNT5-1.5D-16C 1.5 11.501 13.500 29.8 77.75 9.50 16.00 BN5 RM-BN5-SR RM-BN5-K RM-BN7-SR 16.001-20.000 BN7 M7 RM-BN7-K 16.001-20.000 BN7 RM-BNT6-1.5D-16C 1.5 13.501 16.000 33.5 81.50 9.50 16.00 BN6 RM-BN6-SR RM-BN6-K RM-BN8-SR 20.001-25.400 BN8 M8 RM-BN8-K 20.001-25.400 BN8 RM-BNT7-1.5D-20C 1.5 16.001 20.000 40.7 90.70 10.70 20.00 BN7 RM-BN7-SR RM-BN7-K RM-BN9-SR 25.401-32.000 BN9 M9 RM-BN9-K 25.401-32.000 BN9 RM-BNT8-1.5D-20C 1.5 20.001 25.400 51.0 101.00 12.90 20.00 BN8 RM-BN8-SR RM-BN8-K RM-BNT9-1.5D-25C 1.5 25.401 32.000 60.9 116.90 12.90 25.00 BN9 RM-BN9-SR RM-BN9-K RM-BNT9-1.5D-32C 1.5 25.401 32.000 60.9 120.90 12.90 32.00 BN9 RM-BN9-SR RM-BN9-K RM-BNT5-3D-16C 3.0 11.501 13.500 50.0 98.00 9.50 16.00 BN5 RM-BN5-SR RM-BN5-K RM-BNT6-3D-16C 3.0 13.501 16.000 57.5 105.50 9.50 16.00 BN6 RM-BN6-SR RM-BN6-K RM-BNT7-3D-20C 3.0 16.001 20.000 70.7 120.70 10.70 20.00 BN7 RM-BN7-SR RM-BN7-K RM-BNT8-3D-20C 3.0 20.001 25.400 87.9 137.90 12.90 20.00 BN8 RM-BN8-SR RM-BN8-K RM-BNT9-3D-25C 3.0 25.401 32.000 107.1 163.10 12.90 25.00 BN9 RM-BN9-SR RM-BN9-K RM-BNT9-3D-32C 3.0 25.401 32.000 107.1 167.10 12.90 32.00 BN9 RM-BN9-SR RM-BN9-K RM-BNT5-5D-16C 5.0 11.501 13.500 77.2 125.20 9.50 16.00 BN5 RM-BN5-SR RM-BN5-K RM-BNT6-5D-16C 5.0 13.501 16.000 89.5 137.50 9.50 16.00 BN6 RM-BN6-SR RM-BN6-K RM-BNT7-5D-20C 5.0 16.001 20.000 110.7 160.70 10.70 20.00 BN7 RM-BN7-SR RM-BN7-K RM-BNT8-5D-20C 5.0 20.001 25.400 137.9 187.90 12.90 20.00 BN8 RM-BN8-SR RM-BN8-K RM-BNT9-5D-32C 5.0 25.401 32.000 171.1 231.10 12.90 32.00 BN9 RM-BN9-SR RM-BN9-K RM-BNT5-8D-16C 8.0 11.501 13.500 117.7 165.70 9.50 16.00 BN5 RM-BN5-SR RM-BN5-K RM-BNT6-8D-16C 8.0 13.501 16.000 137.5 185.50 9.50 16.00 BN6 RM-BN6-SR RM-BN6-K RM-BNT7-8D-20C 8.0 16.001 20.000 170.7 220.70 10.70 20.00 BN7 RM-BN7-SR RM-BN7-K Holder Designation Code Key RM-BNT8-8D-20C 8.0 20.001 25.400 212.9 262.90 12.90 20.00 BN8 RM-BN8-SR RM-BN8-K RM-BNT9-8D-32C 8.0 25.401 32.000 267.1 327.10 12.90 32.00 BN9 (1) RM-BN9-SR RM-BN9-K (2) - (1) Connection size RM - BNT6 - 3D - 16 - C For inserts, see pages: RM-BN-H7LB (677) • RM-BN-H7SA (677) Reamer Bayonet Functional Shank Shank Shank Tool Size Length Diameter Type Material (1) C- cylindrical, W-Weldon, M-Morse (2) No letter - Steel (default), C-Carbide, W- Heavy metal Bayonet Screw Clamping Key M Designation Head Diameter Bayonet Size M Designation Head Diameter Bayonet Size RM-BN5-SR 11.501-13.500 BN5 M5 RM-BN5-K 11.501-13.500 BN5 RM-BN6-SR 13.501-16.000 BN6 M6 RM-BN6-K 13.501-16.000 BN6 RM-BN7-SR 16.001-20.000 BN7 M7 RM-BN7-K 16.001-20.000 BN7 RM-BN8-SR 20.001-25.400 BN8 M8 RM-BN8-K 20.001-25.400 BN8 RM-BN9-SR 25.401-32.000 BN9 M9 RM-BN9-K 25.401-32.000 BN9 676 ISCAR
