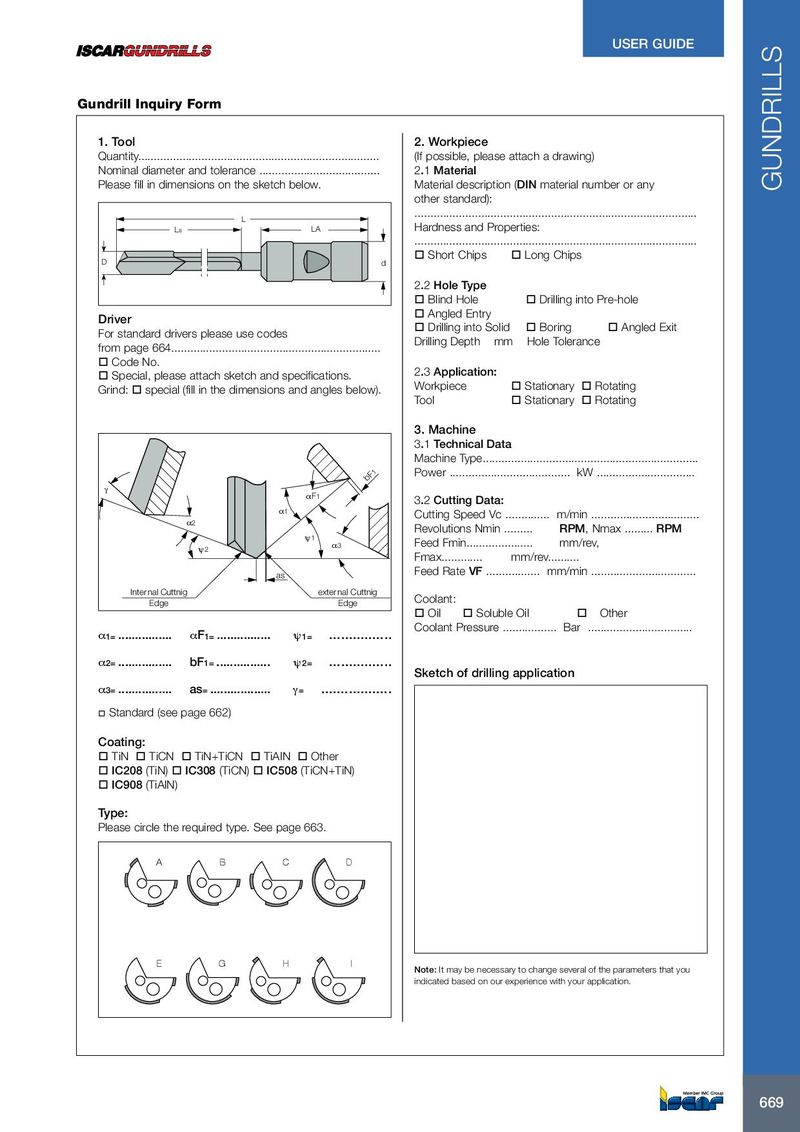

USER GUIDE Gundrill Inquiry Form 1. Tool 2. Workpiece Quantity............................................................................ (If possible, please attach a drawing) Nominal diameter and tolerance ...................................... 2.1 Material Please fill in dimensions on the sketch below. Material description (DIN material number or any other standard): ......................................................................................... L L s LA Hardness and Properties: ......................................................................................... o Short Chips o Long Chips D d 2.2 Hole Type o Blind Hole o Drilling into Pre-hole o Angled Entry Driver o Drilling into Solid o Boring o Angled Exit For standard drivers please use codes Drilling Depth mm Hole Tolerance from page 664.................................................................. o Code No. 2.3 Application: o Special, please attach sketch and specifications. Workpiece o Stationary o Rotating Grind: o special (fill in the dimensions and angles below). Tool o Stationary o Rotating 3. Machine 3.1 Technical Data Machine Type.................................................................... 1 Power ...................................... kW ............................... bF γ αF1 3.2 Cutting Data: α1 Cutting Speed Vc .............. m/min .................................. α 2 Revolutions Nmin ......... RPM, Nmax ......... RPM ψ1 Feed Fmin..................... mm/rev, ψ2 α 3 Fmax............. mm/rev.......... as Feed Rate VF ................. mm/min ................................. Inter nal Cuttnig exter nal Cuttnig Edge Edge Coolant: o Oil o Soluble Oil o Other Coolant Pressure ................. Bar ................................. α 1= ................ αF 1= ................ ψ 1= ................ α 2= ................ bF 1= ................ ψ 2= ................ GUNDRILLS Sketch of drilling application α 3= ................ as = .................. γ = .................. o Standard (see page 662) Coating: o TiN o TiCN o TiN+TiCN o TiAIN o Other o IC208 (TiN) o IC308 (TiCN) o IC508 (TiCN+TiN) o IC908 (TiAlN) Type: Please circle the required type. See page 663. A B C D E G H I Note: It may be necessary to change several of the parameters that you indicated based on our experience with your application. 669
