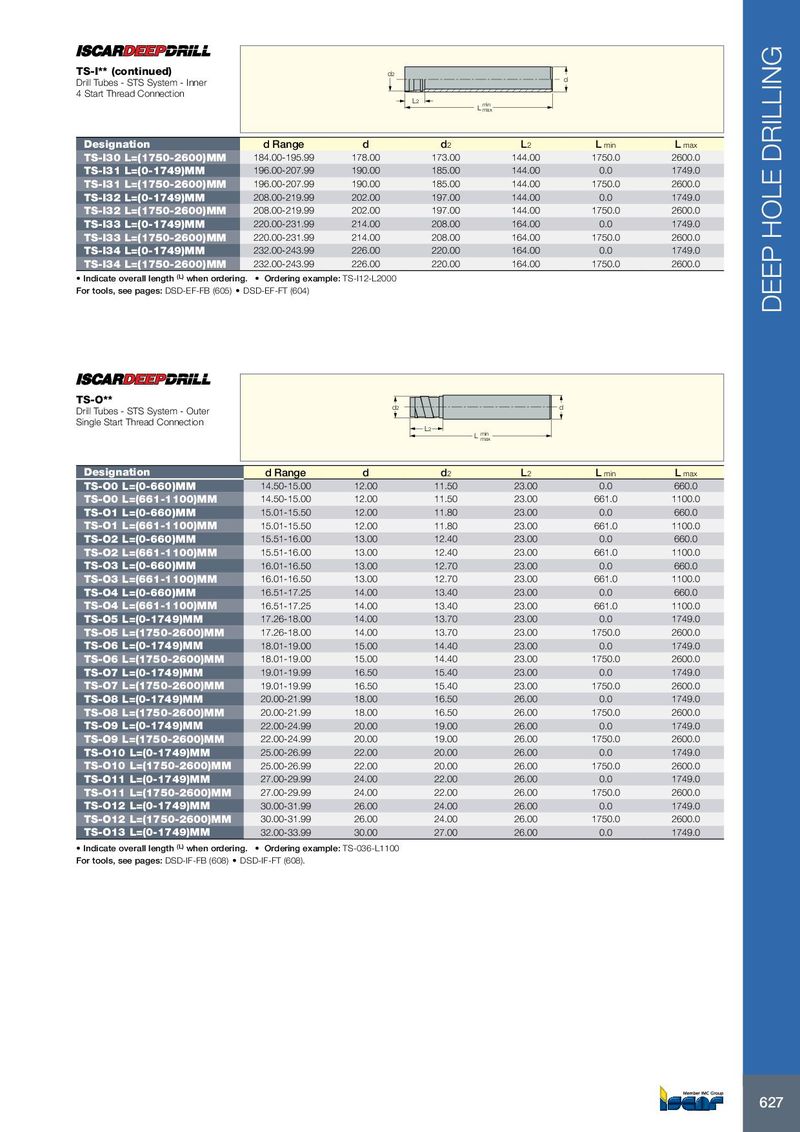

| TS-I (continued) Drill Tubes - STS System - Inner 4 Start Thread Connection | d2 | L2 L m m | in ax | d | ||
| Designation | d Range | d | d2 | L2 | Lmin | Lmax |
| TS-I30 L=(1750-2600)MM | 184.00-195.99 | 178.00 | 173.00 | 144.00 | 1750.0 | 2600.0 |
| TS-I31 L=(0-1749)MM | 196.00-207.99 | 190.00 | 185.00 | 144.00 | 0.0 | 1749.0 |
| TS-I31 L=(1750-2600)MM | 196.00-207.99 | 190.00 | 185.00 | 144.00 | 1750.0 | 2600.0 |
| TS-I32 L=(0-1749)MM | 208.00-219.99 | 202.00 | 197.00 | 144.00 | 0.0 | 1749.0 |
| TS-I32 L=(1750-2600)MM | 208.00-219.99 | 202.00 | 197.00 | 144.00 | 1750.0 | 2600.0 |
| TS-I33 L=(0-1749)MM | 220.00-231.99 | 214.00 | 208.00 | 164.00 | 0.0 | 1749.0 |
| TS-I33 L=(1750-2600)MM | 220.00-231.99 | 214.00 | 208.00 | 164.00 | 1750.0 | 2600.0 |
| TS-I34 L=(0-1749)MM | 232.00-243.99 | 226.00 | 220.00 | 164.00 | 0.0 | 1749.0 |
| TS-I34 L=(1750-2600)MM | 232.00-243.99 | 226.00 | 220.00 | 164.00 | 1750.0 | 2600.0 |
- Indicate overall length (L) when ordering.
- Ordering example: TS-I12-L2000
For tools, see pages: DSD-EF-FB (605) DSD-EF-FT (604)
| TS-O Drill Tubes - STS System - Outer Single Start Thread Connection | d2 | L2 L mi m | d n ax | ||||
| Designation | d Range | d | d2 | L2 | Lmin | Lmax | |
| TS-O0 L=(0-660)MM | 14.50-15.00 | 12.00 | 11.50 | 23.00 | 0.0 | 660.0 | |
| TS-O0 L=(661-1100)MM | 14.50-15.00 | 12.00 | 11.50 | 23.00 | 661.0 | 1100.0 | |
| TS-O1 L=(0-660)MM | 15.01-15.50 | 12.00 | 11.80 | 23.00 | 0.0 | 660.0 | |
| TS-O1 L=(661-1100)MM | 15.01-15.50 | 12.00 | 11.80 | 23.00 | 661.0 | 1100.0 | |
| TS-O2 L=(0-660)MM | 15.51-16.00 | 13.00 | 12.40 | 23.00 | 0.0 | 660.0 | |
| TS-O2 L=(661-1100)MM | 15.51-16.00 | 13.00 | 12.40 | 23.00 | 661.0 | 1100.0 | |
| TS-O3 L=(0-660)MM | 16.01-16.50 | 13.00 | 12.70 | 23.00 | 0.0 | 660.0 | |
| TS-O3 L=(661-1100)MM | 16.01-16.50 | 13.00 | 12.70 | 23.00 | 661.0 | 1100.0 | |
| TS-O4 L=(0-660)MM | 16.51-17.25 | 14.00 | 13.40 | 23.00 | 0.0 | 660.0 | |
| TS-O4 L=(661-1100)MM | 16.51-17.25 | 14.00 | 13.40 | 23.00 | 661.0 | 1100.0 | |
| TS-O5 L=(0-1749)MM | 17.26-18.00 | 14.00 | 13.70 | 23.00 | 0.0 | 1749.0 | |
| TS-O5 L=(1750-2600)MM | 17.26-18.00 | 14.00 | 13.70 | 23.00 | 1750.0 | 2600.0 | |
| TS-O6 L=(0-1749)MM | 18.01-19.00 | 15.00 | 14.40 | 23.00 | 0.0 | 1749.0 | |
| TS-O6 L=(1750-2600)MM | 18.01-19.00 | 15.00 | 14.40 | 23.00 | 1750.0 | 2600.0 | |
| TS-O7 L=(0-1749)MM | 19.01-19.99 | 16.50 | 15.40 | 23.00 | 0.0 | 1749.0 | |
| TS-O7 L=(1750-2600)MM | 19.01-19.99 | 16.50 | 15.40 | 23.00 | 1750.0 | 2600.0 | |
| TS-O8 L=(0-1749)MM | 20.00-21.99 | 18.00 | 16.50 | 26.00 | 0.0 | 1749.0 | |
| TS-O8 L=(1750-2600)MM | 20.00-21.99 | 18.00 | 16.50 | 26.00 | 1750.0 | 2600.0 | |
| TS-O9 L=(0-1749)MM | 22.00-24.99 | 20.00 | 19.00 | 26.00 | 0.0 | 1749.0 | |
| TS-O9 L=(1750-2600)MM | 22.00-24.99 | 20.00 | 19.00 | 26.00 | 1750.0 | 2600.0 | |
| TS-O10 L=(0-1749)MM | 25.00-26.99 | 22.00 | 20.00 | 26.00 | 0.0 | 1749.0 | |
| TS-O10 L=(1750-2600)MM | 25.00-26.99 | 22.00 | 20.00 | 26.00 | 1750.0 | 2600.0 | |
| TS-O11 L=(0-1749)MM | 27.00-29.99 | 24.00 | 22.00 | 26.00 | 0.0 | 1749.0 | |
| TS-O11 L=(1750-2600)MM | 27.00-29.99 | 24.00 | 22.00 | 26.00 | 1750.0 | 2600.0 | |
| TS-O12 L=(0-1749)MM | 30.00-31.99 | 26.00 | 24.00 | 26.00 | 0.0 | 1749.0 | |
| TS-O12 L=(1750-2600)MM | 30.00-31.99 | 26.00 | 24.00 | 26.00 | 1750.0 | 2600.0 | |
| TS-O13 L=(0-1749)MM | 32.00-33.99 | 30.00 | 27.00 | 26.00 | 0.0 | 1749.0 |
- Indicate overall length (L) when ordering.
- Ordering example: TS-036-L1100
For tools, see pages: DSD-IF-FB (608) DSD-IF-FT (608).
