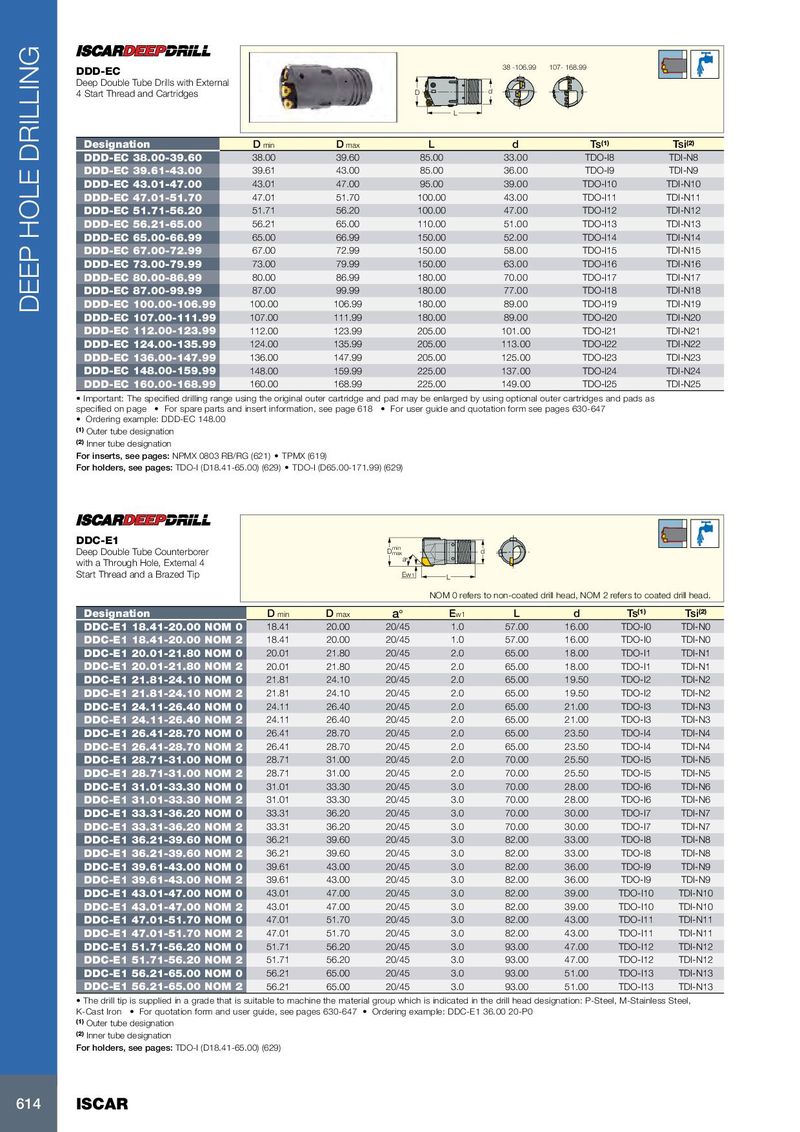

| DDD-EC Deep Double Tube Drills with External 4 Start Thread and Cartridges | L D | 38 -106.99 d | 107- 168.99 | |||
| Designation | Dmin | Dmax | L | d | Ts(1) | Tsi(2) |
| DDD-EC 38.00-39.60 | 38.00 | 39.60 | 85.00 | 33.00 | TDO-I8 | TDI-N8 |
| DDD-EC 39.61-43.00 | 39.61 | 43.00 | 85.00 | 36.00 | TDO-I9 | TDI-N9 |
| DDD-EC 43.01-47.00 | 43.01 | 47.00 | 95.00 | 39.00 | TDO-I10 | TDI-N10 |
| DDD-EC 47.01-51.70 | 47.01 | 51.70 | 100.00 | 43.00 | TDO-I11 | TDI-N11 |
| DDD-EC 51.71-56.20 | 51.71 | 56.20 | 100.00 | 47.00 | TDO-I12 | TDI-N12 |
| DDD-EC 56.21-65.00 | 56.21 | 65.00 | 110.00 | 51.00 | TDO-I13 | TDI-N13 |
| DDD-EC 65.00-66.99 | 65.00 | 66.99 | 150.00 | 52.00 | TDO-I14 | TDI-N14 |
| DDD-EC 67.00-72.99 | 67.00 | 72.99 | 150.00 | 58.00 | TDO-I15 | TDI-N15 |
| DDD-EC 73.00-79.99 | 73.00 | 79.99 | 150.00 | 63.00 | TDO-I16 | TDI-N16 |
| DDD-EC 80.00-86.99 | 80.00 | 86.99 | 180.00 | 70.00 | TDO-I17 | TDI-N17 |
| DDD-EC 87.00-99.99 | 87.00 | 99.99 | 180.00 | 77.00 | TDO-I18 | TDI-N18 |
| DDD-EC 100.00-106.99 | 100.00 | 106.99 | 180.00 | 89.00 | TDO-I19 | TDI-N19 |
| DDD-EC 107.00-111.99 | 107.00 | 111.99 | 180.00 | 89.00 | TDO-I20 | TDI-N20 |
| DDD-EC 112.00-123.99 | 112.00 | 123.99 | 205.00 | 101.00 | TDO-I21 | TDI-N21 |
| DDD-EC 124.00-135.99 | 124.00 | 135.99 | 205.00 | 113.00 | TDO-I22 | TDI-N22 |
| DDD-EC 136.00-147.99 | 136.00 | 147.99 | 205.00 | 125.00 | TDO-I23 | TDI-N23 |
| DDD-EC 148.00-159.99 | 148.00 | 159.99 | 225.00 | 137.00 | TDO-I24 | TDI-N24 |
| DDD-EC 160.00-168.99 | 160.00 | 168.99 | 225.00 | 149.00 | TDO-I25 | TDI-N25 |
- Important: The specified drilling range using the original outer cartridge and pad may be enlarged by using optional outer cartridges and pads as
specified on page For spare parts and insert information, see page 618 For user guide and quotation form see pages 630-647
- Ordering example: DDD-EC 148.00
(1) Outer tube designation (2) Inner tube designation For inserts, see pages: NPMX 0803 RB/RG (621) TPMX (619) For holders, see pages: TDO-I (D18.41-65.00) (629) TDO-I (D65.00-171.99) (629)
DDC-E1
| eep Double Tube Counterborer ith a Through Hole, External 4 art Thread and a Brazed Tip | D aº Ew1 min max | L NOM 0 refers | d to non-coated d | rill head, NOM | 2 refers to coate | d drill head. | ||
| Designation | Dmin | Dmax | a° | Ew1 | L | d | Ts(1) | Tsi(2) |
| DDC-E1 18.41-20.00 NOM 0 | 18.41 | 20.00 | 20/45 | 1.0 | 57.00 | 16.00 | TDO-I0 | TDI-N0 |
| DDC-E1 18.41-20.00 NOM 2 | 18.41 | 20.00 | 20/45 | 1.0 | 57.00 | 16.00 | TDO-I0 | TDI-N0 |
| DDC-E1 20.01-21.80 NOM 0 | 20.01 | 21.80 | 20/45 | 2.0 | 65.00 | 18.00 | TDO-I1 | TDI-N1 |
| DDC-E1 20.01-21.80 NOM 2 | 20.01 | 21.80 | 20/45 | 2.0 | 65.00 | 18.00 | TDO-I1 | TDI-N1 |
| DDC-E1 21.81-24.10 NOM 0 | 21.81 | 24.10 | 20/45 | 2.0 | 65.00 | 19.50 | TDO-I2 | TDI-N2 |
| DDC-E1 21.81-24.10 NOM 2 | 21.81 | 24.10 | 20/45 | 2.0 | 65.00 | 19.50 | TDO-I2 | TDI-N2 |
| DDC-E1 24.11-26.40 NOM 0 | 24.11 | 26.40 | 20/45 | 2.0 | 65.00 | 21.00 | TDO-I3 | TDI-N3 |
| DDC-E1 24.11-26.40 NOM 2 | 24.11 | 26.40 | 20/45 | 2.0 | 65.00 | 21.00 | TDO-I3 | TDI-N3 |
| DDC-E1 26.41-28.70 NOM 0 | 26.41 | 28.70 | 20/45 | 2.0 | 65.00 | 23.50 | TDO-I4 | TDI-N4 |
| DDC-E1 26.41-28.70 NOM 2 | 26.41 | 28.70 | 20/45 | 2.0 | 65.00 | 23.50 | TDO-I4 | TDI-N4 |
| DDC-E1 28.71-31.00 NOM 0 | 28.71 | 31.00 | 20/45 | 2.0 | 70.00 | 25.50 | TDO-I5 | TDI-N5 |
| DDC-E1 28.71-31.00 NOM 2 | 28.71 | 31.00 | 20/45 | 2.0 | 70.00 | 25.50 | TDO-I5 | TDI-N5 |
| DDC-E1 31.01-33.30 NOM 0 | 31.01 | 33.30 | 20/45 | 3.0 | 70.00 | 28.00 | TDO-I6 | TDI-N6 |
| DDC-E1 31.01-33.30 NOM 2 | 31.01 | 33.30 | 20/45 | 3.0 | 70.00 | 28.00 | TDO-I6 | TDI-N6 |
| DDC-E1 33.31-36.20 NOM 0 | 33.31 | 36.20 | 20/45 | 3.0 | 70.00 | 30.00 | TDO-I7 | TDI-N7 |
| DDC-E1 33.31-36.20 NOM 2 | 33.31 | 36.20 | 20/45 | 3.0 | 70.00 | 30.00 | TDO-I7 | TDI-N7 |
| DDC-E1 36.21-39.60 NOM 0 | 36.21 | 39.60 | 20/45 | 3.0 | 82.00 | 33.00 | TDO-I8 | TDI-N8 |
| DDC-E1 36.21-39.60 NOM 2 | 36.21 | 39.60 | 20/45 | 3.0 | 82.00 | 33.00 | TDO-I8 | TDI-N8 |
| DDC-E1 39.61-43.00 NOM 0 | 39.61 | 43.00 | 20/45 | 3.0 | 82.00 | 36.00 | TDO-I9 | TDI-N9 |
| DDC-E1 39.61-43.00 NOM 2 | 39.61 | 43.00 | 20/45 | 3.0 | 82.00 | 36.00 | TDO-I9 | TDI-N9 |
| DDC-E1 43.01-47.00 NOM 0 | 43.01 | 47.00 | 20/45 | 3.0 | 82.00 | 39.00 | TDO-I10 | TDI-N10 |
| DDC-E1 43.01-47.00 NOM 2 | 43.01 | 47.00 | 20/45 | 3.0 | 82.00 | 39.00 | TDO-I10 | TDI-N10 |
| DDC-E1 47.01-51.70 NOM 0 | 47.01 | 51.70 | 20/45 | 3.0 | 82.00 | 43.00 | TDO-I11 | TDI-N11 |
| DDC-E1 47.01-51.70 NOM 2 | 47.01 | 51.70 | 20/45 | 3.0 | 82.00 | 43.00 | TDO-I11 | TDI-N11 |
| DDC-E1 51.71-56.20 NOM 0 | 51.71 | 56.20 | 20/45 | 3.0 | 93.00 | 47.00 | TDO-I12 | TDI-N12 |
| DDC-E1 51.71-56.20 NOM 2 | 51.71 | 56.20 | 20/45 | 3.0 | 93.00 | 47.00 | TDO-I12 | TDI-N12 |
| DDC-E1 56.21-65.00 NOM 0 | 56.21 | 65.00 | 20/45 | 3.0 | 93.00 | 51.00 | TDO-I13 | TDI-N13 |
| DDC-E1 56.21-65.00 NOM 2 | 56.21 | 65.00 | 20/45 | 3.0 | 93.00 | 51.00 | TDO-I13 | TDI-N13 |
- The drill tip is supplied in a grade that is suitable to machine the material group which is indicated in the drill head designation: P-Steel, M-Stainless Steel,
K-Cast Iron For quotation form and user guide, see pages 630-647 Ordering example: DDC-E1 36.00 20-P0 (1) Outer tube designation (2) Inner tube designation For holders, see pages: TDO-I (D18.41-65.00) (629)
