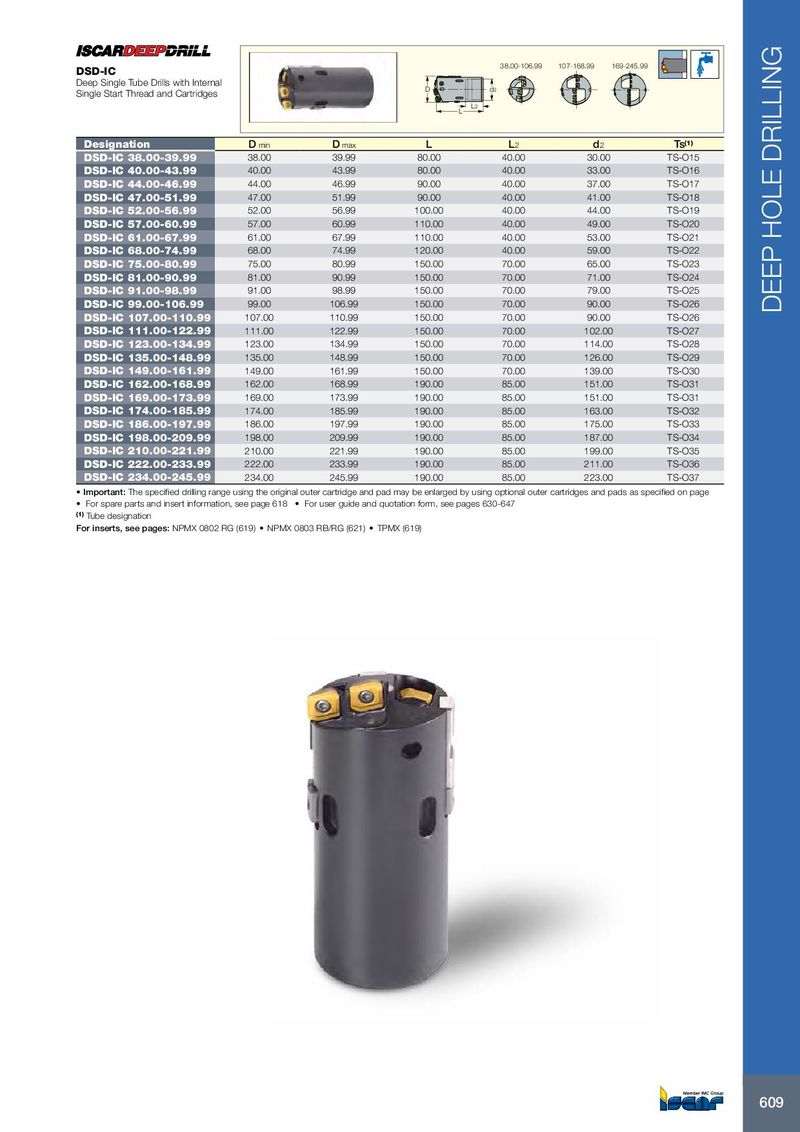

| SD-IC eep Single Tube Drills with Internal ngle Start Thread and Cartridges | D | L | L2 d2 38.00-106.99 | 107-168.99 | 169-245.99 | |||
| Designation | Dmin | Dmax | L | L2 | d2 | Ts(1) | ||
| DSD-IC 38.00-39.99 | 38.00 | 39.99 | 80.00 | 40.00 | 30.00 | TS-O15 | ||
| DSD-IC 40.00-43.99 | 40.00 | 43.99 | 80.00 | 40.00 | 33.00 | TS-O16 | ||
| DSD-IC 44.00-46.99 | 44.00 | 46.99 | 90.00 | 40.00 | 37.00 | TS-O17 | ||
| DSD-IC 47.00-51.99 | 47.00 | 51.99 | 90.00 | 40.00 | 41.00 | TS-O18 | ||
| DSD-IC 52.00-56.99 | 52.00 | 56.99 | 100.00 | 40.00 | 44.00 | TS-O19 | ||
| DSD-IC 57.00-60.99 | 57.00 | 60.99 | 110.00 | 40.00 | 49.00 | TS-O20 | ||
| DSD-IC 61.00-67.99 | 61.00 | 67.99 | 110.00 | 40.00 | 53.00 | TS-O21 | ||
| DSD-IC 68.00-74.99 | 68.00 | 74.99 | 120.00 | 40.00 | 59.00 | TS-O22 | ||
| DSD-IC 75.00-80.99 | 75.00 | 80.99 | 150.00 | 70.00 | 65.00 | TS-O23 | ||
| DSD-IC 81.00-90.99 | 81.00 | 90.99 | 150.00 | 70.00 | 71.00 | TS-O24 | ||
| DSD-IC 91.00-98.99 | 91.00 | 98.99 | 150.00 | 70.00 | 79.00 | TS-O25 | ||
| DSD-IC 99.00-106.99 | 99.00 | 106.99 | 150.00 | 70.00 | 90.00 | TS-O26 | ||
| DSD-IC 107.00-110.99 | 107.00 | 110.99 | 150.00 | 70.00 | 90.00 | TS-O26 | ||
| DSD-IC 111.00-122.99 | 111.00 | 122.99 | 150.00 | 70.00 | 102.00 | TS-O27 | ||
| DSD-IC 123.00-134.99 | 123.00 | 134.99 | 150.00 | 70.00 | 114.00 | TS-O28 | ||
| DSD-IC 135.00-148.99 | 135.00 | 148.99 | 150.00 | 70.00 | 126.00 | TS-O29 | ||
| DSD-IC 149.00-161.99 | 149.00 | 161.99 | 150.00 | 70.00 | 139.00 | TS-O30 | ||
| DSD-IC 162.00-168.99 | 162.00 | 168.99 | 190.00 | 85.00 | 151.00 | TS-O31 | ||
| DSD-IC 169.00-173.99 | 169.00 | 173.99 | 190.00 | 85.00 | 151.00 | TS-O31 | ||
| DSD-IC 174.00-185.99 | 174.00 | 185.99 | 190.00 | 85.00 | 163.00 | TS-O32 | ||
| DSD-IC 186.00-197.99 | 186.00 | 197.99 | 190.00 | 85.00 | 175.00 | TS-O33 | ||
| DSD-IC 198.00-209.99 | 198.00 | 209.99 | 190.00 | 85.00 | 187.00 | TS-O34 | ||
| DSD-IC 210.00-221.99 | 210.00 | 221.99 | 190.00 | 85.00 | 199.00 | TS-O35 | ||
| DSD-IC 222.00-233.99 | 222.00 | 233.99 | 190.00 | 85.00 | 211.00 | TS-O36 | ||
| DSD-IC 234.00-245.99 | 234.00 | 245.99 | 190.00 | 85.00 | 223.00 | TS-O37 |
- Important: The specified drilling range using the original outer cartridge and pad may be enlarged by using optional outer cartridges and pads as specified on page
- For spare parts and insert information, see page 618
- For user guide and quotation form, see pages 630-647
(1) Tube designation For inserts, see pages: NPMX 0802 RG (619) NPMX 0803 RB/RG (621) TPMX (619)
