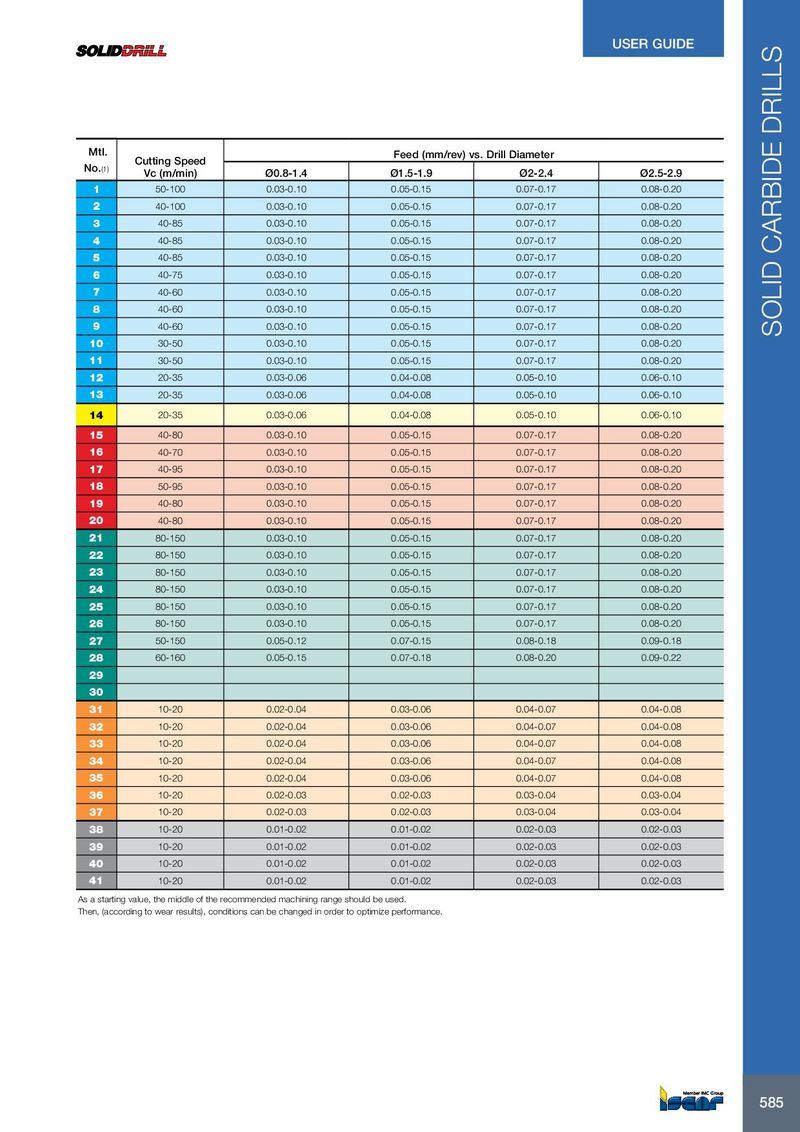

Mtl. Feed (mm/rev) vs. Drill Diameter
Cutting Speed
| No.(1) | Vc (m/min) | Ø0.8-1.4 | Ø1.5-1.9 | Ø2-2.4 | Ø2.5-2.9 |
| 1 | 50-100 | 0.03-0.10 | 0.05-0.15 | 0.07-0.17 | 0.08-0.20 |
| 2 | 40-100 | 0.03-0.10 | 0.05-0.15 | 0.07-0.17 | 0.08-0.20 |
| 3 | 40-85 | 0.03-0.10 | 0.05-0.15 | 0.07-0.17 | 0.08-0.20 |
| 4 | 40-85 | 0.03-0.10 | 0.05-0.15 | 0.07-0.17 | 0.08-0.20 |
| 5 | 40-85 | 0.03-0.10 | 0.05-0.15 | 0.07-0.17 | 0.08-0.20 |
| 6 | 40-75 | 0.03-0.10 | 0.05-0.15 | 0.07-0.17 | 0.08-0.20 |
| 7 | 40-60 | 0.03-0.10 | 0.05-0.15 | 0.07-0.17 | 0.08-0.20 |
| 8 | 40-60 | 0.03-0.10 | 0.05-0.15 | 0.07-0.17 | 0.08-0.20 |
| 9 | 40-60 | 0.03-0.10 | 0.05-0.15 | 0.07-0.17 | 0.08-0.20 |
| 10 | 30-50 | 0.03-0.10 | 0.05-0.15 | 0.07-0.17 | 0.08-0.20 |
| 11 | 30-50 | 0.03-0.10 | 0.05-0.15 | 0.07-0.17 | 0.08-0.20 |
| 12 | 20-35 | 0.03-0.06 | 0.04-0.08 | 0.05-0.10 | 0.06-0.10 |
| 13 | 20-35 | 0.03-0.06 | 0.04-0.08 | 0.05-0.10 | 0.06-0.10 |
| 14 | 20-35 | 0.03-0.06 | 0.04-0.08 | 0.05-0.10 | 0.06-0.10 |
| 15 | 40-80 | 0.03-0.10 | 0.05-0.15 | 0.07-0.17 | 0.08-0.20 |
| 16 | 40-70 | 0.03-0.10 | 0.05-0.15 | 0.07-0.17 | 0.08-0.20 |
| 17 | 40-95 | 0.03-0.10 | 0.05-0.15 | 0.07-0.17 | 0.08-0.20 |
| 18 | 50-95 | 0.03-0.10 | 0.05-0.15 | 0.07-0.17 | 0.08-0.20 |
| 19 | 40-80 | 0.03-0.10 | 0.05-0.15 | 0.07-0.17 | 0.08-0.20 |
| 20 | 40-80 | 0.03-0.10 | 0.05-0.15 | 0.07-0.17 | 0.08-0.20 |
| 21 | 80-150 | 0.03-0.10 | 0.05-0.15 | 0.07-0.17 | 0.08-0.20 |
| 22 | 80-150 | 0.03-0.10 | 0.05-0.15 | 0.07-0.17 | 0.08-0.20 |
| 23 | 80-150 | 0.03-0.10 | 0.05-0.15 | 0.07-0.17 | 0.08-0.20 |
| 24 | 80-150 | 0.03-0.10 | 0.05-0.15 | 0.07-0.17 | 0.08-0.20 |
| 25 | 80-150 | 0.03-0.10 | 0.05-0.15 | 0.07-0.17 | 0.08-0.20 |
| 26 | 80-150 | 0.03-0.10 | 0.05-0.15 | 0.07-0.17 | 0.08-0.20 |
| 27 | 50-150 | 0.05-0.12 | 0.07-0.15 | 0.08-0.18 | 0.09-0.18 |
| 28 | 60-160 | 0.05-0.15 | 0.07-0.18 | 0.08-0.20 | 0.09-0.22 |
29
30
| 31 | 10-20 | 0.02-0.04 | 0.03-0.06 | 0.04-0.07 | 0.04-0.08 |
| 32 | 10-20 | 0.02-0.04 | 0.03-0.06 | 0.04-0.07 | 0.04-0.08 |
| 33 | 10-20 | 0.02-0.04 | 0.03-0.06 | 0.04-0.07 | 0.04-0.08 |
| 34 | 10-20 | 0.02-0.04 | 0.03-0.06 | 0.04-0.07 | 0.04-0.08 |
| 35 | 10-20 | 0.02-0.04 | 0.03-0.06 | 0.04-0.07 | 0.04-0.08 |
| 36 | 10-20 | 0.02-0.03 | 0.02-0.03 | 0.03-0.04 | 0.03-0.04 |
| 37 | 10-20 | 0.02-0.03 | 0.02-0.03 | 0.03-0.04 | 0.03-0.04 |
| 38 | 10-20 | 0.01-0.02 | 0.01-0.02 | 0.02-0.03 | 0.02-0.03 |
| 39 | 10-20 | 0.01-0.02 | 0.01-0.02 | 0.02-0.03 | 0.02-0.03 |
| 40 | 10-20 | 0.01-0.02 | 0.01-0.02 | 0.02-0.03 | 0.02-0.03 |
| 41 | 10-20 | 0.01-0.02 | 0.01-0.02 | 0.02-0.03 | 0.02-0.03 |
As a starting value, the middle of the recommended machining range should be used. Then, (according to wear results), conditions can be changed in order to optimize performance.
