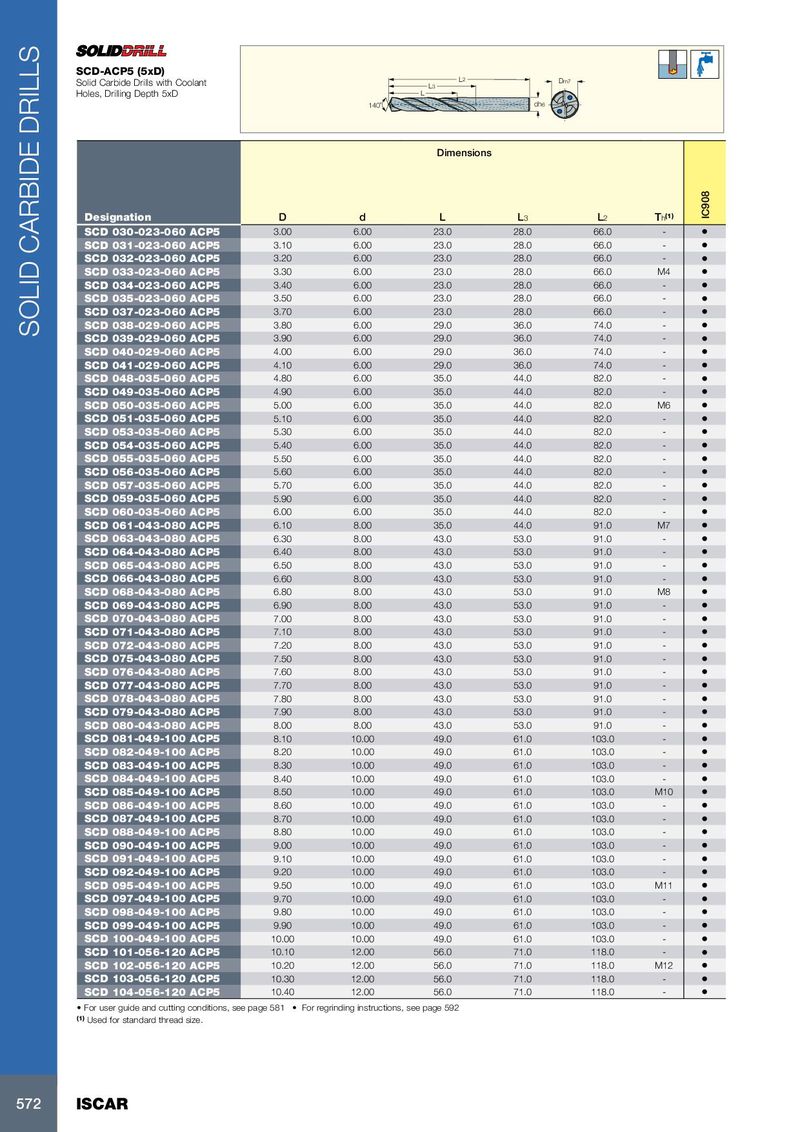

SCD-ACP5 (5xD) Solid Carbide Drills with Coolant L 2 D m7 L 3 Holes, Drilling Depth 5xD L 140˚ dh6 Dimensions Designation D d L L 3 L 2 T h (1) IC908 SCD 030-023-060 ACP5 3.00 6.00 23.0 28.0 66.0 - • SCD 031-023-060 ACP5 3.10 6.00 23.0 28.0 66.0 - • SCD 032-023-060 ACP5 3.20 6.00 23.0 28.0 66.0 - • SCD 033-023-060 ACP5 3.30 6.00 23.0 28.0 66.0 M4 • SCD 034-023-060 ACP5 3.40 6.00 23.0 28.0 66.0 - • SCD 035-023-060 ACP5 3.50 6.00 23.0 28.0 66.0 - • SCD 037-023-060 ACP5 3.70 6.00 23.0 28.0 66.0 - • SCD 038-029-060 ACP5 3.80 6.00 29.0 36.0 74.0 - • SOLID CARBIDE DRILLS SCD 039-029-060 ACP5 3.90 6.00 29.0 36.0 74.0 - • SCD 040-029-060 ACP5 4.00 6.00 29.0 36.0 74.0 - • SCD 041-029-060 ACP5 4.10 6.00 29.0 36.0 74.0 - • SCD 048-035-060 ACP5 4.80 6.00 35.0 44.0 82.0 - • SCD 049-035-060 ACP5 4.90 6.00 35.0 44.0 82.0 - • SCD 050-035-060 ACP5 5.00 6.00 35.0 44.0 82.0 M6 • SCD 051-035-060 ACP5 5.10 6.00 35.0 44.0 82.0 - • SCD 053-035-060 ACP5 5.30 6.00 35.0 44.0 82.0 - • SCD 054-035-060 ACP5 5.40 6.00 35.0 44.0 82.0 - • SCD 055-035-060 ACP5 5.50 6.00 35.0 44.0 82.0 - • SCD 056-035-060 ACP5 5.60 6.00 35.0 44.0 82.0 - • SCD 057-035-060 ACP5 5.70 6.00 35.0 44.0 82.0 - • SCD 059-035-060 ACP5 5.90 6.00 35.0 44.0 82.0 - • SCD 060-035-060 ACP5 6.00 6.00 35.0 44.0 82.0 - • SCD 061-043-080 ACP5 6.10 8.00 35.0 44.0 91.0 M7 • SCD 063-043-080 ACP5 6.30 8.00 43.0 53.0 91.0 - • SCD 064-043-080 ACP5 6.40 8.00 43.0 53.0 91.0 - • SCD 065-043-080 ACP5 6.50 8.00 43.0 53.0 91.0 - • SCD 066-043-080 ACP5 6.60 8.00 43.0 53.0 91.0 - • SCD 068-043-080 ACP5 6.80 8.00 43.0 53.0 91.0 M8 • SCD 069-043-080 ACP5 6.90 8.00 43.0 53.0 91.0 - • SCD 070-043-080 ACP5 7.00 8.00 43.0 53.0 91.0 - • SCD 071-043-080 ACP5 7.10 8.00 43.0 53.0 91.0 - • SCD 072-043-080 ACP5 7.20 8.00 43.0 53.0 91.0 - • SCD 075-043-080 ACP5 7.50 8.00 43.0 53.0 91.0 - • SCD 076-043-080 ACP5 7.60 8.00 43.0 53.0 91.0 - • SCD 077-043-080 ACP5 7.70 8.00 43.0 53.0 91.0 - • SCD 078-043-080 ACP5 7.80 8.00 43.0 53.0 91.0 - • SCD 079-043-080 ACP5 7.90 8.00 43.0 53.0 91.0 - • SCD 080-043-080 ACP5 8.00 8.00 43.0 53.0 91.0 - • SCD 081-049-100 ACP5 8.10 10.00 49.0 61.0 103.0 - • SCD 082-049-100 ACP5 8.20 10.00 49.0 61.0 103.0 - • SCD 083-049-100 ACP5 8.30 10.00 49.0 61.0 103.0 - • SCD 084-049-100 ACP5 8.40 10.00 49.0 61.0 103.0 - • SCD 085-049-100 ACP5 8.50 10.00 49.0 61.0 103.0 M10 • SCD 086-049-100 ACP5 8.60 10.00 49.0 61.0 103.0 - • SCD 087-049-100 ACP5 8.70 10.00 49.0 61.0 103.0 - • SCD 088-049-100 ACP5 8.80 10.00 49.0 61.0 103.0 - • SCD 090-049-100 ACP5 9.00 10.00 49.0 61.0 103.0 - • SCD 091-049-100 ACP5 9.10 10.00 49.0 61.0 103.0 - • SCD 092-049-100 ACP5 9.20 10.00 49.0 61.0 103.0 - • SCD 095-049-100 ACP5 9.50 10.00 49.0 61.0 103.0 M11 • SCD 097-049-100 ACP5 9.70 10.00 49.0 61.0 103.0 - • SCD 098-049-100 ACP5 9.80 10.00 49.0 61.0 103.0 - • SCD 099-049-100 ACP5 9.90 10.00 49.0 61.0 103.0 - • SCD 100-049-100 ACP5 10.00 10.00 49.0 61.0 103.0 - • SCD 101-056-120 ACP5 10.10 12.00 56.0 71.0 118.0 - • SCD 102-056-120 ACP5 10.20 12.00 56.0 71.0 118.0 M12 • SCD 103-056-120 ACP5 10.30 12.00 56.0 71.0 118.0 - • SCD 104-056-120 ACP5 10.40 12.00 56.0 71.0 118.0 - • • For user guide and cutting conditions, see page 581 • For regrinding instructions, see page 592 (1) Used for standard thread size. 572 ISCAR
