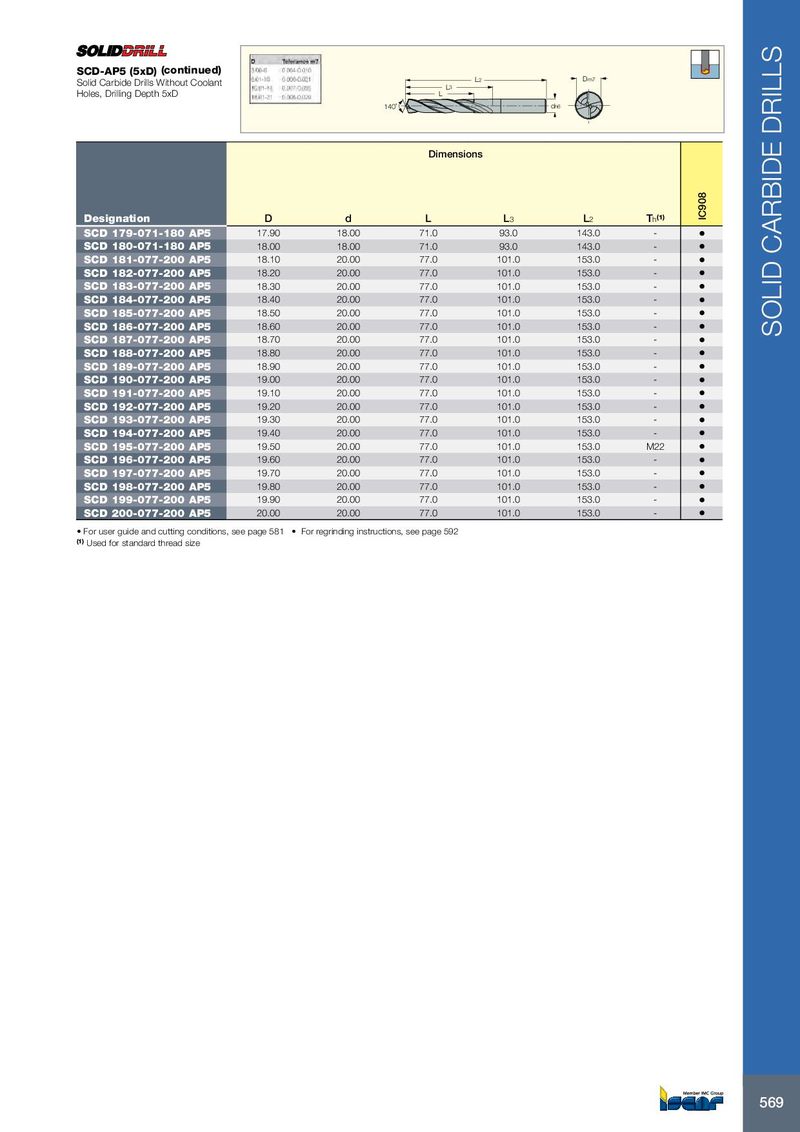

Каталог Iscar вращающийся инструмент 2017 - страница 573

SCD-AP5 (5xD) (continued) Solid Carbide Drills Without Coolant L 2 Dm7 L 3 Holes, Drilling Depth 5xD L 140˚ dh6 Dimensions Designation D d L L 3 L 2 T h (1) IC908 SCD 179-071-180 AP5 17.90 18.00 71.0 93.0 143.0 - • SCD 180-071-180 AP5 18.00 18.00 71.0 93.0 143.0 - • SCD 181-077-200 AP5 18.10 20.00 77.0 101.0 153.0 - • SCD 182-077-200 AP5 18.20 20.00 77.0 101.0 153.0 - • SCD 183-077-200 AP5 18.30 20.00 77.0 101.0 153.0 - • SCD 184-077-200 AP5 18.40 20.00 77.0 101.0 153.0 - • SCD 185-077-200 AP5 18.50 20.00 77.0 101.0 153.0 - • SCD 186-077-200 AP5 18.60 20.00 77.0 101.0 153.0 - • SOLID CARBIDE DRILLS SCD 187-077-200 AP5 18.70 20.00 77.0 101.0 153.0 - • SCD 188-077-200 AP5 18.80 20.00 77.0 101.0 153.0 - • SCD 189-077-200 AP5 18.90 20.00 77.0 101.0 153.0 - • SCD 190-077-200 AP5 19.00 20.00 77.0 101.0 153.0 - • SCD 191-077-200 AP5 19.10 20.00 77.0 101.0 153.0 - • SCD 192-077-200 AP5 19.20 20.00 77.0 101.0 153.0 - • SCD 193-077-200 AP5 19.30 20.00 77.0 101.0 153.0 - • SCD 194-077-200 AP5 19.40 20.00 77.0 101.0 153.0 - • SCD 195-077-200 AP5 19.50 20.00 77.0 101.0 153.0 M22 • SCD 196-077-200 AP5 19.60 20.00 77.0 101.0 153.0 - • SCD 197-077-200 AP5 19.70 20.00 77.0 101.0 153.0 - • SCD 198-077-200 AP5 19.80 20.00 77.0 101.0 153.0 - • SCD 199-077-200 AP5 19.90 20.00 77.0 101.0 153.0 - • SCD 200-077-200 AP5 20.00 20.00 77.0 101.0 153.0 - • • For user guide and cutting conditions, see page 581 • For regrinding instructions, see page 592 (1) Used for standard thread size 569
