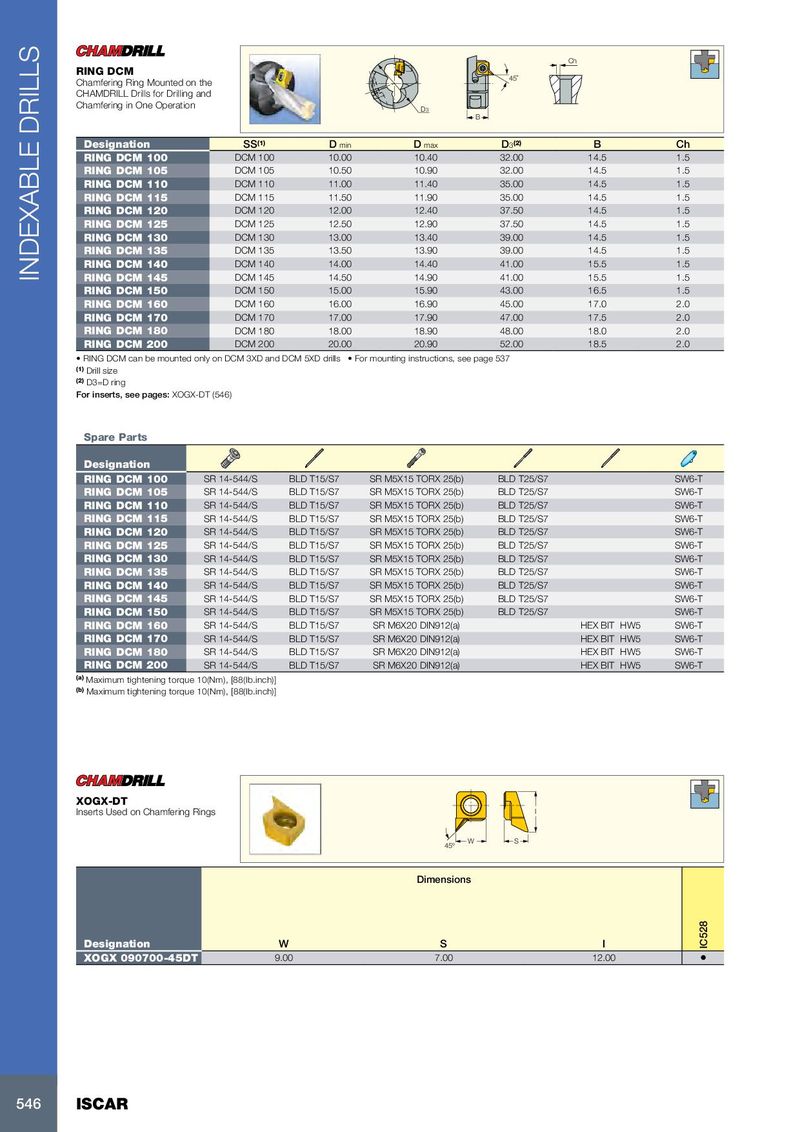

Ch RING DCM 45˚ Chamfering Ring Mounted on the CHAMDRILL Drills for Drilling and Chamfering in One Operation D3 B Designation SS (1) D min D max D 3 (2) B Ch RING DCM 100 DCM 100 10.00 10.40 32.00 14.5 1.5 RING DCM 105 DCM 105 10.50 10.90 32.00 14.5 1.5 RING DCM 110 DCM 110 11.00 11.40 35.00 14.5 1.5 RING DCM 115 DCM 115 11.50 11.90 35.00 14.5 1.5 RING DCM 120 DCM 120 12.00 12.40 37.50 14.5 1.5 RING DCM 125 DCM 125 12.50 12.90 37.50 14.5 1.5 RING DCM 130 DCM 130 13.00 13.40 39.00 14.5 1.5 RING DCM 135 DCM 135 13.50 13.90 39.00 14.5 1.5 RING DCM 140 DCM 140 14.00 14.40 41.00 15.5 1.5 INDEXABLE DRILLS RING DCM 145 DCM 145 14.50 14.90 41.00 15.5 1.5 RING DCM 150 DCM 150 15.00 15.90 43.00 16.5 1.5 RING DCM 160 DCM 160 16.00 16.90 45.00 17.0 2.0 RING DCM 170 DCM 170 17.00 17.90 47.00 17.5 2.0 RING DCM 180 DCM 180 18.00 18.90 48.00 18.0 2.0 RING DCM 200 DCM 200 20.00 20.90 52.00 18.5 2.0 • RING DCM can be mounted only on DCM 3XD and DCM 5XD drills • For mounting instructions, see page 537 (1) Drill size (2) D3=D ring For inserts, see pages: XOGX-DT (546) Spare Parts Designation RING DCM 100 SR 14-544/S BLD T15/S7 SR M5X15 TORX 25(b) BLD T25/S7 SW6-T RING DCM 105 SR 14-544/S BLD T15/S7 SR M5X15 TORX 25(b) BLD T25/S7 SW6-T RING DCM 110 SR 14-544/S BLD T15/S7 SR M5X15 TORX 25(b) BLD T25/S7 SW6-T RING DCM 115 SR 14-544/S BLD T15/S7 SR M5X15 TORX 25(b) BLD T25/S7 SW6-T RING DCM 120 SR 14-544/S BLD T15/S7 SR M5X15 TORX 25(b) BLD T25/S7 SW6-T RING DCM 125 SR 14-544/S BLD T15/S7 SR M5X15 TORX 25(b) BLD T25/S7 SW6-T RING DCM 130 SR 14-544/S BLD T15/S7 SR M5X15 TORX 25(b) BLD T25/S7 SW6-T RING DCM 135 SR 14-544/S BLD T15/S7 SR M5X15 TORX 25(b) BLD T25/S7 SW6-T RING DCM 140 SR 14-544/S BLD T15/S7 SR M5X15 TORX 25(b) BLD T25/S7 SW6-T RING DCM 145 SR 14-544/S BLD T15/S7 SR M5X15 TORX 25(b) BLD T25/S7 SW6-T RING DCM 150 SR 14-544/S BLD T15/S7 SR M5X15 TORX 25(b) BLD T25/S7 SW6-T RING DCM 160 SR 14-544/S BLD T15/S7 SR M6X20 DIN912(a) HEX BIT HW5 SW6-T RING DCM 170 SR 14-544/S BLD T15/S7 SR M6X20 DIN912(a) HEX BIT HW5 SW6-T RING DCM 180 SR 14-544/S BLD T15/S7 SR M6X20 DIN912(a) HEX BIT HW5 SW6-T RING DCM 200 SR 14-544/S BLD T15/S7 SR M6X20 DIN912(a) HEX BIT HW5 SW6-T (a) Maximum tightening torque 10(Nm), [88(lb.inch)] (b) Maximum tightening torque 10(Nm), [88(lb.inch)] XOGX-DT Inserts Used on Chamfering Rings I W S 45º Dimensions Designation W S l IC528 XOGX 090700-45DT 9.00 7.00 12.00 • 546 ISCAR
