Каталог Iscar вращающийся инструмент 2017 - страница 532

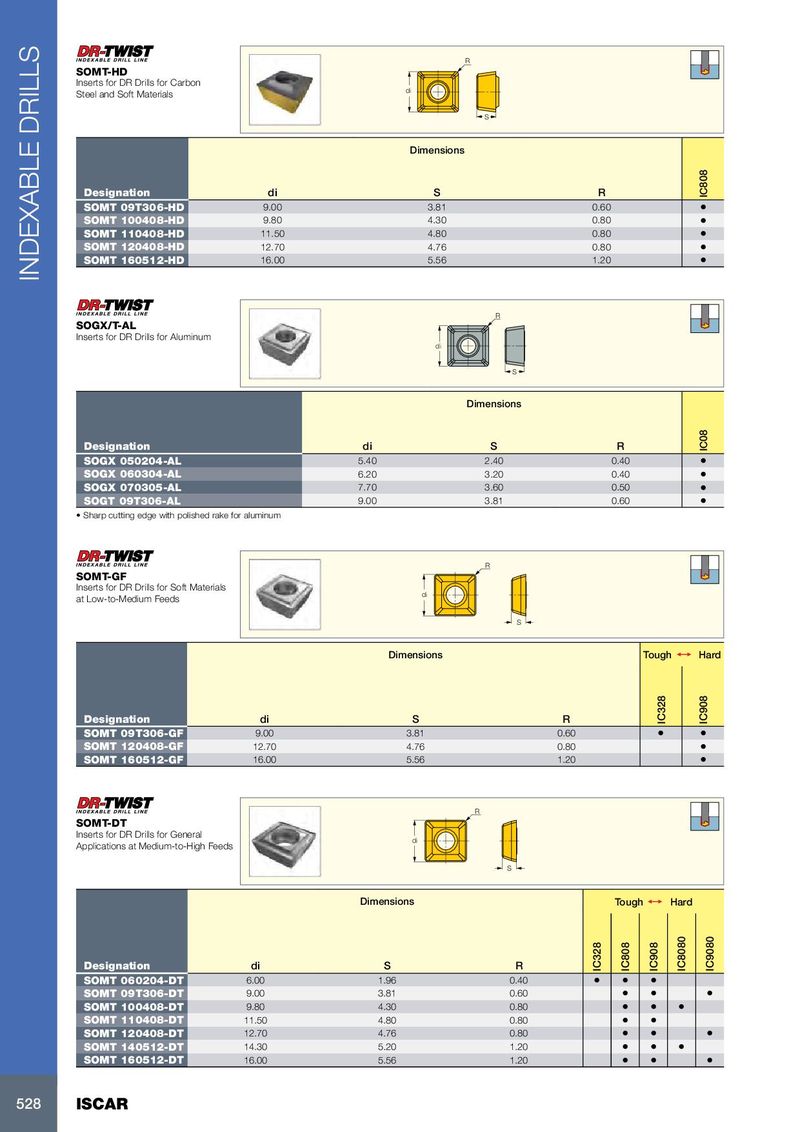

R SOMT-HD Inserts for DR Drills for Carbon di Steel and Soft Materials S Dimensions Designation di S R IC808 SOMT 09T306-HD 9.00 3.81 0.60 • SOMT 100408-HD 9.80 4.30 0.80 • SOMT 110408-HD 11.50 4.80 0.80 • SOMT 120408-HD 12.70 4.76 0.80 • SOMT 160512-HD 16.00 5.56 1.20 • INDEXABLE DRILLS R SOGX/T-AL Inserts for DR Drills for Aluminum di S Dimensions Designation di S R IC08 SOGX 050204-AL 5.40 2.40 0.40 • SOGX 060304-AL 6.20 3.20 0.40 • SOGX 070305-AL 7.70 3.60 0.50 • SOGT 09T306-AL 9.00 3.81 0.60 • • Sharp cutting edge with polished rake for aluminum R SOMT-GF Inserts for DR Drills for Soft Materials di at Low-to-Medium Feeds S Dimensions Tough 1  Hard Designation di S R IC328 IC908 SOMT 09T306-GF 9.00 3.81 0.60 • • SOMT 120408-GF 12.70 4.76 0.80 • SOMT 160512-GF 16.00 5.56 1.20 • R SOMT-DT Inserts for DR Drills for General di Applications at Medium-to-High Feeds S Dimensions Tough 1  Hard Designation di S R IC328 IC808 IC908 IC8080 IC9080 SOMT 060204-DT 6.00 1.96 0.40 • • • SOMT 09T306-DT 9.00 3.81 0.60 • • • SOMT 100408-DT 9.80 4.30 0.80 • • • SOMT 110408-DT 11.50 4.80 0.80 • • SOMT 120408-DT 12.70 4.76 0.80 • • • SOMT 140512-DT 14.30 5.20 1.20 • • • SOMT 160512-DT 16.00 5.56 1.20 • • • 528 ISCAR
