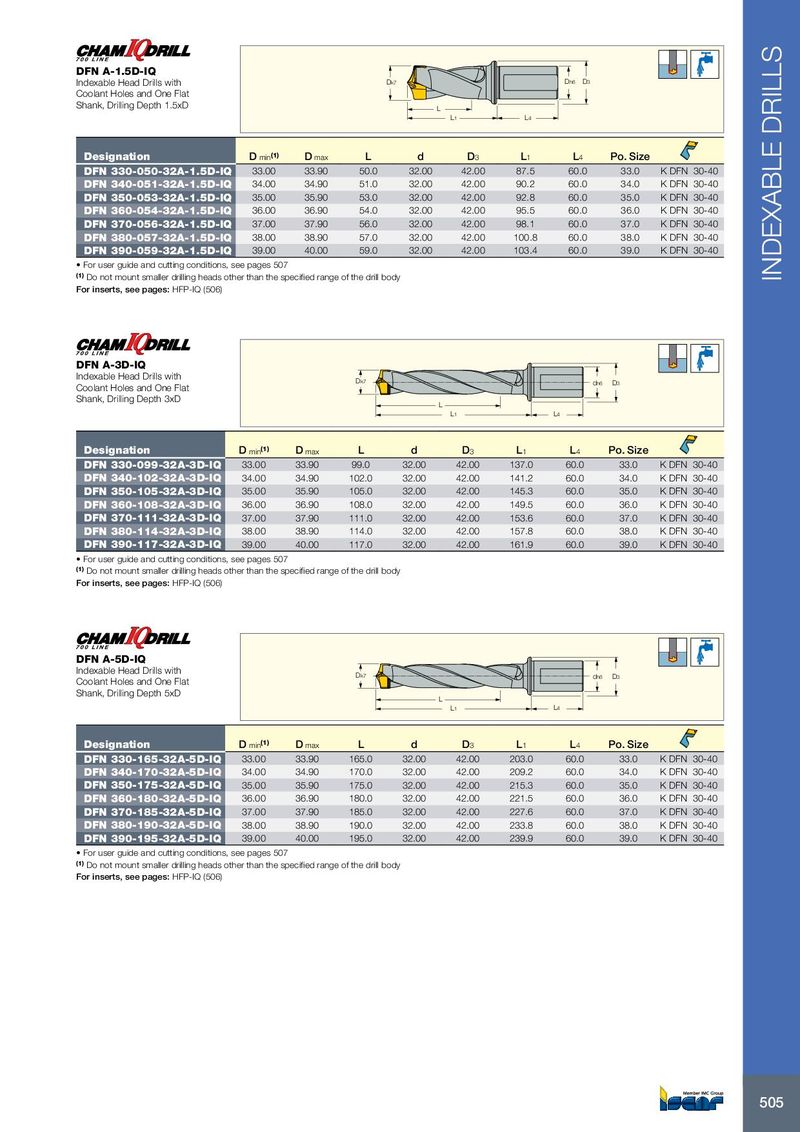

DFN A-1.5D-IQ Indexable Head Drills with Dk7 Dh6 D3 Coolant Holes and One Flat Shank, Drilling Depth 1.5xD L L1 L4 Designation D min (1) D max L d D 3 L 1 L 4 Po. Size DFN 330-050-32A-1.5D-IQ 33.00 33.90 50.0 32.00 42.00 87.5 60.0 33.0 K DFN 30-40 DFN 340-051-32A-1.5D-IQ 34.00 34.90 51.0 32.00 42.00 90.2 60.0 34.0 K DFN 30-40 DFN 350-053-32A-1.5D-IQ 35.00 35.90 53.0 32.00 42.00 92.8 60.0 35.0 K DFN 30-40 DFN 360-054-32A-1.5D-IQ 36.00 36.90 54.0 32.00 42.00 95.5 60.0 36.0 K DFN 30-40 DFN 370-056-32A-1.5D-IQ 37.00 37.90 56.0 32.00 42.00 98.1 60.0 37.0 K DFN 30-40 DFN 380-057-32A-1.5D-IQ 38.00 38.90 57.0 32.00 42.00 100.8 60.0 38.0 K DFN 30-40 DFN 390-059-32A-1.5D-IQ 39.00 40.00 59.0 32.00 42.00 103.4 60.0 39.0 K DFN 30-40 • For user guide and cutting conditions, see pages 507 (1) Do not mount smaller drilling heads other than the specified range of the drill body INDEXABLE DRILLS For inserts, see pages: HFP-IQ (506) DFN A-3D-IQ Indexable Head Drills with Dk7 dh6 D3 Coolant Holes and One Flat Shank, Drilling Depth 3xD L L1 L4 Designation D min (1) D max L d D 3 L 1 L 4 Po. Size DFN 330-099-32A-3D-IQ 33.00 33.90 99.0 32.00 42.00 137.0 60.0 33.0 K DFN 30-40 DFN 340-102-32A-3D-IQ 34.00 34.90 102.0 32.00 42.00 141.2 60.0 34.0 K DFN 30-40 DFN 350-105-32A-3D-IQ 35.00 35.90 105.0 32.00 42.00 145.3 60.0 35.0 K DFN 30-40 DFN 360-108-32A-3D-IQ 36.00 36.90 108.0 32.00 42.00 149.5 60.0 36.0 K DFN 30-40 DFN 370-111-32A-3D-IQ 37.00 37.90 111.0 32.00 42.00 153.6 60.0 37.0 K DFN 30-40 DFN 380-114-32A-3D-IQ 38.00 38.90 114.0 32.00 42.00 157.8 60.0 38.0 K DFN 30-40 DFN 390-117-32A-3D-IQ 39.00 40.00 117.0 32.00 42.00 161.9 60.0 39.0 K DFN 30-40 • For user guide and cutting conditions, see pages 507 (1) Do not mount smaller drilling heads other than the specified range of the drill body For inserts, see pages: HFP-IQ (506) DFN A-5D-IQ Indexable Head Drills with Dk7 dh6 D3 Coolant Holes and One Flat Shank, Drilling Depth 5xD L L1 L4 Designation D min (1) D max L d D 3 L 1 L 4 Po. Size DFN 330-165-32A-5D-IQ 33.00 33.90 165.0 32.00 42.00 203.0 60.0 33.0 K DFN 30-40 DFN 340-170-32A-5D-IQ 34.00 34.90 170.0 32.00 42.00 209.2 60.0 34.0 K DFN 30-40 DFN 350-175-32A-5D-IQ 35.00 35.90 175.0 32.00 42.00 215.3 60.0 35.0 K DFN 30-40 DFN 360-180-32A-5D-IQ 36.00 36.90 180.0 32.00 42.00 221.5 60.0 36.0 K DFN 30-40 DFN 370-185-32A-5D-IQ 37.00 37.90 185.0 32.00 42.00 227.6 60.0 37.0 K DFN 30-40 DFN 380-190-32A-5D-IQ 38.00 38.90 190.0 32.00 42.00 233.8 60.0 38.0 K DFN 30-40 DFN 390-195-32A-5D-IQ 39.00 40.00 195.0 32.00 42.00 239.9 60.0 39.0 K DFN 30-40 • For user guide and cutting conditions, see pages 507 (1) Do not mount smaller drilling heads other than the specified range of the drill body For inserts, see pages: HFP-IQ (506) 505
