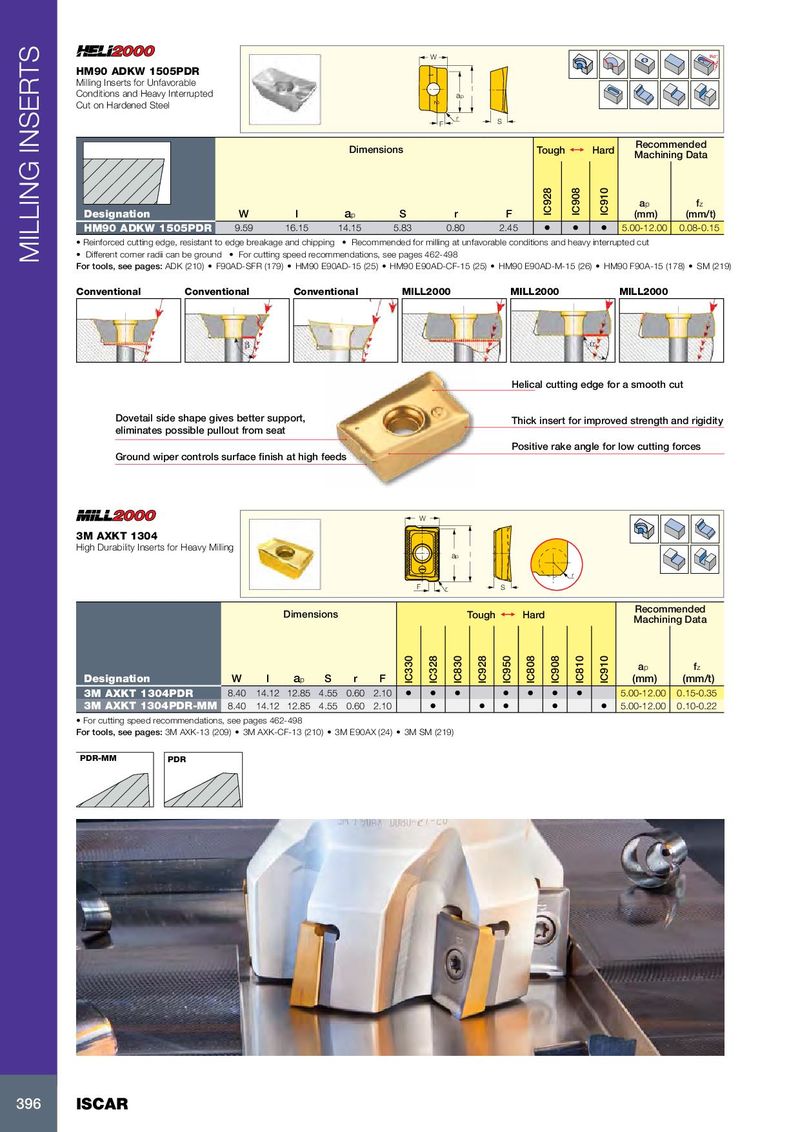

W Rd° HM90 ADKW 1505PDR 1 Milling Inserts for Unfavorable l Conditions and Heavy Interrupted 2 ap Cut on Hardened Steel r F S Recommended Dimensions Tough 1  Hard Machining Data a p f z Designation W l a p S r F IC928 IC908 IC910 (mm) (mm/t) HM90 ADKW 1505PDR 9.59 16.15 14.15 5.83 0.80 2.45 • • • 5.00-12.00 0.08-0.15 • Reinforced cutting edge, resistant to edge breakage and chipping • Recommended for milling at unfavorable conditions and heavy interrupted cut • Different corner radii can be ground • For cutting speed recommendations, see pages 462-498 MILLING INSERTS For tools, see pages: ADK (210) • F90AD-SFR (179) • HM90 E90AD-15 (25) • HM90 E90AD-CF-15 (25) • HM90 E90AD-M-15 (26) • HM90 F90A-15 (178) • SM (219) Conventional Conventional Conventional MILL2000 MILL2000 MILL2000 Helical cutting edge for a smooth cut Dovetail side shape gives better support, Thick insert for improved strength and rigidity eliminates possible pullout from seat Positive rake angle for low cutting forces Ground wiper controls surface finish at high feeds W 3M AXKT 1304 High Durability Inserts for Heavy Milling ap l r F r S Recommended Dimensions Tough 1  Hard Machining Data a p f z Designation W l a p S r F IC330 IC328 IC830 IC928 IC950 IC808 IC908 IC810 IC910 (mm) (mm/t) 3M AXKT 1304PDR 8.40 14.12 12.85 4.55 0.60 2.10 • • • • • • • 5.00-12.00 0.15-0.35 3M AXKT 1304PDR-MM 8.40 14.12 12.85 4.55 0.60 2.10 • • • • • 5.00-12.00 0.10-0.22 • For cutting speed recommendations, see pages 462-498 For tools, see pages: 3M AXK-13 (209) • 3M AXK-CF-13 (210) • 3M E90AX (24) • 3M SM (219) PDR-MM PDR 396 ISCAR
