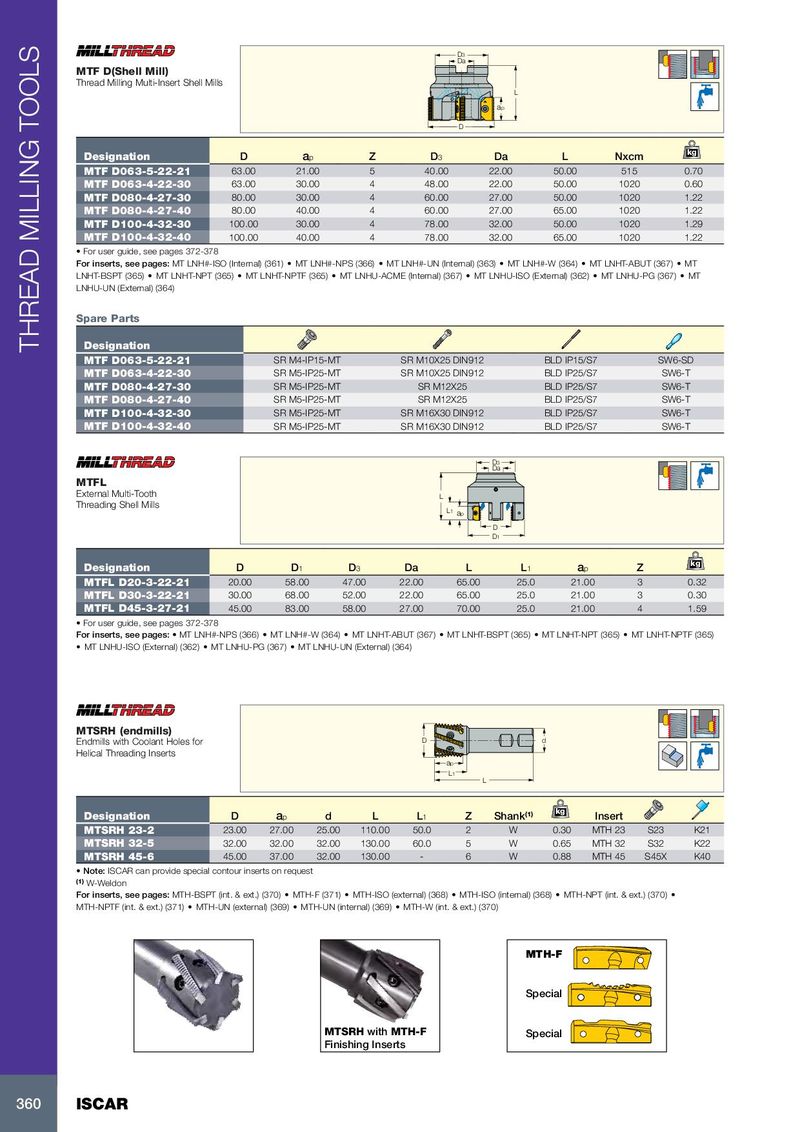

D3 Da MTF D(Shell Mill) Thread Milling Multi-Insert Shell Mills L ap D kg Designation D a p Z D 3 Da L Nxcm MTF D063-5-22-21 63.00 21.00 5 40.00 22.00 50.00 515 0.70 MTF D063-4-22-30 63.00 30.00 4 48.00 22.00 50.00 1020 0.60 MTF D080-4-27-30 80.00 30.00 4 60.00 27.00 50.00 1020 1.22 MTF D080-4-27-40 80.00 40.00 4 60.00 27.00 65.00 1020 1.22 MTF D100-4-32-30 100.00 30.00 4 78.00 32.00 50.00 1020 1.29 MTF D100-4-32-40 100.00 40.00 4 78.00 32.00 65.00 1020 1.22 • For user guide, see pages 372-378 For inserts, see pages: MT LNH#-ISO (Internal) (361) • MT LNH#-NPS (366) • MT LNH#-UN (Internal) (363) • MT LNH#-W (364) • MT LNHT-ABUT (367) • MT LNHT-BSPT (365) • MT LNHT-NPT (365) • MT LNHT-NPTF (365) • MT LNHU-ACME (Internal) (367) • MT LNHU-ISO (External) (362) • MT LNHU-PG (367) • MT LNHU-UN (External) (364) Spare Parts THREAD MILLING TOOLS Designation MTF D063-5-22-21 SR M4-IP15-MT SR M10X25 DIN912 BLD IP15/S7 SW6-SD MTF D063-4-22-30 SR M5-IP25-MT SR M10X25 DIN912 BLD IP25/S7 SW6-T MTF D080-4-27-30 SR M5-IP25-MT SR M12X25 BLD IP25/S7 SW6-T MTF D080-4-27-40 SR M5-IP25-MT SR M12X25 BLD IP25/S7 SW6-T MTF D100-4-32-30 SR M5-IP25-MT SR M16X30 DIN912 BLD IP25/S7 SW6-T MTF D100-4-32-40 SR M5-IP25-MT SR M16X30 DIN912 BLD IP25/S7 SW6-T D3 Da MTFL External Multi-Tooth L Threading Shell Mills L1 ap D D1 kg Designation D D 1 D 3 Da L L 1 a p Z MTFL D20-3-22-21 20.00 58.00 47.00 22.00 65.00 25.0 21.00 3 0.32 MTFL D30-3-22-21 30.00 68.00 52.00 22.00 65.00 25.0 21.00 3 0.30 MTFL D45-3-27-21 45.00 83.00 58.00 27.00 70.00 25.0 21.00 4 1.59 • For user guide, see pages 372-378 For inserts, see pages: • MT LNH#-NPS (366) • MT LNH#-W (364) • MT LNHT-ABUT (367) • MT LNHT-BSPT (365) • MT LNHT-NPT (365) • MT LNHT-NPTF (365) • MT LNHU-ISO (External) (362) • MT LNHU-PG (367) • MT LNHU-UN (External) (364) MTSRH (endmills) Endmills with Coolant Holes for D d Helical Threading Inserts ap L1 L Designation D a p d L L 1 Z Shank (1) kg Insert MTSRH 23-2 23.00 27.00 25.00 110.00 50.0 2 W 0.30 MTH 23 S23 K21 MTSRH 32-5 32.00 32.00 32.00 130.00 60.0 5 W 0.65 MTH 32 S32 K22 MTSRH 45-6 45.00 37.00 32.00 130.00 - 6 W 0.88 MTH 45 S45X K40 • Note: ISCAR can provide special contour inserts on request (1) W-Weldon For inserts, see pages: MTH-BSPT (int. & ext.) (370) • MTH-F (371) • MTH-ISO (external) (368) • MTH-ISO (internal) (368) • MTH-NPT (int. & ext.) (370) • MTH-NPTF (int. & ext.) (371) • MTH-UN (external) (369) • MTH-UN (internal) (369) • MTH-W (int. & ext.) (370) MTH-F Special MTSRH with MTH-F Special Finishing Inserts 360 ISCAR
