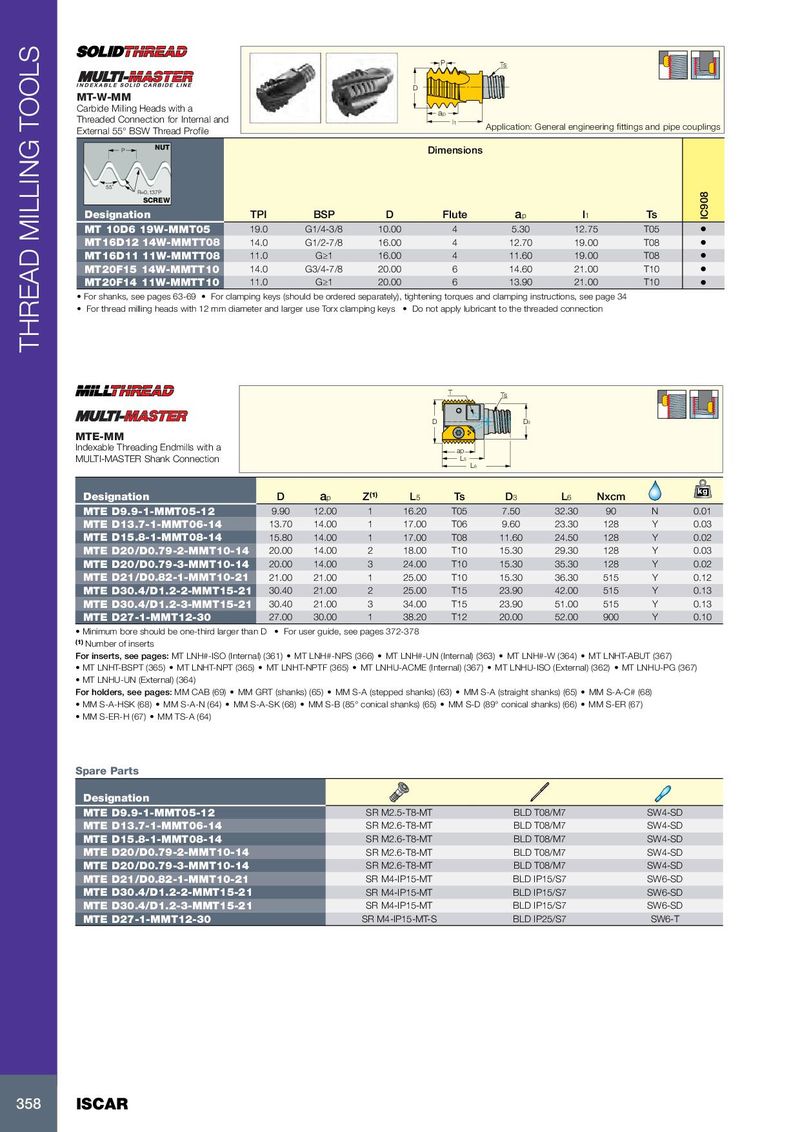

P Ts D MT-W-MM Carbide Milling Heads with a ap Threaded Connection for Internal and l1 Application: General engineering fittings and pipe couplings External 55° BSW Thread Profile P NUT Dimensions 55˚ R=0.137P SCREW Designation TPI BSP D Flute a p l 1 Ts IC908 MT 10D6 19W-MMT05 19.0 G1/4-3/8 10.00 4 5.30 12.75 T05 • MT16D12 14W-MMTT08 14.0 G1/2-7/8 16.00 4 12.70 19.00 T08 • MT16D11 11W-MMTT08 11.0 G≥1 16.00 4 11.60 19.00 T08 • MT20F15 14W-MMTT10 14.0 G3/4-7/8 20.00 6 14.60 21.00 T10 • MT20F14 11W-MMTT10 11.0 G≥1 20.00 6 13.90 21.00 T10 • • For shanks, see pages 63-69 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see page 34 • For thread milling heads with 12 mm diameter and larger use Torx clamping keys • Do not apply lubricant to the threaded connection THREAD MILLING TOOLS T Ts D D3 MTE-MM Indexable Threading Endmills with a ap MULTI-MASTER Shank Connection L5 L6 kg Designation D a p Z (1) L 5 Ts D 3 L 6 Nxcm MTE D9.9-1-MMT05-12 9.90 12.00 1 16.20 T05 7.50 32.30 90 N 0.01 MTE D13.7-1-MMT06-14 13.70 14.00 1 17.00 T06 9.60 23.30 128 Y 0.03 MTE D15.8-1-MMT08-14 15.80 14.00 1 17.00 T08 11.60 24.50 128 Y 0.02 MTE D20/D0.79-2-MMT10-14 20.00 14.00 2 18.00 T10 15.30 29.30 128 Y 0.03 MTE D20/D0.79-3-MMT10-14 20.00 14.00 3 24.00 T10 15.30 35.30 128 Y 0.02 MTE D21/D0.82-1-MMT10-21 21.00 21.00 1 25.00 T10 15.30 36.30 515 Y 0.12 MTE D30.4/D1.2-2-MMT15-21 30.40 21.00 2 25.00 T15 23.90 42.00 515 Y 0.13 MTE D30.4/D1.2-3-MMT15-21 30.40 21.00 3 34.00 T15 23.90 51.00 515 Y 0.13 MTE D27-1-MMT12-30 27.00 30.00 1 38.20 T12 20.00 52.00 900 Y 0.10 • Minimum bore should be one-third larger than D • For user guide, see pages 372-378 (1) Number of inserts For inserts, see pages: MT LNH#-ISO (Internal) (361) • MT LNH#-NPS (366) • MT LNH#-UN (Internal) (363) • MT LNH#-W (364) • MT LNHT-ABUT (367) • MT LNHT-BSPT (365) • MT LNHT-NPT (365) • MT LNHT-NPTF (365) • MT LNHU-ACME (Internal) (367) • MT LNHU-ISO (External) (362) • MT LNHU-PG (367) • MT LNHU-UN (External) (364) For holders, see pages: MM CAB (69) • MM GRT (shanks) (65) • MM S-A (stepped shanks) (63) • MM S-A (straight shanks) (65) • MM S-A-C# (68) • MM S-A-HSK (68) • MM S-A-N (64) • MM S-A-SK (68) • MM S-B (85° conical shanks) (65) • MM S-D (89° conical shanks) (66) • MM S-ER (67) • MM S-ER-H (67) • MM TS-A (64) Spare Parts Designation MTE D9.9-1-MMT05-12 SR M2.5-T8-MT BLD T08/M7 SW4-SD MTE D13.7-1-MMT06-14 SR M2.6-T8-MT BLD T08/M7 SW4-SD MTE D15.8-1-MMT08-14 SR M2.6-T8-MT BLD T08/M7 SW4-SD MTE D20/D0.79-2-MMT10-14 SR M2.6-T8-MT BLD T08/M7 SW4-SD MTE D20/D0.79-3-MMT10-14 SR M2.6-T8-MT BLD T08/M7 SW4-SD MTE D21/D0.82-1-MMT10-21 SR M4-IP15-MT BLD IP15/S7 SW6-SD MTE D30.4/D1.2-2-MMT15-21 SR M4-IP15-MT BLD IP15/S7 SW6-SD MTE D30.4/D1.2-3-MMT15-21 SR M4-IP15-MT BLD IP15/S7 SW6-SD MTE D27-1-MMT12-30 SR M4-IP15-MT-S BLD IP25/S7 SW6-T 358 ISCAR
