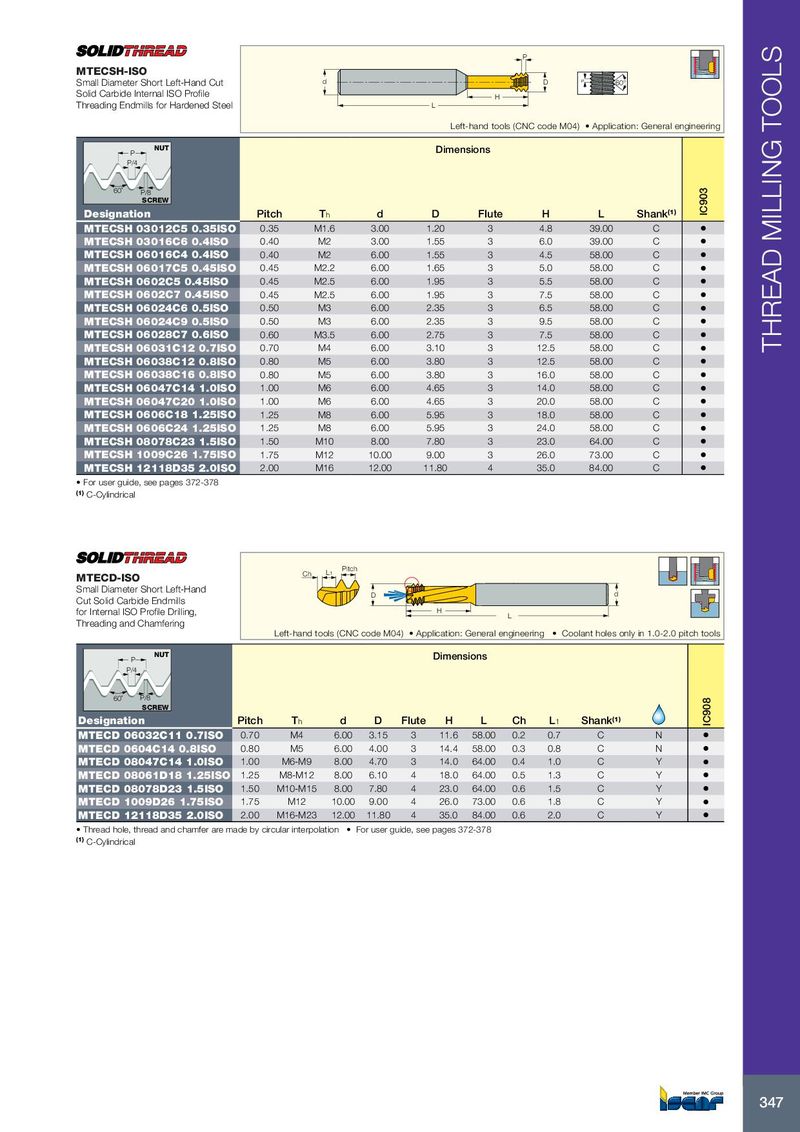

Каталог Iscar вращающийся инструмент 2017 - страница 351

P MTECSH-ISO Small Diameter Short Left-Hand Cut d D P 60° Solid Carbide Internal ISO Profile H Threading Endmills for Hardened Steel L Left-hand tools (CNC code M04) • Application: General engineering NUT P Dimensions P/4 60˚ P/8 SCREW Designation Pitch T h d D Flute H L Shank (1) IC903 MTECSH 03012C5 0.35ISO 0.35 M1.6 3.00 1.20 3 4.8 39.00 C • MTECSH 03016C6 0.4ISO 0.40 M2 3.00 1.55 3 6.0 39.00 C • MTECSH 06016C4 0.4ISO 0.40 M2 6.00 1.55 3 4.5 58.00 C • MTECSH 06017C5 0.45ISO 0.45 M2.2 6.00 1.65 3 5.0 58.00 C • MTECSH 0602C5 0.45ISO 0.45 M2.5 6.00 1.95 3 5.5 58.00 C • MTECSH 0602C7 0.45ISO 0.45 M2.5 6.00 1.95 3 7.5 58.00 C • MTECSH 06024C6 0.5ISO 0.50 M3 6.00 2.35 3 6.5 58.00 C • MTECSH 06024C9 0.5ISO 0.50 M3 6.00 2.35 3 9.5 58.00 C • MTECSH 06028C7 0.6ISO 0.60 M3.5 6.00 2.75 3 7.5 58.00 C • MTECSH 06031C12 0.7ISO 0.70 M4 6.00 3.10 3 12.5 58.00 C • THREAD MILLING TOOLS MTECSH 06038C12 0.8ISO 0.80 M5 6.00 3.80 3 12.5 58.00 C • MTECSH 06038C16 0.8ISO 0.80 M5 6.00 3.80 3 16.0 58.00 C • MTECSH 06047C14 1.0ISO 1.00 M6 6.00 4.65 3 14.0 58.00 C • MTECSH 06047C20 1.0ISO 1.00 M6 6.00 4.65 3 20.0 58.00 C • MTECSH 0606C18 1.25ISO 1.25 M8 6.00 5.95 3 18.0 58.00 C • MTECSH 0606C24 1.25ISO 1.25 M8 6.00 5.95 3 24.0 58.00 C • MTECSH 08078C23 1.5ISO 1.50 M10 8.00 7.80 3 23.0 64.00 C • MTECSH 1009C26 1.75ISO 1.75 M12 10.00 9.00 3 26.0 73.00 C • MTECSH 12118D35 2.0ISO 2.00 M16 12.00 11.80 4 35.0 84.00 C • • For user guide, see pages 372-378 (1) C-Cylindrical Pitch Ch L1 MTECD-ISO Small Diameter Short Left-Hand D d Cut Solid Carbide Endmills for Internal ISO Profile Drilling, H L Threading and Chamfering Left-hand tools (CNC code M04) • Application: General engineering • Coolant holes only in 1.0-2.0 pitch tools NUT P Dimensions P/4 60˚ P/8 SCREW Designation Pitch T h d D Flute H L Ch L 1 Shank (1) IC908 MTECD 06032C11 0.7ISO 0.70 M4 6.00 3.15 3 11.6 58.00 0.2 0.7 C N • MTECD 0604C14 0.8ISO 0.80 M5 6.00 4.00 3 14.4 58.00 0.3 0.8 C N • MTECD 08047C14 1.0ISO 1.00 M6-M9 8.00 4.70 3 14.0 64.00 0.4 1.0 C Y • MTECD 08061D18 1.25ISO 1.25 M8-M12 8.00 6.10 4 18.0 64.00 0.5 1.3 C Y • MTECD 08078D23 1.5ISO 1.50 M10-M15 8.00 7.80 4 23.0 64.00 0.6 1.5 C Y • MTECD 1009D26 1.75ISO 1.75 M12 10.00 9.00 4 26.0 73.00 0.6 1.8 C Y • MTECD 12118D35 2.0ISO 2.00 M16-M23 12.00 11.80 4 35.0 84.00 0.6 2.0 C Y • • Thread hole, thread and chamfer are made by circular interpolation • For user guide, see pages 372-378 (1) C-Cylindrical 347
