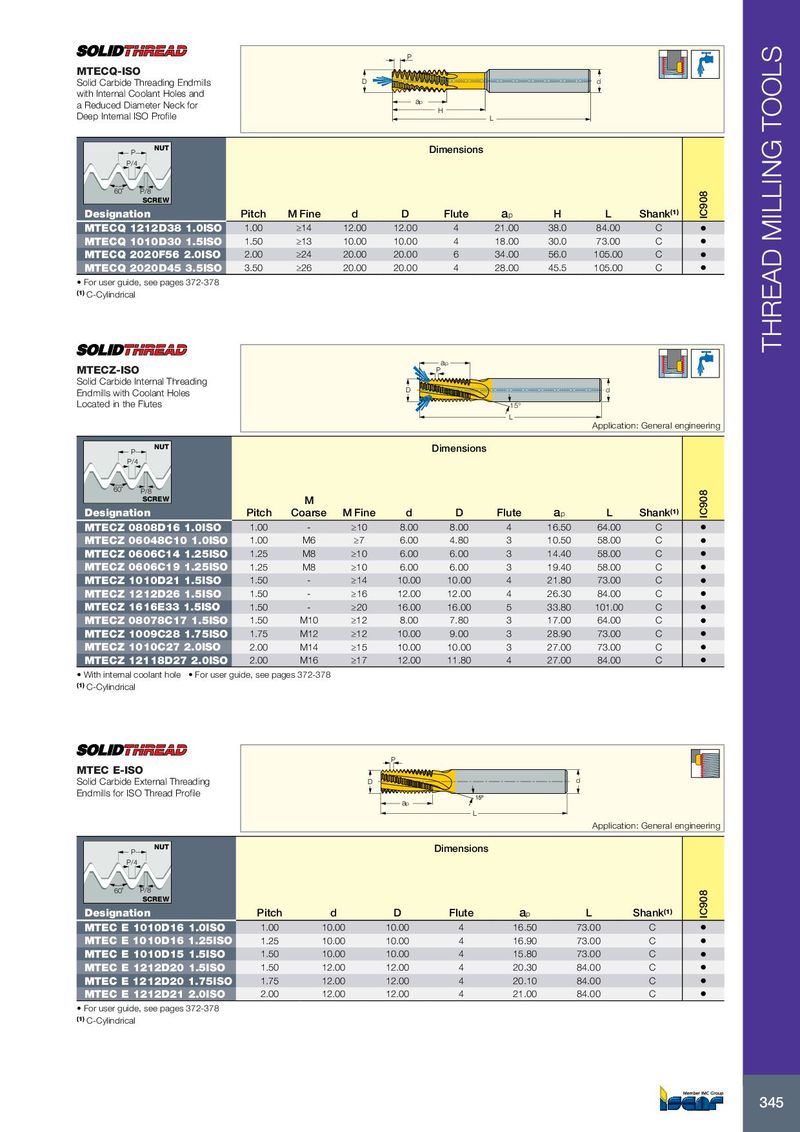

Каталог Iscar вращающийся инструмент 2017 - страница 349

P MTECQ-ISO Solid Carbide Threading Endmills D d with Internal Coolant Holes and ap a Reduced Diameter Neck for H Deep Internal ISO Profile L NUT P Dimensions P/4 60˚ P/8 SCREW Designation Pitch M Fine d D Flute a p H L Shank (1) IC908 MTECQ 1212D38 1.0ISO 1.00 ≥14 12.00 12.00 4 21.00 38.0 84.00 C • MTECQ 1010D30 1.5ISO 1.50 ≥13 10.00 10.00 4 18.00 30.0 73.00 C • MTECQ 2020F56 2.0ISO 2.00 ≥24 20.00 20.00 6 34.00 56.0 105.00 C • MTECQ 2020D45 3.5ISO 3.50 ≥26 20.00 20.00 4 28.00 45.5 105.00 C • • For user guide, see pages 372-378 (1) C-Cylindrical THREAD MILLING TOOLS ap MTECZ-ISO P Solid Carbide Internal Threading Endmills with Coolant Holes D d Located in the Flutes 15° L Application: General engineering NUT P Dimensions P/4 60˚ P/8 SCREW M Designation Pitch Coarse M Fine d D Flute a p L Shank (1) IC908 MTECZ 0808D16 1.0ISO 1.00 - ≥10 8.00 8.00 4 16.50 64.00 C • MTECZ 06048C10 1.0ISO 1.00 M6 ≥7 6.00 4.80 3 10.50 58.00 C • MTECZ 0606C14 1.25ISO 1.25 M8 ≥10 6.00 6.00 3 14.40 58.00 C • MTECZ 0606C19 1.25ISO 1.25 M8 ≥10 6.00 6.00 3 19.40 58.00 C • MTECZ 1010D21 1.5ISO 1.50 - ≥14 10.00 10.00 4 21.80 73.00 C • MTECZ 1212D26 1.5ISO 1.50 - ≥16 12.00 12.00 4 26.30 84.00 C • MTECZ 1616E33 1.5ISO 1.50 - ≥20 16.00 16.00 5 33.80 101.00 C • MTECZ 08078C17 1.5ISO 1.50 M10 ≥12 8.00 7.80 3 17.00 64.00 C • MTECZ 1009C28 1.75ISO 1.75 M12 ≥12 10.00 9.00 3 28.90 73.00 C • MTECZ 1010C27 2.0ISO 2.00 M14 ≥15 10.00 10.00 3 27.00 73.00 C • MTECZ 12118D27 2.0ISO 2.00 M16 ≥17 12.00 11.80 4 27.00 84.00 C • • With internal coolant hole • For user guide, see pages 372-378 (1) C-Cylindrical P MTEC E-ISO Solid Carbide External Threading D d Endmills for ISO Thread Profile ap L Application: General engineering NUT P Dimensions P/4 60˚ P/8 SCREW Designation Pitch d D Flute a p L Shank (1) IC908 MTEC E 1010D16 1.0ISO 1.00 10.00 10.00 4 16.50 73.00 C • MTEC E 1010D16 1.25ISO 1.25 10.00 10.00 4 16.90 73.00 C • MTEC E 1010D15 1.5ISO 1.50 10.00 10.00 4 15.80 73.00 C • MTEC E 1212D20 1.5ISO 1.50 12.00 12.00 4 20.30 84.00 C • MTEC E 1212D20 1.75ISO 1.75 12.00 12.00 4 20.10 84.00 C • MTEC E 1212D21 2.0ISO 2.00 12.00 12.00 4 21.00 84.00 C • • For user guide, see pages 372-378 (1) C-Cylindrical 345
