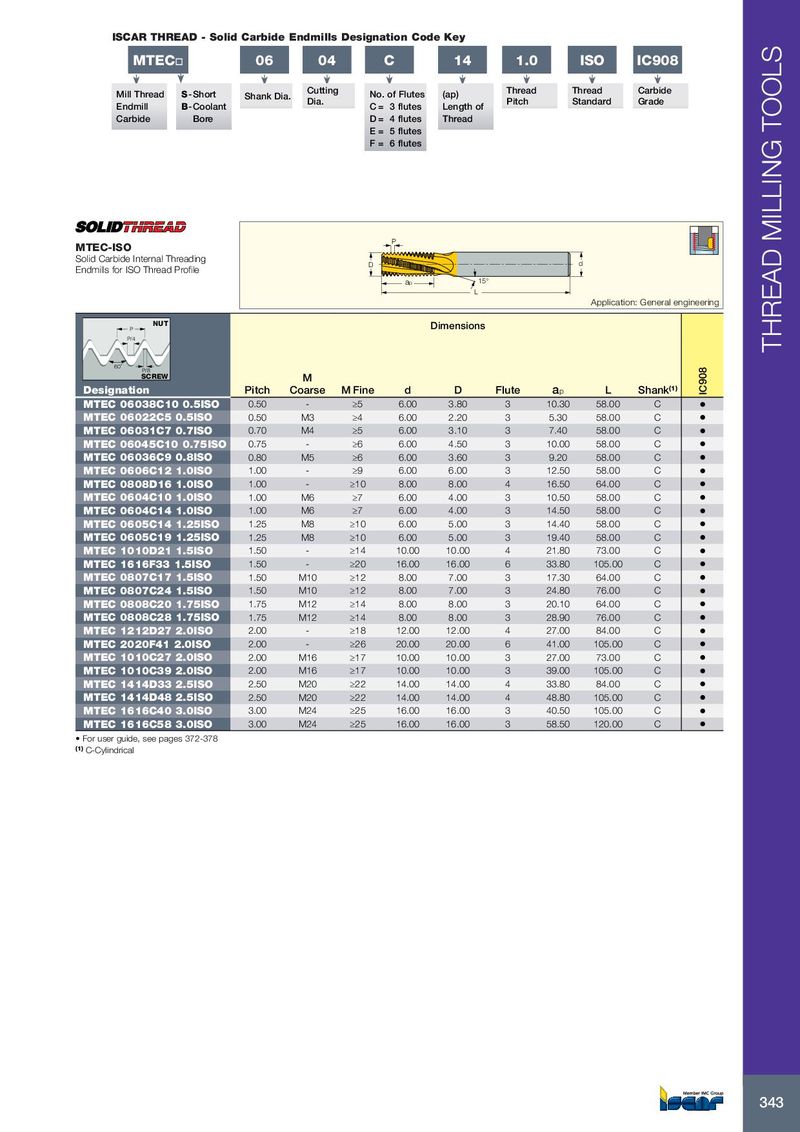

ISCAR THREAD - Solid Carbide Endmills Designation Code Key MTEC o 06 04 C 14 1.0 ISO IC908 Mill Thread S - Short Cutting Thread Thread Carbide Shank Dia. No. of Flutes (ap) Dia. Pitch Standard Grade Endmill B - Coolant C = 3 flutes Length of Carbide Bore D = 4 flutes Thread E = 5 flutes F = 6 flutes P MTEC-ISO Solid Carbide Internal Threading D d Endmills for ISO Thread Profile ap 15° L Application: General engineering NUT P Dimensions P/4 THREAD MILLING TOOLS 60˚ P/8 SCREW M Designation Pitch Coarse M Fine d D Flute a p L Shank (1) IC908 MTEC 06038C10 0.5ISO 0.50 - ≥5 6.00 3.80 3 10.30 58.00 C • MTEC 06022C5 0.5ISO 0.50 M3 ≥4 6.00 2.20 3 5.30 58.00 C • MTEC 06031C7 0.7ISO 0.70 M4 ≥5 6.00 3.10 3 7.40 58.00 C • MTEC 06045C10 0.75ISO 0.75 - ≥6 6.00 4.50 3 10.00 58.00 C • MTEC 06036C9 0.8ISO 0.80 M5 ≥6 6.00 3.60 3 9.20 58.00 C • MTEC 0606C12 1.0ISO 1.00 - ≥9 6.00 6.00 3 12.50 58.00 C • MTEC 0808D16 1.0ISO 1.00 - ≥10 8.00 8.00 4 16.50 64.00 C • MTEC 0604C10 1.0ISO 1.00 M6 ≥7 6.00 4.00 3 10.50 58.00 C • MTEC 0604C14 1.0ISO 1.00 M6 ≥7 6.00 4.00 3 14.50 58.00 C • MTEC 0605C14 1.25ISO 1.25 M8 ≥10 6.00 5.00 3 14.40 58.00 C • MTEC 0605C19 1.25ISO 1.25 M8 ≥10 6.00 5.00 3 19.40 58.00 C • MTEC 1010D21 1.5ISO 1.50 - ≥14 10.00 10.00 4 21.80 73.00 C • MTEC 1616F33 1.5ISO 1.50 - ≥20 16.00 16.00 6 33.80 105.00 C • MTEC 0807C17 1.5ISO 1.50 M10 ≥12 8.00 7.00 3 17.30 64.00 C • MTEC 0807C24 1.5ISO 1.50 M10 ≥12 8.00 7.00 3 24.80 76.00 C • MTEC 0808C20 1.75ISO 1.75 M12 ≥14 8.00 8.00 3 20.10 64.00 C • MTEC 0808C28 1.75ISO 1.75 M12 ≥14 8.00 8.00 3 28.90 76.00 C • MTEC 1212D27 2.0ISO 2.00 - ≥18 12.00 12.00 4 27.00 84.00 C • MTEC 2020F41 2.0ISO 2.00 - ≥26 20.00 20.00 6 41.00 105.00 C • MTEC 1010C27 2.0ISO 2.00 M16 ≥17 10.00 10.00 3 27.00 73.00 C • MTEC 1010C39 2.0ISO 2.00 M16 ≥17 10.00 10.00 3 39.00 105.00 C • MTEC 1414D33 2.5ISO 2.50 M20 ≥22 14.00 14.00 4 33.80 84.00 C • MTEC 1414D48 2.5ISO 2.50 M20 ≥22 14.00 14.00 4 48.80 105.00 C • MTEC 1616C40 3.0ISO 3.00 M24 ≥25 16.00 16.00 3 40.50 105.00 C • MTEC 1616C58 3.0ISO 3.00 M24 ≥25 16.00 16.00 3 58.50 120.00 C • • For user guide, see pages 372-378 (1) C-Cylindrical 343
