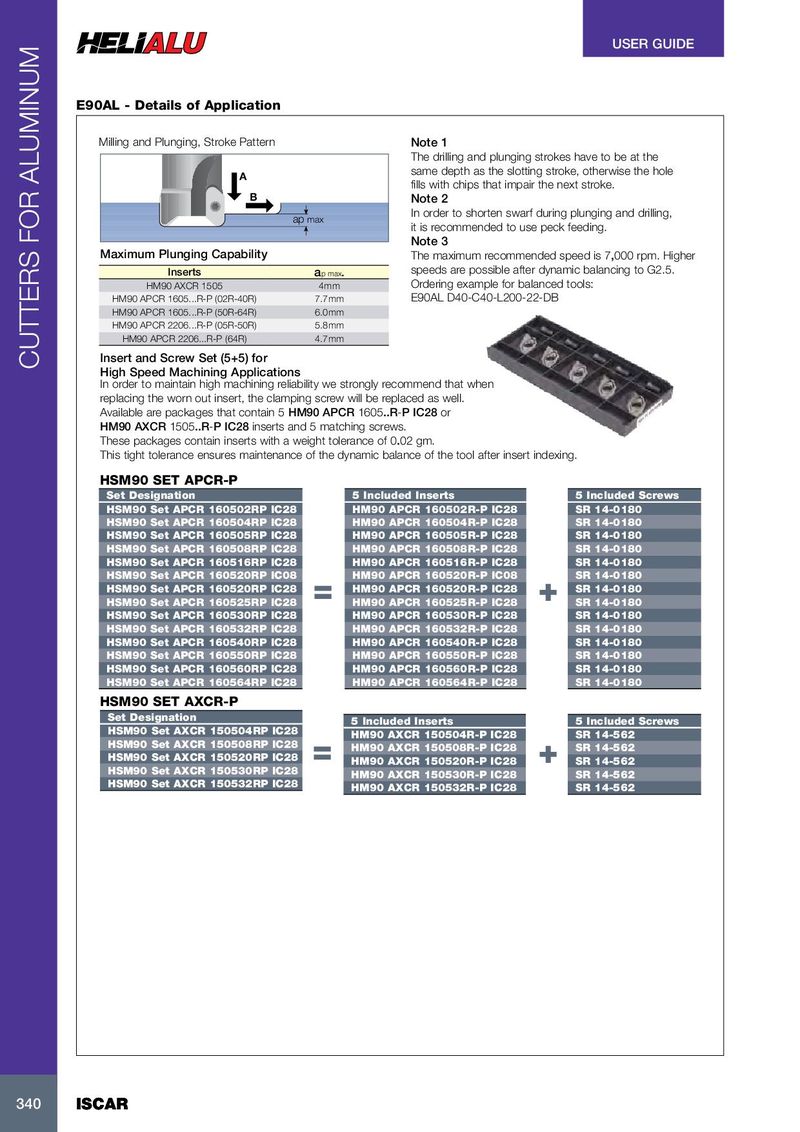

USER GUIDE E90AL - Details of Application Milling and Plunging, Stroke Pattern Note 1 The drilling and plunging strokes have to be at the same depth as the slotting stroke, otherwise the hole A fills with chips that impair the next stroke. B Note 2 In order to shorten swarf during plunging and drilling, ap max it is recommended to use peck feeding. Note 3 Maximum Plunging Capability The maximum recommended speed is 7,000 rpm. Higher Inserts a p max . speeds are possible after dynamic balancing to G2.5. HM90 AXCR 1505 4mm Ordering example for balanced tools: HM90 APCR 1605...R-P (02R-40R) 7.7mm E90AL D40-C40-L200-22-DB HM90 APCR 1605...R-P (50R-64R) 6.0mm HM90 APCR 2206...R-P (05R-50R) 5.8mm HM90 APCR 2206...R-P (64R) 4.7mm Insert and Screw Set (5+5) for CUTTERS FOR ALUMINUM High Speed Machining Applications In order to maintain high machining reliability we strongly recommend that when replacing the worn out insert, the clamping screw will be replaced as well. Available are packages that contain 5 HM90 APCR 1605..R-P IC28 or HM90 AXCR 1505..R-P IC28 inserts and 5 matching screws. These packages contain inserts with a weight tolerance of 0.02 gm. This tight tolerance ensures maintenance of the dynamic balance of the tool after insert indexing. HSM90 SET APCR-P Set Designation 5 Included Inserts 5 Included Screws HSM90 Set APCR 160502RP IC28 HM90 APCR 160502R-P IC28 SR 14-0180 HSM90 Set APCR 160504RP IC28 HM90 APCR 160504R-P IC28 SR 14-0180 HSM90 Set APCR 160505RP IC28 HM90 APCR 160505R-P IC28 SR 14-0180 HSM90 Set APCR 160508RP IC28 HM90 APCR 160508R-P IC28 SR 14-0180 HSM90 Set APCR 160516RP IC28 HM90 APCR 160516R-P IC28 SR 14-0180 HSM90 Set APCR 160520RP IC08 HM90 APCR 160520R-P IC08 SR 14-0180 HSM90 Set APCR 160520RP IC28 HM90 APCR 160520R-P IC28 SR 14-0180 = + HSM90 Set APCR 160525RP IC28 HM90 APCR 160525R-P IC28 SR 14-0180 HSM90 Set APCR 160530RP IC28 HM90 APCR 160530R-P IC28 SR 14-0180 HSM90 Set APCR 160532RP IC28 HM90 APCR 160532R-P IC28 SR 14-0180 HSM90 Set APCR 160540RP IC28 HM90 APCR 160540R-P IC28 SR 14-0180 HSM90 Set APCR 160550RP IC28 HM90 APCR 160550R-P IC28 SR 14-0180 HSM90 Set APCR 160560RP IC28 HM90 APCR 160560R-P IC28 SR 14-0180 HSM90 Set APCR 160564RP IC28 HM90 APCR 160564R-P IC28 SR 14-0180 HSM90 SET AXCR-P Set Designation 5 Included Inserts 5 Included Screws HSM90 Set AXCR 150504RP IC28 HM90 AXCR 150504R-P IC28 SR 14-562 HSM90 Set AXCR 150508RP IC28 HM90 AXCR 150508R-P IC28 SR 14-562 HSM90 Set AXCR 150520RP IC28 = HM90 AXCR 150520R-P IC28 + SR 14-562 HSM90 Set AXCR 150530RP IC28 HM90 AXCR 150530R-P IC28 SR 14-562 HSM90 Set AXCR 150532RP IC28 HM90 AXCR 150532R-P IC28 SR 14-562 340 340 ISCAR ISCAR
