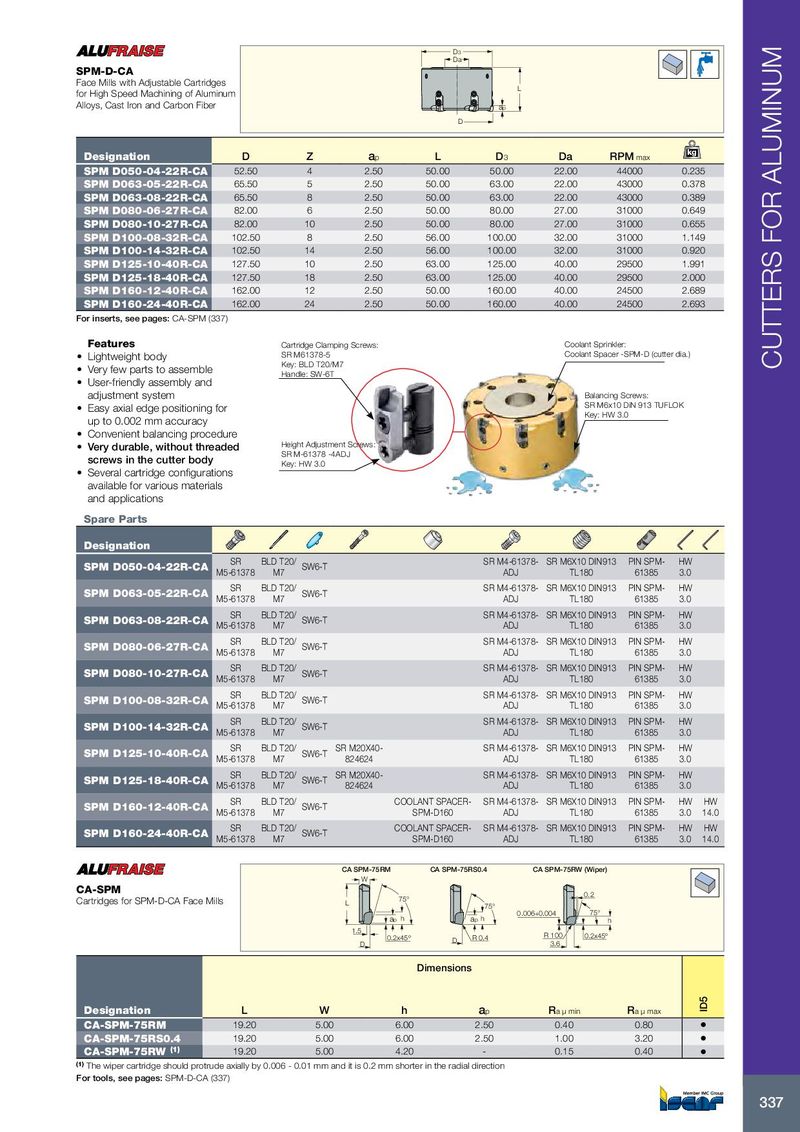

Каталог Iscar вращающийся инструмент 2017 - страница 341

D3 Da SPM-D-CA Face Mills with Adjustable Cartridges L for High Speed Machining of Aluminum Alloys, Cast Iron and Carbon Fiber ap D kg Designation D Z a p L D 3 Da RPM max SPM D050-04-22R-CA 52.50 4 2.50 50.00 50.00 22.00 44000 0.235 SPM D063-05-22R-CA 65.50 5 2.50 50.00 63.00 22.00 43000 0.378 SPM D063-08-22R-CA 65.50 8 2.50 50.00 63.00 22.00 43000 0.389 SPM D080-06-27R-CA 82.00 6 2.50 50.00 80.00 27.00 31000 0.649 SPM D080-10-27R-CA 82.00 10 2.50 50.00 80.00 27.00 31000 0.655 SPM D100-08-32R-CA 102.50 8 2.50 56.00 100.00 32.00 31000 1.149 SPM D100-14-32R-CA 102.50 14 2.50 56.00 100.00 32.00 31000 0.920 SPM D125-10-40R-CA 127.50 10 2.50 63.00 125.00 40.00 29500 1.991 SPM D125-18-40R-CA 127.50 18 2.50 63.00 125.00 40.00 29500 2.000 SPM D160-12-40R-CA 162.00 12 2.50 50.00 160.00 40.00 24500 2.689 SPM D160-24-40R-CA 162.00 24 2.50 50.00 160.00 40.00 24500 2.693 For inserts, see pages: CA-SPM (337) Features Cartridge Clamping Screws: Coolant Sprinkler: • Lightweight body SR M61378-5 Coolant Spacer -SPM-D (cutter dia.) Key: BLD T20/M7 • Very few parts to assemble CUTTERS FOR ALUMINUM Handle: SW-6T • User-friendly assembly and adjustment system Balancing Screws: • Easy axial edge positioning for SR M6x10 DiN 913 TUFLOK Key: HW 3.0 up to 0.002 mm accuracy • Convenient balancing procedure • Very durable, without threaded Height Adjustment Screws: SR M-61378 -4ADJ screws in the cutter body Key: HW 3.0 • Several cartridge configurations available for various materials and applications Spare Parts Designation SR BLD T20/ SR M4-61378- SR M6X10 DIN913 PIN SPM- HW SPM D050-04-22R-CA SW6-T M5-61378 M7 ADJ TL180 61385 3.0 SR BLD T20/ SR M4-61378- SR M6X10 DIN913 PIN SPM- HW SPM D063-05-22R-CA SW6-T M5-61378 M7 ADJ TL180 61385 3.0 SR BLD T20/ SR M4-61378- SR M6X10 DIN913 PIN SPM- HW SPM D063-08-22R-CA SW6-T M5-61378 M7 ADJ TL180 61385 3.0 SR BLD T20/ SR M4-61378- SR M6X10 DIN913 PIN SPM- HW SPM D080-06-27R-CA SW6-T M5-61378 M7 ADJ TL180 61385 3.0 SR BLD T20/ SR M4-61378- SR M6X10 DIN913 PIN SPM- HW SPM D080-10-27R-CA SW6-T M5-61378 M7 ADJ TL180 61385 3.0 SR BLD T20/ SR M4-61378- SR M6X10 DIN913 PIN SPM- HW SPM D100-08-32R-CA SW6-T M5-61378 M7 ADJ TL180 61385 3.0 SR BLD T20/ SR M4-61378- SR M6X10 DIN913 PIN SPM- HW SPM D100-14-32R-CA SW6-T M5-61378 M7 ADJ TL180 61385 3.0 SR BLD T20/ SR M20X40- SR M4-61378- SR M6X10 DIN913 PIN SPM- HW SPM D125-10-40R-CA SW6-T M5-61378 M7 824624 ADJ TL180 61385 3.0 SR BLD T20/ SR M20X40- SR M4-61378- SR M6X10 DIN913 PIN SPM- HW SPM D125-18-40R-CA SW6-T M5-61378 M7 824624 ADJ TL180 61385 3.0 SR BLD T20/ COOLANT SPACER- SR M4-61378- SR M6X10 DIN913 PIN SPM- HW HW SPM D160-12-40R-CA SW6-T M5-61378 M7 SPM-D160 ADJ TL180 61385 3.0 14.0 SR BLD T20/ COOLANT SPACER- SR M4-61378- SR M6X10 DIN913 PIN SPM- HW HW SPM D160-24-40R-CA SW6-T M5-61378 M7 SPM-D160 ADJ TL180 61385 3.0 14.0 CA SPM-75RM CA SPM-75RS0.4 CA SPM-75RW (Wiper) W CA-SPM 0.2 Cartridges for SPM-D-CA Face Mills L 75° 75° 0.006+0.004 75° ap h ap h h 1.5 0.2x45º D R 0.4 R 100 0.2x45º D 3.6 Dimensions Designation L W h a p R a µ min R a µ max ID5 CA-SPM-75RM 19.20 5.00 6.00 2.50 0.40 0.80 • CA-SPM-75RS0.4 19.20 5.00 6.00 2.50 1.00 3.20 • CA-SPM-75RW (1) 19.20 5.00 4.20 - 0.15 0.40 • (1) The wiper cartridge should protrude axially by 0.006 - 0.01 mm and it is 0.2 mm shorter in the radial direction For tools, see pages: SPM-D-CA (337) 337
