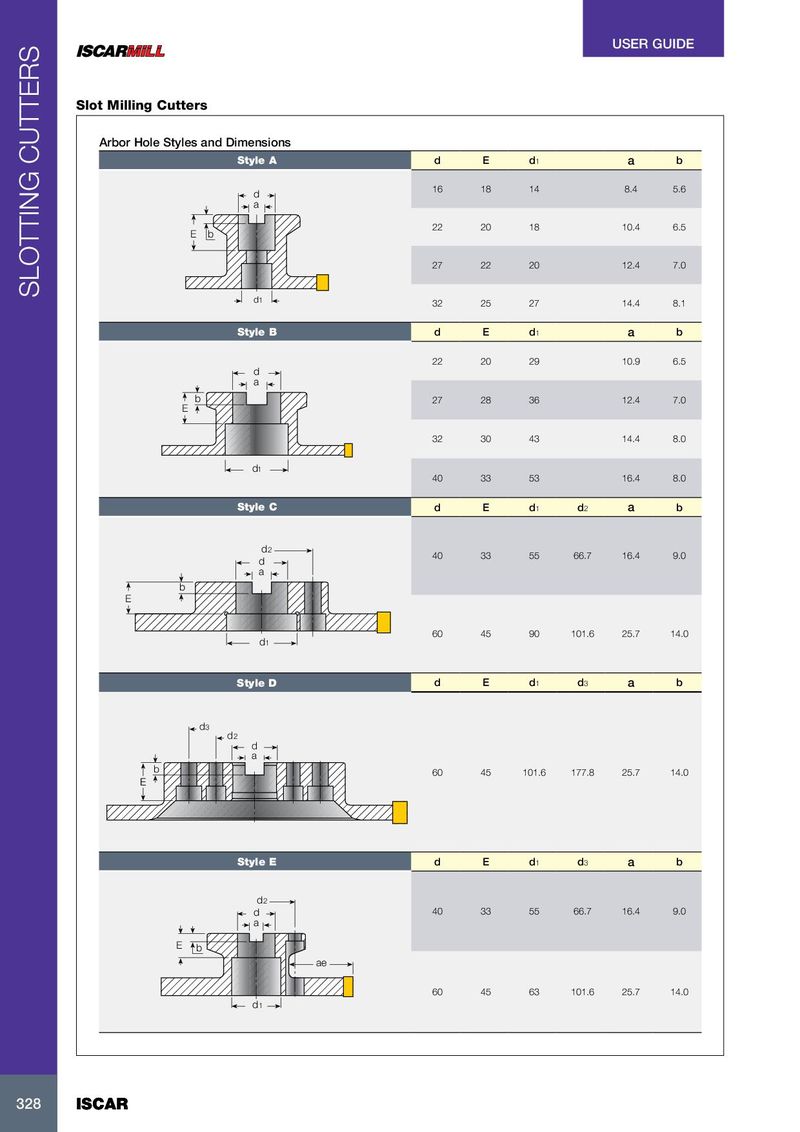

USER GUIDE Slot Milling Cutters Arbor Hole Styles and Dimensions Style A d E d 1 a b 16 18 14 8.4 5.6 d a 22 20 18 10.4 6.5 E b 27 22 20 12.4 7.0 SLOTTING CUTTERS d 1 32 25 27 14.4 8.1 Style B d E d 1 a b 22 20 29 10.9 6.5 d a b 27 28 36 12.4 7.0 E 32 30 43 14.4 8.0 d1 40 33 53 16.4 8.0 Style C d E d 1 d 2 a b d2 40 33 55 66.7 16.4 9.0 d a b E 60 45 90 101.6 25.7 14.0 d1 Style D d E d 1 d 3 a b d3 d 2 d a b 60 45 101.6 177.8 25.7 14.0 E Style E d E d 1 d 3 a b d2 d 40 33 55 66.7 16.4 9.0 a E b ae 60 45 63 101.6 25.7 14.0 d1 328 328 ISCAR ISCAR
