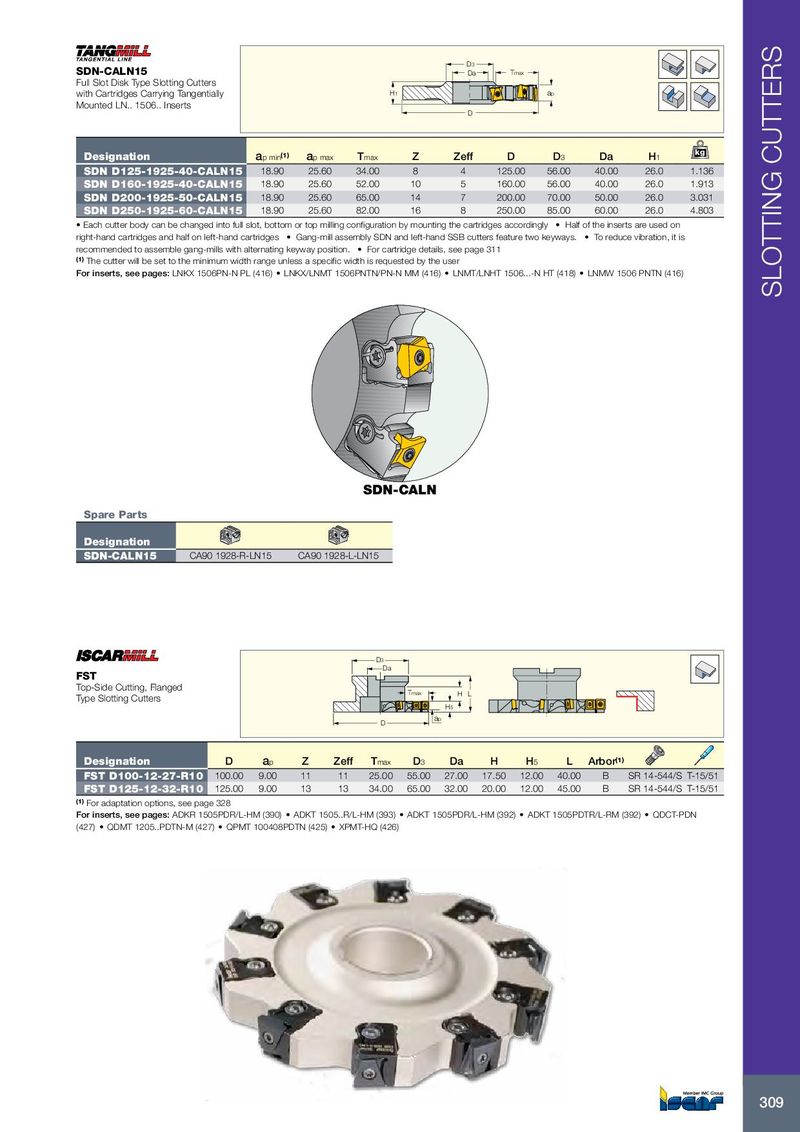

D 3 SDN-CALN15 Da Tmax Full Slot Disk Type Slotting Cutters with Cartridges Carrying Tangentially H1 ap Mounted LN.. 1506.. Inserts D kg Designation a p min (1) a p max T max Z Zeff D D 3 Da H 1 SDN D125-1925-40-CALN15 18.90 25.60 34.00 8 4 125.00 56.00 40.00 26.0 1.136 SDN D160-1925-40-CALN15 18.90 25.60 52.00 10 5 160.00 56.00 40.00 26.0 1.913 SDN D200-1925-50-CALN15 18.90 25.60 65.00 14 7 200.00 70.00 50.00 26.0 3.031 SDN D250-1925-60-CALN15 18.90 25.60 82.00 16 8 250.00 85.00 60.00 26.0 4.803 • Each cutter body can be changed into full slot, bottom or top milling configuration by mounting the cartridges accordingly • Half of the inserts are used on right-hand cartridges and half on left-hand cartridges • Gang-mill assembly SDN and left-hand SSB cutters feature two keyways. • To reduce vibration, it is recommended to assemble gang-mills with alternating keyway position. • For cartridge details, see page 311 (1) The cutter will be set to the minimum width range unless a specific width is requested by the user For inserts, see pages: LNKX 1506PN-N PL (416) • LNKX/LNMT 1506PNTN/PN-N MM (416) • LNMT/LNHT 1506...-N HT (418) • LNMW 1506 PNTN (416) SLOTTING CUTTERS SDN-CALN Spare Parts Designation SDN-CALN15 CA90 1928-R-LN15 CA90 1928-L-LN15 D3 Da FST Top-Side Cutting, Flanged Tmax H L Type Slotting Cutters H5 ap D Designation D a p Z Zeff T max D 3 Da H H 5 L Arbor (1) FST D100-12-27-R10 100.00 9.00 11 11 25.00 55.00 27.00 17.50 12.00 40.00 B SR 14-544/S T-15/51 FST D125-12-32-R10 125.00 9.00 13 13 34.00 65.00 32.00 20.00 12.00 45.00 B SR 14-544/S T-15/51 (1) For adaptation options, see page 328 For inserts, see pages: ADKR 1505PDR/L-HM (390) • ADKT 1505..R/L-HM (393) • ADKT 1505PDR/L-HM (392) • ADKT 1505PDTR/L-RM (392) • QDCT-PDN (427) • QDMT 1205..PDTN-M (427) • QPMT 100408PDTN (425) • XPMT-HQ (426) 309
