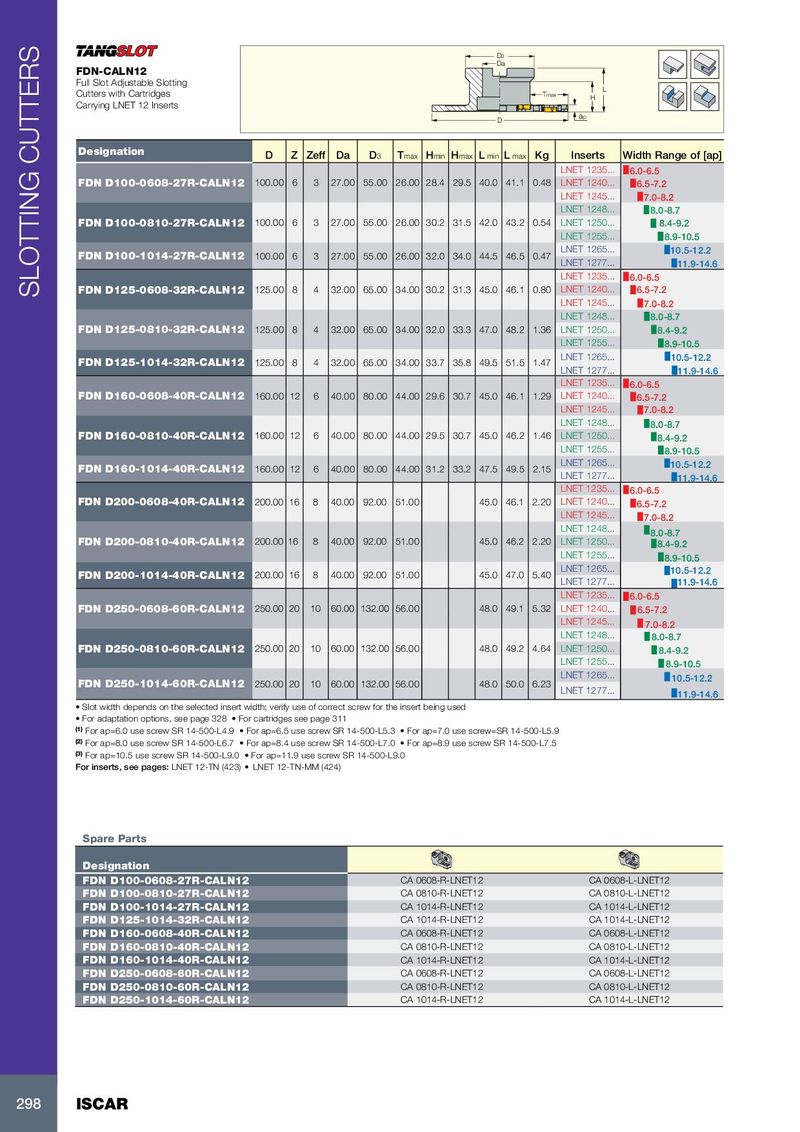

D3 Da FDN-CALN12 Full Slot Adjustable Slotting L Cutters with Cartridges Tmax H Carrying LNET 12 Inserts D ap Designation D Z Zeff Da D 3 T max H min H max L min L max Kg Inserts Width Range of [ap] H LNET 1235... 6.0-6.5 FDN D100-0608-27R-CALN12 100.00 6 3 27.00 55.00 26.00 28.4 29.5 40.0 41.1 0.48 LNET 1240... 6.5-7.2 LNET 1245... 7.0-8.2 LNET 1248... 8.0-8.7 FDN D100-0810-27R-CALN12 100.00 6 3 27.00 55.00 26.00 30.2 31.5 42.0 43.2 0.54 LNET 1250... 8.4-9.2 LNET 1255... 8.9-10.5 LNET 1265... 10.5-12.2 FDN D100-1014-27R-CALN12 100.00 6 3 27.00 55.00 26.00 32.0 34.0 44.5 46.5 0.47 LNET 1277... 11.9-14.6 LNET 1235... 6.0-6.5 FDN D125-0608-32R-CALN12 125.00 8 4 32.00 65.00 34.00 30.2 31.3 45.0 46.1 0.80 LNET 1240... 6.5-7.2 SLOTTING CUTTERS LNET 1245... 7.0-8.2 LNET 1248... 8.0-8.7 FDN D125-0810-32R-CALN12 125.00 8 4 32.00 65.00 34.00 32.0 33.3 47.0 48.2 1.36 LNET 1250... 8.4-9.2 LNET 1255... 8.9-10.5 LNET 1265... 10.5-12.2 FDN D125-1014-32R-CALN12 125.00 8 4 32.00 65.00 34.00 33.7 35.8 49.5 51.5 1.47 LNET 1277... 11.9-14.6 LNET 1235... 6.0-6.5 FDN D160-0608-40R-CALN12 160.00 12 6 40.00 80.00 44.00 29.6 30.7 45.0 46.1 1.29 LNET 1240... 6.5-7.2 LNET 1245... 7.0-8.2 LNET 1248... 8.0-8.7 FDN D160-0810-40R-CALN12 160.00 12 6 40.00 80.00 44.00 29.5 30.7 45.0 46.2 1.46 LNET 1250... 8.4-9.2 LNET 1255... 8.9-10.5 LNET 1265... 10.5-12.2 FDN D160-1014-40R-CALN12 160.00 12 6 40.00 80.00 44.00 31.2 33.2 47.5 49.5 2.15 LNET 1277... 11.9-14.6 LNET 1235... 6.0-6.5 FDN D200-0608-40R-CALN12 200.00 16 8 40.00 92.00 51.00 45.0 46.1 2.20 LNET 1240... 6.5-7.2 LNET 1245... 7.0-8.2 LNET 1248... 8.0-8.7 FDN D200-0810-40R-CALN12 200.00 16 8 40.00 92.00 51.00 45.0 46.2 2.20 LNET 1250... 8.4-9.2 LNET 1255... 8.9-10.5 LNET 1265... 10.5-12.2 FDN D200-1014-40R-CALN12 200.00 16 8 40.00 92.00 51.00 45.0 47.0 5.40 LNET 1277... 11.9-14.6 LNET 1235... 6.0-6.5 FDN D250-0608-60R-CALN12 250.00 20 10 60.00 132.00 56.00 48.0 49.1 5.32 LNET 1240... 6.5-7.2 LNET 1245... 7.0-8.2 LNET 1248... 8.0-8.7 FDN D250-0810-60R-CALN12 250.00 20 10 60.00 132.00 56.00 48.0 49.2 4.64 LNET 1250... 8.4-9.2 LNET 1255... 8.9-10.5 LNET 1265... 10.5-12.2 FDN D250-1014-60R-CALN12 250.00 20 10 60.00 132.00 56.00 48.0 50.0 6.23 LNET 1277... 11.9-14.6 • Slot width depends on the selected insert width; verify use of correct screw for the insert being used • For adaptation options, see page 328 • For cartridges see page 311 (1) For ap=6.0 use screw SR 14-500-L4.9 • For ap=6.5 use screw SR 14-500-L5.3 • For ap=7.0 use screw=SR 14-500-L5.9 (2) For ap=8.0 use screw SR 14-500-L6.7 • For ap=8.4 use screw SR 14-500-L7.0 • For ap=8.9 use screw SR 14-500-L7.5 (3) For ap=10.5 use screw SR 14-500-L9.0 • For ap=11.9 use screw SR 14-500-L9.0 For inserts, see pages: LNET 12-TN (423) • LNET 12-TN-MM (424) Spare Parts Designation FDN D100-0608-27R-CALN12 CA 0608-R-LNET12 CA 0608-L-LNET12 FDN D100-0810-27R-CALN12 CA 0810-R-LNET12 CA 0810-L-LNET12 FDN D100-1014-27R-CALN12 CA 1014-R-LNET12 CA 1014-L-LNET12 FDN D125-1014-32R-CALN12 CA 1014-R-LNET12 CA 1014-L-LNET12 FDN D160-0608-40R-CALN12 CA 0608-R-LNET12 CA 0608-L-LNET12 FDN D160-0810-40R-CALN12 CA 0810-R-LNET12 CA 0810-L-LNET12 FDN D160-1014-40R-CALN12 CA 1014-R-LNET12 CA 1014-L-LNET12 FDN D250-0608-60R-CALN12 CA 0608-R-LNET12 CA 0608-L-LNET12 FDN D250-0810-60R-CALN12 CA 0810-R-LNET12 CA 0810-L-LNET12 FDN D250-1014-60R-CALN12 CA 1014-R-LNET12 CA 1014-L-LNET12 298 ISCAR
