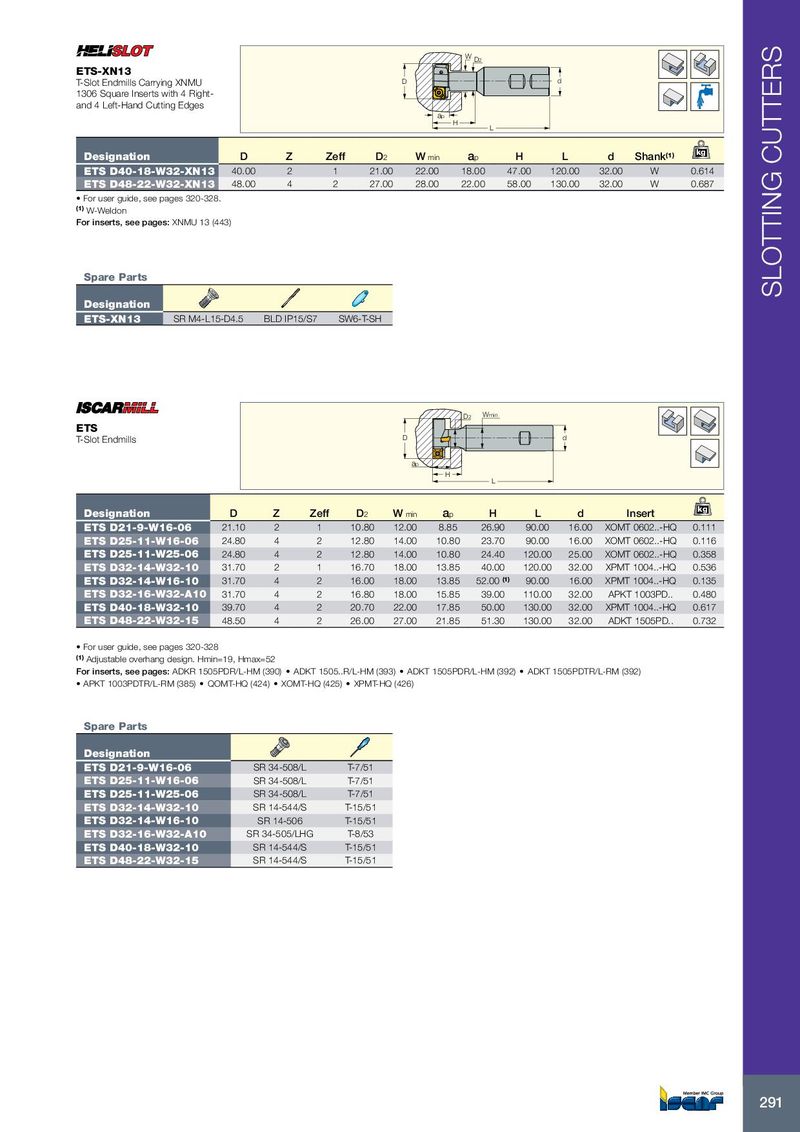

W D2 ETS-XN13 T-Slot Endmills Carrying XNMU D d 1306 Square Inserts with 4 Right- and 4 Left-Hand Cutting Edges ap H L kg Designation D Z Zeff D 2 W min a p H L d Shank (1) ETS D40-18-W32-XN13 40.00 2 1 21.00 22.00 18.00 47.00 120.00 32.00 W 0.614 ETS D48-22-W32-XN13 48.00 4 2 27.00 28.00 22.00 58.00 130.00 32.00 W 0.687 • For user guide, see pages 320-328. (1) W-Weldon For inserts, see pages: XNMU 13 (443) Spare Parts SLOTTING CUTTERS Designation ETS-XN13 SR M4-L15-D4.5 BLD IP15/S7 SW6-T-SH D2 Wmin ETS T-Slot Endmills D d ap H L kg Designation D Z Zeff D 2 W min a p H L d Insert ETS D21-9-W16-06 21.10 2 1 10.80 12.00 8.85 26.90 90.00 16.00 XOMT 0602..-HQ 0.111 ETS D25-11-W16-06 24.80 4 2 12.80 14.00 10.80 23.70 90.00 16.00 XOMT 0602..-HQ 0.116 ETS D25-11-W25-06 24.80 4 2 12.80 14.00 10.80 24.40 120.00 25.00 XOMT 0602..-HQ 0.358 ETS D32-14-W32-10 31.70 2 1 16.70 18.00 13.85 40.00 120.00 32.00 XPMT 1004..-HQ 0.536 ETS D32-14-W16-10 31.70 4 2 16.00 18.00 13.85 52.00 (1) 90.00 16.00 XPMT 1004..-HQ 0.135 ETS D32-16-W32-A10 31.70 4 2 16.80 18.00 15.85 39.00 110.00 32.00 APKT 1003PD.. 0.480 ETS D40-18-W32-10 39.70 4 2 20.70 22.00 17.85 50.00 130.00 32.00 XPMT 1004..-HQ 0.617 ETS D48-22-W32-15 48.50 4 2 26.00 27.00 21.85 51.30 130.00 32.00 ADKT 1505PD.. 0.732 • For user guide, see pages 320-328 (1) Adjustable overhang design. Hmin=19, Hmax=52 For inserts, see pages: ADKR 1505PDR/L-HM (390) • ADKT 1505..R/L-HM (393) • ADKT 1505PDR/L-HM (392) • ADKT 1505PDTR/L-RM (392) • APKT 1003PDTR/L-RM (385) • QOMT-HQ (424) • XOMT-HQ (425) • XPMT-HQ (426) Spare Parts Designation ETS D21-9-W16-06 SR 34-508/L T-7/51 ETS D25-11-W16-06 SR 34-508/L T-7/51 ETS D25-11-W25-06 SR 34-508/L T-7/51 ETS D32-14-W32-10 SR 14-544/S T-15/51 ETS D32-14-W16-10 SR 14-506 T-15/51 ETS D32-16-W32-A10 SR 34-505/LHG T-8/53 ETS D40-18-W32-10 SR 14-544/S T-15/51 ETS D48-22-W32-15 SR 14-544/S T-15/51 291
