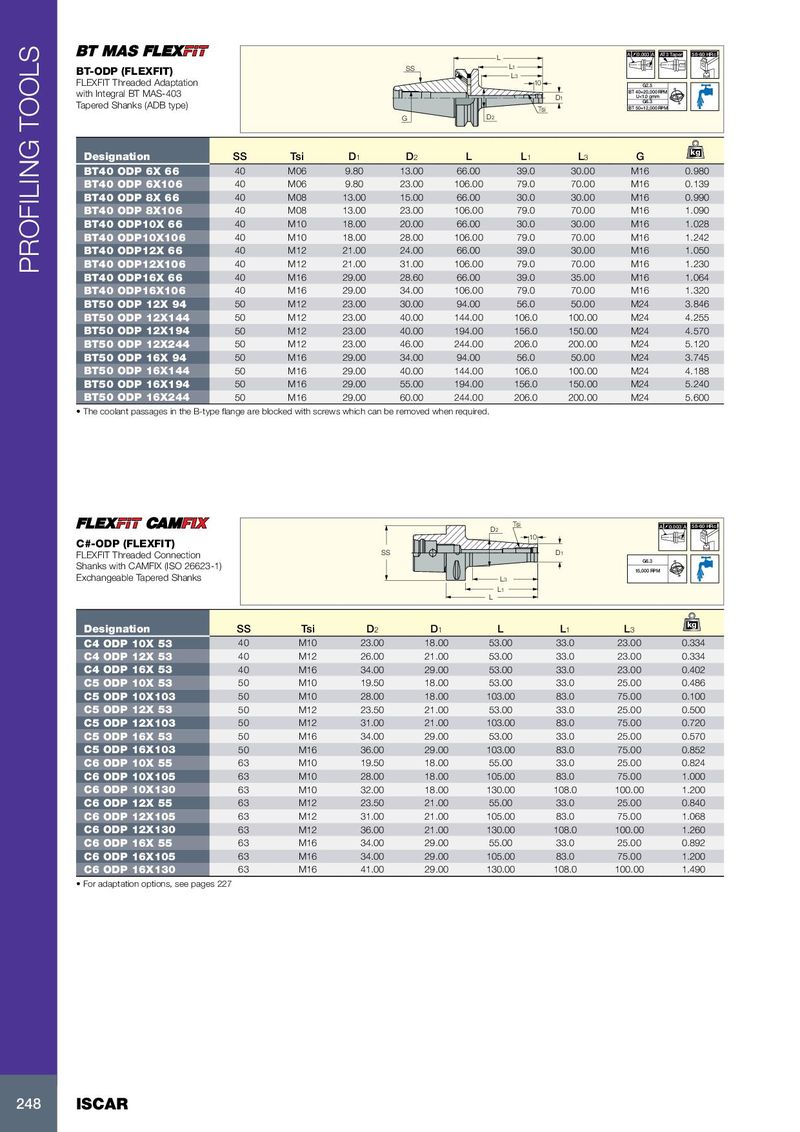

Каталог Iscar вращающийся инструмент 2017 - страница 252

L A 0.003 A AT3 Taper 58-60 HRc SS L1 BT-ODP (FLEXFIT) L3 FLEXFIT Threaded Adaptation 10 G2.5 with Integral BT MAS-403 BT 40=20,000 RPM D1 U<1.0 gmm G6.3 Tapered Shanks (ADB type) Tsi BT 50=12,000 RPM G D2 kg Designation SS Tsi D 1 D 2 L L 1 L 3 G BT40 ODP 6X 66 40 M06 9.80 13.00 66.00 39.0 30.00 M16 0.980 BT40 ODP 6X106 40 M06 9.80 23.00 106.00 79.0 70.00 M16 0.139 BT40 ODP 8X 66 40 M08 13.00 15.00 66.00 30.0 30.00 M16 0.990 BT40 ODP 8X106 40 M08 13.00 23.00 106.00 79.0 70.00 M16 1.090 BT40 ODP10X 66 40 M10 18.00 20.00 66.00 30.0 30.00 M16 1.028 BT40 ODP10X106 40 M10 18.00 28.00 106.00 79.0 70.00 M16 1.242 BT40 ODP12X 66 40 M12 21.00 24.00 66.00 39.0 30.00 M16 1.050 BT40 ODP12X106 40 M12 21.00 31.00 106.00 79.0 70.00 M16 1.230 PROFILING TOOLS BT40 ODP16X 66 40 M16 29.00 28.60 66.00 39.0 35.00 M16 1.064 BT40 ODP16X106 40 M16 29.00 34.00 106.00 79.0 70.00 M16 1.320 BT50 ODP 12X 94 50 M12 23.00 30.00 94.00 56.0 50.00 M24 3.846 BT50 ODP 12X144 50 M12 23.00 40.00 144.00 106.0 100.00 M24 4.255 BT50 ODP 12X194 50 M12 23.00 40.00 194.00 156.0 150.00 M24 4.570 BT50 ODP 12X244 50 M12 23.00 46.00 244.00 206.0 200.00 M24 5.120 BT50 ODP 16X 94 50 M16 29.00 34.00 94.00 56.0 50.00 M24 3.745 BT50 ODP 16X144 50 M16 29.00 40.00 144.00 106.0 100.00 M24 4.188 BT50 ODP 16X194 50 M16 29.00 55.00 194.00 156.0 150.00 M24 5.240 BT50 ODP 16X244 50 M16 29.00 60.00 244.00 206.0 200.00 M24 5.600 • The coolant passages in the B-type flange are blocked with screws which can be removed when required. Tsi D2 A 0.003 A 58-60 HRc 10 C#-ODP (FLEXFIT) FLEXFIT Threaded Connection SS D1 G6.3 Shanks with CAMFIX (ISO 26623-1) 15,000 RPM Exchangeable Tapered Shanks L3 L1 L kg Designation SS Tsi D 2 D 1 L L 1 L 3 C4 ODP 10X 53 40 M10 23.00 18.00 53.00 33.0 23.00 0.334 C4 ODP 12X 53 40 M12 26.00 21.00 53.00 33.0 23.00 0.334 C4 ODP 16X 53 40 M16 34.00 29.00 53.00 33.0 23.00 0.402 C5 ODP 10X 53 50 M10 19.50 18.00 53.00 33.0 25.00 0.486 C5 ODP 10X103 50 M10 28.00 18.00 103.00 83.0 75.00 0.100 C5 ODP 12X 53 50 M12 23.50 21.00 53.00 33.0 25.00 0.500 C5 ODP 12X103 50 M12 31.00 21.00 103.00 83.0 75.00 0.720 C5 ODP 16X 53 50 M16 34.00 29.00 53.00 33.0 25.00 0.570 C5 ODP 16X103 50 M16 36.00 29.00 103.00 83.0 75.00 0.852 C6 ODP 10X 55 63 M10 19.50 18.00 55.00 33.0 25.00 0.824 C6 ODP 10X105 63 M10 28.00 18.00 105.00 83.0 75.00 1.000 C6 ODP 10X130 63 M10 32.00 18.00 130.00 108.0 100.00 1.200 C6 ODP 12X 55 63 M12 23.50 21.00 55.00 33.0 25.00 0.840 C6 ODP 12X105 63 M12 31.00 21.00 105.00 83.0 75.00 1.068 C6 ODP 12X130 63 M12 36.00 21.00 130.00 108.0 100.00 1.260 C6 ODP 16X 55 63 M16 34.00 29.00 55.00 33.0 25.00 0.892 C6 ODP 16X105 63 M16 34.00 29.00 105.00 83.0 75.00 1.200 C6 ODP 16X130 63 M16 41.00 29.00 130.00 108.0 100.00 1.490 • For adaptation options, see pages 227 248 ISCAR
