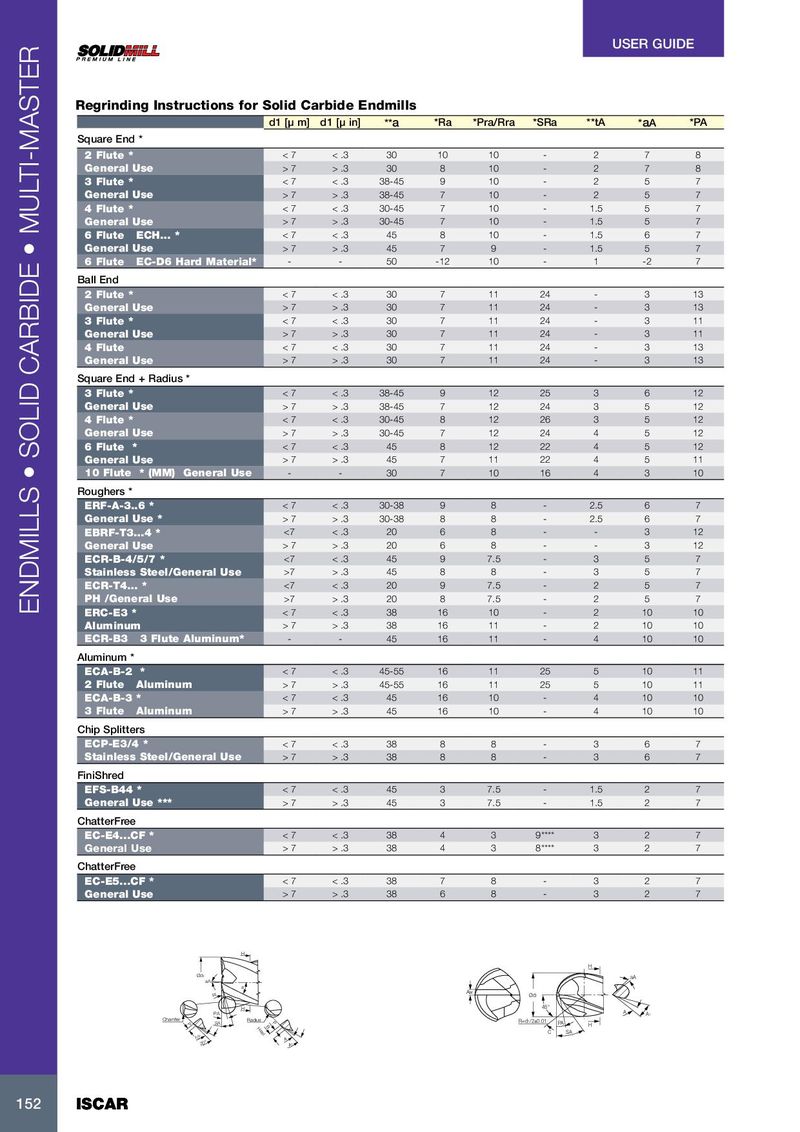

Regrinding Instructions for Solid Carbide Endmills
| d1[µm] | d1[µin] | a | Ra Pra/Rra | SRa | tA | aA PA | |
| Square End | |||||||
| 2 Flute | < 7 | < .3 | 30 | 10 10 | - | 2 | 7 8 |
| General Use | > 7 | > .3 | 30 | 8 10 | - | 2 | 7 8 |
| 3 Flute | < 7 | < .3 | 38-45 | 9 10 | - | 2 | 5 7 |
| General Use | > 7 | > .3 | 38-45 | 7 10 | - | 2 | 5 7 |
| 4 Flute | < 7 | < .3 | 30-45 | 7 10 | - | 1.5 | 5 7 |
| General Use | > 7 | > .3 | 30-45 | 7 10 | - | 1.5 | 5 7 |
| 6 Flute ECH… | < 7 | < .3 | 45 | 8 10 | - | 1.5 | 6 7 |
| General Use | > 7 | > .3 | 45 | 7 9 | - | 1.5 | 5 7 |
| 6 Flute EC-D6 Hard Material | - | - | 50 | -12 10 | - | 1 | -2 7 |
| Ball End | |||||||
| 2 Flute | < 7 | < .3 | 30 | 7 11 | 24 | - | 3 13 |
| General Use | > 7 | > .3 | 30 | 7 11 | 24 | - | 3 13 |
| 3 Flute | < 7 | < .3 | 30 | 7 11 | 24 | - | 3 11 |
| General Use | > 7 | > .3 | 30 | 7 11 | 24 | - | 3 11 |
| 4 Flute | < 7 | < .3 | 30 | 7 11 | 24 | - | 3 13 |
| General Use | > 7 | > .3 | 30 | 7 11 | 24 | - | 3 13 |
| Square End + Radius | |||||||
| 3 Flute | < 7 | < .3 | 38-45 | 9 12 | 25 | 3 | 6 12 |
| General Use | > 7 | > .3 | 38-45 | 7 12 | 24 | 3 | 5 12 |
| 4 Flute | < 7 | < .3 | 30-45 | 8 12 | 26 | 3 | 5 12 |
| General Use | > 7 | > .3 | 30-45 | 7 12 | 24 | 4 | 5 12 |
| 6 Flute | < 7 | < .3 | 45 | 8 12 | 22 | 4 | 5 12 |
| General Use | > 7 | > .3 | 45 | 7 11 | 22 | 4 | 5 11 |
| 10 Flute (MM) General Use | - | - | 30 | 7 10 | 16 | 4 | 3 10 |
| Roughers | |||||||
| ERF-A-3..6 | < 7 | < .3 | 30-38 | 9 8 | - | 2.5 | 6 7 |
| General Use | > 7 | > .3 | 30-38 | 8 8 | - | 2.5 | 6 7 |
| EBRF-T3…4 | < .3 | 20 | 6 8 | - | - | 3 12 | |
| General Use | > 7 | > .3 | 20 | 6 8 | - | - | 3 12 |
| ECR-B-4/5/7 | < .3 | 45 | 9 7.5 | - | 3 | 5 7 | |
| Stainless Steel/General Use | >7 | > .3 | 45 | 8 8 | - | 3 | 5 7 |
| ECR-T4… | < .3 | 20 | 9 7.5 | - | 2 | 5 7 | |
| PH /General Use | >7 | > .3 | 20 | 8 7.5 | - | 2 | 5 7 |
| ERC-E3 | < 7 | < .3 | 38 | 16 10 | - | 2 | 10 10 |
| Aluminum | > 7 | > .3 | 38 | 16 11 | - | 2 | 10 10 |
| ECR-B3 3 Flute Aluminum | - | - | 45 | 16 11 | - | 4 | 10 10 |
| Aluminum | |||||||
| ECA-B-2 | < 7 | < .3 | 45-55 | 16 11 | 25 | 5 | 10 11 |
| 2 Flute Aluminum | > 7 | > .3 | 45-55 | 16 11 | 25 | 5 | 10 11 |
| ECA-B-3 | < 7 | < .3 | 45 | 16 10 | - | 4 | 10 10 |
| 3 Flute Aluminum | > 7 | > .3 | 45 | 16 10 | - | 4 | 10 10 |
| ChipSplitters | |||||||
| ECP-E3/4 | < 7 | < .3 | 38 | 8 8 | - | 3 | 6 7 |
| Stainless Steel/General Use | > 7 | > .3 | 38 | 8 8 | - | 3 | 6 7 |
| FiniShred | |||||||
| EFS-B44 | < 7 | < .3 | 45 | 3 7.5 | - | 1.5 | 2 7 |
| General Use | > 7 | > .3 | 45 | 3 7.5 | - | 1.5 | 2 7 |
| ChatterFree | |||||||
| EC-E4...CF | < 7 | < .3 | 38 | 4 3 | 9 | 3 | 2 7 |
| General Use | > 7 | > .3 | 38 | 4 3 | 8 | 3 | 2 7 |
| ChatterFree | |||||||
| EC-E5...CF General Use | < 7 > 7 | < .3 > .3 | 38 38 | 7 8 6 8 | - - | 3 3 | 2 7 2 7 |
H H Ød1 aA aA a
| tA | Aw | Ød | ||
| 1 | ||||
| H | 45° |
| PA | A | A |
| 1 |
Chamfer P Radius P R=d1/2±0.01 PA
SA H Heel B C SA 10° A
20° A1
