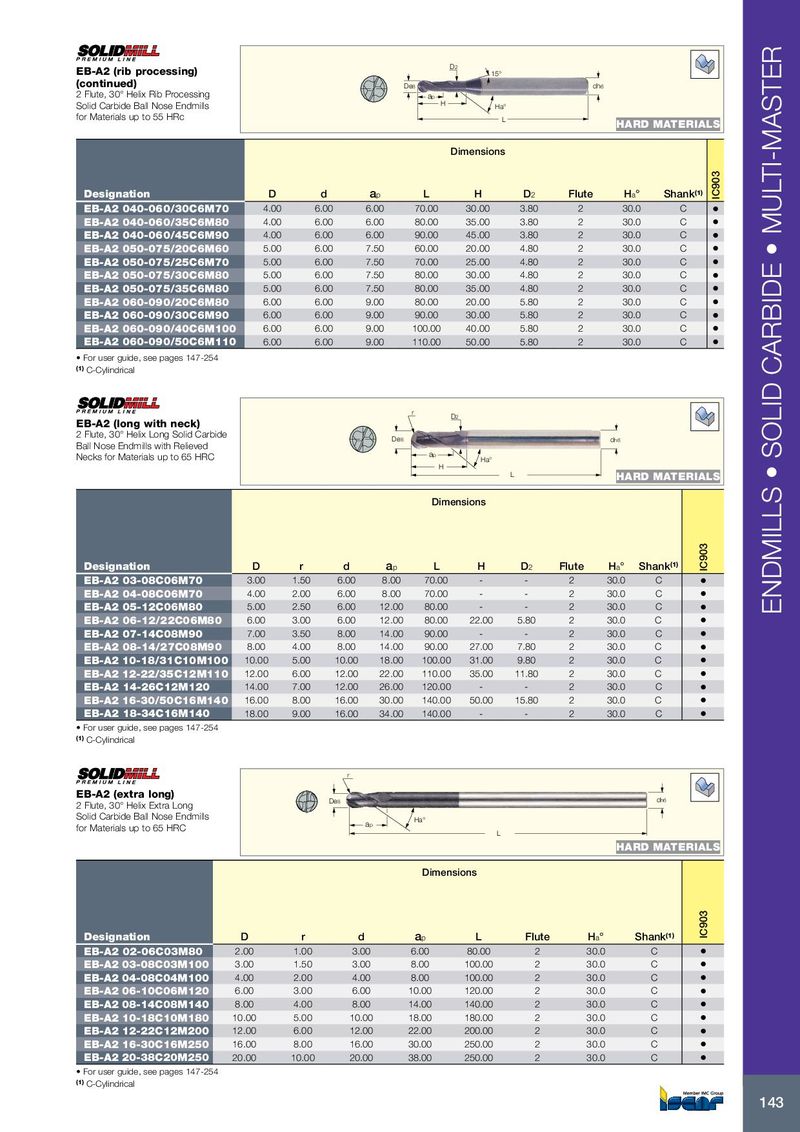

D2 EB-A2 (rib processing) 15° (continued) De8 dh6 2 Flute, 30° Helix Rib Processing ap Solid Carbide Ball Nose Endmills H Ha° for Materials up to 55 HRc L HARD MATERIALS Dimensions Designation D d a p L H D 2 Flute H a ° Shank (1) IC903 EB-A2 040-060/30C6M70 4.00 6.00 6.00 70.00 30.00 3.80 2 30.0 C • EB-A2 040-060/35C6M80 4.00 6.00 6.00 80.00 35.00 3.80 2 30.0 C • EB-A2 040-060/45C6M90 4.00 6.00 6.00 90.00 45.00 3.80 2 30.0 C • EB-A2 050-075/20C6M60 5.00 6.00 7.50 60.00 20.00 4.80 2 30.0 C • EB-A2 050-075/25C6M70 5.00 6.00 7.50 70.00 25.00 4.80 2 30.0 C • EB-A2 050-075/30C6M80 5.00 6.00 7.50 80.00 30.00 4.80 2 30.0 C • EB-A2 050-075/35C6M80 5.00 6.00 7.50 80.00 35.00 4.80 2 30.0 C • EB-A2 060-090/20C6M80 6.00 6.00 9.00 80.00 20.00 5.80 2 30.0 C • EB-A2 060-090/30C6M90 6.00 6.00 9.00 90.00 30.00 5.80 2 30.0 C • EB-A2 060-090/40C6M100 6.00 6.00 9.00 100.00 40.00 5.80 2 30.0 C • EB-A2 060-090/50C6M110 6.00 6.00 9.00 110.00 50.00 5.80 2 30.0 C • • For user guide, see pages 147-254 (1) C-Cylindrical r D2 EB-A2 (long with neck) 2 Flute, 30° Helix Long Solid Carbide De8 dh6 Ball Nose Endmills with Relieved Necks for Materials up to 65 HRC ap Ha° H L HARD MATERIALS Dimensions Designation D r d a p L H D 2 Flute H a ° Shank (1) IC903 EB-A2 03-08C06M70 3.00 1.50 6.00 8.00 70.00 - - 2 30.0 C • EB-A2 04-08C06M70 4.00 2.00 6.00 8.00 70.00 - - 2 30.0 C • EB-A2 05-12C06M80 5.00 2.50 6.00 12.00 80.00 - - 2 30.0 C • ENDMILLS • SOLID CARBIDE • MULTI-MASTER EB-A2 06-12/22C06M80 6.00 3.00 6.00 12.00 80.00 22.00 5.80 2 30.0 C • EB-A2 07-14C08M90 7.00 3.50 8.00 14.00 90.00 - - 2 30.0 C • EB-A2 08-14/27C08M90 8.00 4.00 8.00 14.00 90.00 27.00 7.80 2 30.0 C • EB-A2 10-18/31C10M100 10.00 5.00 10.00 18.00 100.00 31.00 9.80 2 30.0 C • EB-A2 12-22/35C12M110 12.00 6.00 12.00 22.00 110.00 35.00 11.80 2 30.0 C • EB-A2 14-26C12M120 14.00 7.00 12.00 26.00 120.00 - - 2 30.0 C • EB-A2 16-30/50C16M140 16.00 8.00 16.00 30.00 140.00 50.00 15.80 2 30.0 C • EB-A2 18-34C16M140 18.00 9.00 16.00 34.00 140.00 - - 2 30.0 C • • For user guide, see pages 147-254 (1) C-Cylindrical r EB-A2 (extra long) De8 dh6 2 Flute, 30° Helix Extra Long Solid Carbide Ball Nose Endmills Ha° ap for Materials up to 65 HRC L HARD MATERIALS Dimensions Designation D r d a p L Flute H a ° Shank (1) IC903 EB-A2 02-06C03M80 2.00 1.00 3.00 6.00 80.00 2 30.0 C • EB-A2 03-08C03M100 3.00 1.50 3.00 8.00 100.00 2 30.0 C • EB-A2 04-08C04M100 4.00 2.00 4.00 8.00 100.00 2 30.0 C • EB-A2 06-10C06M120 6.00 3.00 6.00 10.00 120.00 2 30.0 C • EB-A2 08-14C08M140 8.00 4.00 8.00 14.00 140.00 2 30.0 C • EB-A2 10-18C10M180 10.00 5.00 10.00 18.00 180.00 2 30.0 C • EB-A2 12-22C12M200 12.00 6.00 12.00 22.00 200.00 2 30.0 C • EB-A2 16-30C16M250 16.00 8.00 16.00 30.00 250.00 2 30.0 C • EB-A2 20-38C20M250 20.00 10.00 20.00 38.00 250.00 2 30.0 C • • For user guide, see pages 147-254 (1) C-Cylindrical 143
