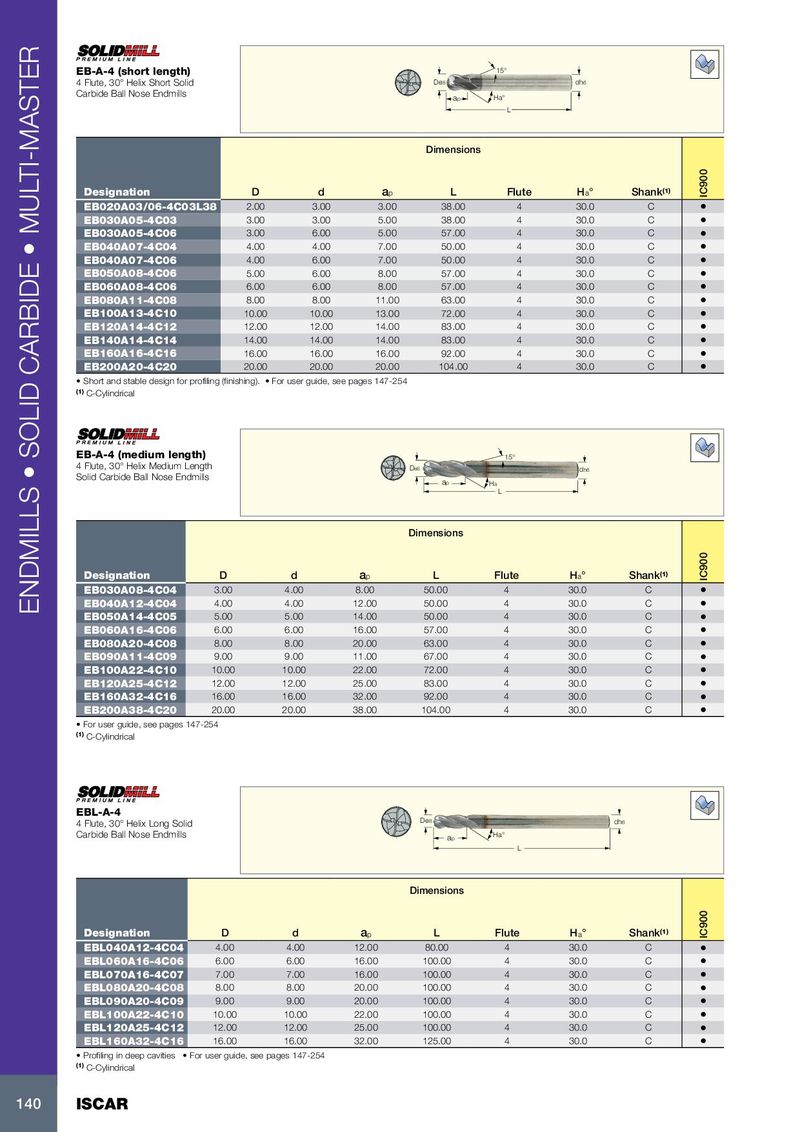

EB-A-4 (short length) 15° 4 Flute, 30° Helix Short Solid De8 dh6 Carbide Ball Nose Endmills ap Ha° L Dimensions Designation D d a p L Flute H a ° Shank (1) IC900 EB020A03/06-4C03L38 2.00 3.00 3.00 38.00 4 30.0 C • EB030A05-4C03 3.00 3.00 5.00 38.00 4 30.0 C • EB030A05-4C06 3.00 6.00 5.00 57.00 4 30.0 C • EB040A07-4C04 4.00 4.00 7.00 50.00 4 30.0 C • EB040A07-4C06 4.00 6.00 7.00 50.00 4 30.0 C • EB050A08-4C06 5.00 6.00 8.00 57.00 4 30.0 C • EB060A08-4C06 6.00 6.00 8.00 57.00 4 30.0 C • EB080A11-4C08 8.00 8.00 11.00 63.00 4 30.0 C • EB100A13-4C10 10.00 10.00 13.00 72.00 4 30.0 C • EB120A14-4C12 12.00 12.00 14.00 83.00 4 30.0 C • EB140A14-4C14 14.00 14.00 14.00 83.00 4 30.0 C • EB160A16-4C16 16.00 16.00 16.00 92.00 4 30.0 C • EB200A20-4C20 20.00 20.00 20.00 104.00 4 30.0 C • • Short and stable design for profiling (finishing). • For user guide, see pages 147-254 (1) C-Cylindrical EB-A-4 (medium length) 15° 4 Flute, 30° Helix Medium Length De8 dh6 Solid Carbide Ball Nose Endmills ap Ha L Dimensions Designation D d a p L Flute H a ° Shank (1) IC900 EB030A08-4C04 3.00 4.00 8.00 50.00 4 30.0 C • EB040A12-4C04 4.00 4.00 12.00 50.00 4 30.0 C • ENDMILLS • SOLID CARBIDE • MULTI-MASTER EB050A14-4C05 5.00 5.00 14.00 50.00 4 30.0 C • EB060A16-4C06 6.00 6.00 16.00 57.00 4 30.0 C • EB080A20-4C08 8.00 8.00 20.00 63.00 4 30.0 C • EB090A11-4C09 9.00 9.00 11.00 67.00 4 30.0 C • EB100A22-4C10 10.00 10.00 22.00 72.00 4 30.0 C • EB120A25-4C12 12.00 12.00 25.00 83.00 4 30.0 C • EB160A32-4C16 16.00 16.00 32.00 92.00 4 30.0 C • EB200A38-4C20 20.00 20.00 38.00 104.00 4 30.0 C • • For user guide, see pages 147-254 (1) C-Cylindrical EBL-A-4 4 Flute, 30° Helix Long Solid De8 dh6 Carbide Ball Nose Endmills ap Ha° L Dimensions Designation D d a p L Flute H a ° Shank (1) IC900 EBL040A12-4C04 4.00 4.00 12.00 80.00 4 30.0 C • EBL060A16-4C06 6.00 6.00 16.00 100.00 4 30.0 C • EBL070A16-4C07 7.00 7.00 16.00 100.00 4 30.0 C • EBL080A20-4C08 8.00 8.00 20.00 100.00 4 30.0 C • EBL090A20-4C09 9.00 9.00 20.00 100.00 4 30.0 C • EBL100A22-4C10 10.00 10.00 22.00 100.00 4 30.0 C • EBL120A25-4C12 12.00 12.00 25.00 100.00 4 30.0 C • EBL160A32-4C16 16.00 16.00 32.00 125.00 4 30.0 C • • Profiling in deep cavities • For user guide, see pages 147-254 (1) C-Cylindrical 140 ISCAR
