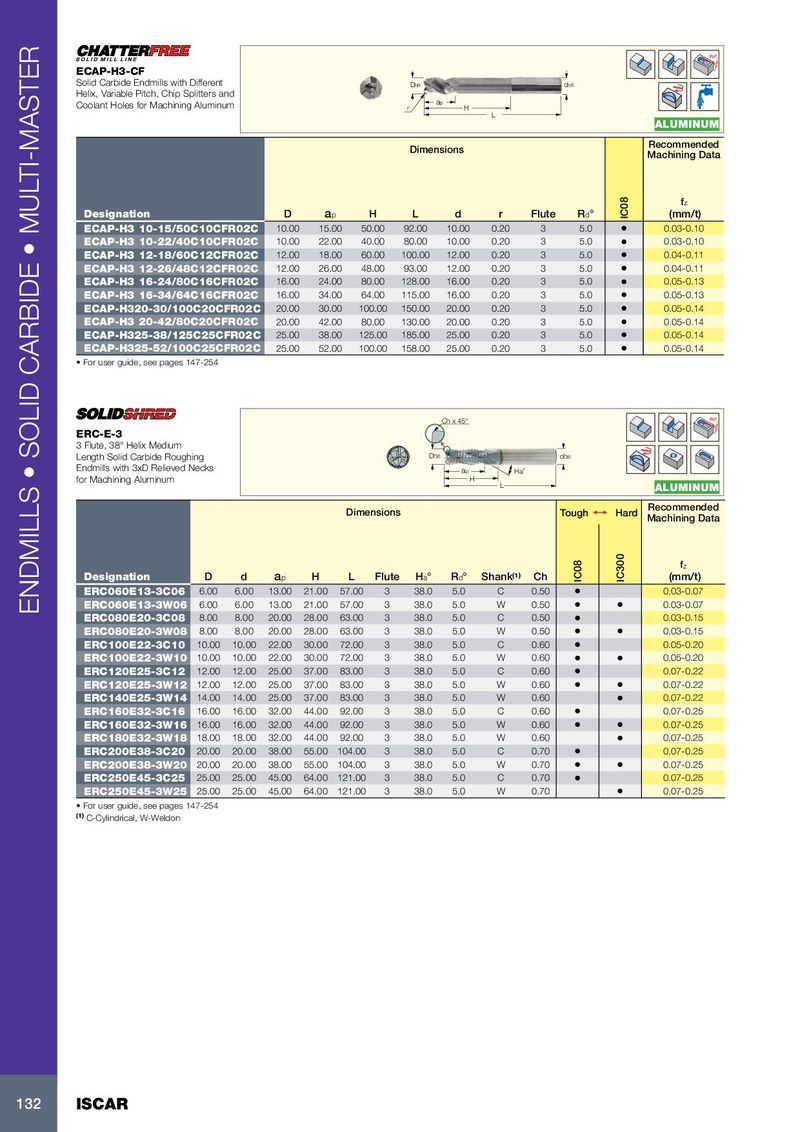

Rd° ECAP-H3-CF Solid Carbide Endmills with Different Dh6 dh6 Helix, Variable Pitch, Chip Splitters and Coolant Holes for Machining Aluminum ap r H L ALUMINUM Recommended Dimensions Machining Data f z Designation D a p H L d r Flute R d ° IC08 (mm/t) ECAP-H3 10-15/50C10CFR02C 10.00 15.00 50.00 92.00 10.00 0.20 3 5.0 • 0.03-0.10 ECAP-H3 10-22/40C10CFR02C 10.00 22.00 40.00 80.00 10.00 0.20 3 5.0 • 0.03-0.10 ECAP-H3 12-18/60C12CFR02C 12.00 18.00 60.00 100.00 12.00 0.20 3 5.0 • 0.04-0.11 ECAP-H3 12-26/48C12CFR02C 12.00 26.00 48.00 93.00 12.00 0.20 3 5.0 • 0.04-0.11 ECAP-H3 16-24/80C16CFR02C 16.00 24.00 80.00 128.00 16.00 0.20 3 5.0 • 0.05-0.13 ECAP-H3 16-34/64C16CFR02C 16.00 34.00 64.00 115.00 16.00 0.20 3 5.0 • 0.05-0.13 ECAP-H320-30/100C20CFR02C 20.00 30.00 100.00 150.00 20.00 0.20 3 5.0 • 0.05-0.14 ECAP-H3 20-42/80C20CFR02C 20.00 42.00 80.00 130.00 20.00 0.20 3 5.0 • 0.05-0.14 ECAP-H325-38/125C25CFR02C 25.00 38.00 125.00 185.00 25.00 0.20 3 5.0 • 0.05-0.14 ECAP-H325-52/100C25CFR02C 25.00 52.00 100.00 158.00 25.00 0.20 3 5.0 • 0.05-0.14 • For user guide, see pages 147-254 Ch x 45° Rd° ERC-E-3 3 Flute, 38° Helix Medium Length Solid Carbide Roughing Dh6 dh6 Endmills with 3xD Relieved Necks ap Ha˚ for Machining Aluminum H L ALUMINUM Recommended Dimensions Tough 1  Hard Machining Data f z Designation D d a p H L Flute H a ° R d ° Shank (1) Ch IC08 IC300 (mm/t) ERC060E13-3C06 6.00 6.00 13.00 21.00 57.00 3 38.0 5.0 C 0.50 • 0.03-0.07 ERC060E13-3W06 6.00 6.00 13.00 21.00 57.00 3 38.0 5.0 W 0.50 • • 0.03-0.07 ENDMILLS • SOLID CARBIDE • MULTI-MASTER ERC080E20-3C08 8.00 8.00 20.00 28.00 63.00 3 38.0 5.0 C 0.50 • 0.03-0.15 ERC080E20-3W08 8.00 8.00 20.00 28.00 63.00 3 38.0 5.0 W 0.50 • • 0.03-0.15 ERC100E22-3C10 10.00 10.00 22.00 30.00 72.00 3 38.0 5.0 C 0.60 • 0.05-0.20 ERC100E22-3W10 10.00 10.00 22.00 30.00 72.00 3 38.0 5.0 W 0.60 • • 0.05-0.20 ERC120E25-3C12 12.00 12.00 25.00 37.00 83.00 3 38.0 5.0 C 0.60 • 0.07-0.22 ERC120E25-3W12 12.00 12.00 25.00 37.00 83.00 3 38.0 5.0 W 0.60 • • 0.07-0.22 ERC140E25-3W14 14.00 14.00 25.00 37.00 83.00 3 38.0 5.0 W 0.60 • 0.07-0.22 ERC160E32-3C16 16.00 16.00 32.00 44.00 92.00 3 38.0 5.0 C 0.60 • 0.07-0.25 ERC160E32-3W16 16.00 16.00 32.00 44.00 92.00 3 38.0 5.0 W 0.60 • • 0.07-0.25 ERC180E32-3W18 18.00 18.00 32.00 44.00 92.00 3 38.0 5.0 W 0.60 • 0.07-0.25 ERC200E38-3C20 20.00 20.00 38.00 55.00 104.00 3 38.0 5.0 C 0.70 • 0.07-0.25 ERC200E38-3W20 20.00 20.00 38.00 55.00 104.00 3 38.0 5.0 W 0.70 • • 0.07-0.25 ERC250E45-3C25 25.00 25.00 45.00 64.00 121.00 3 38.0 5.0 C 0.70 • 0.07-0.25 ERC250E45-3W25 25.00 25.00 45.00 64.00 121.00 3 38.0 5.0 W 0.70 • 0.07-0.25 • For user guide, see pages 147-254 (1) C-Cylindrical, W-Weldon 132 ISCAR
