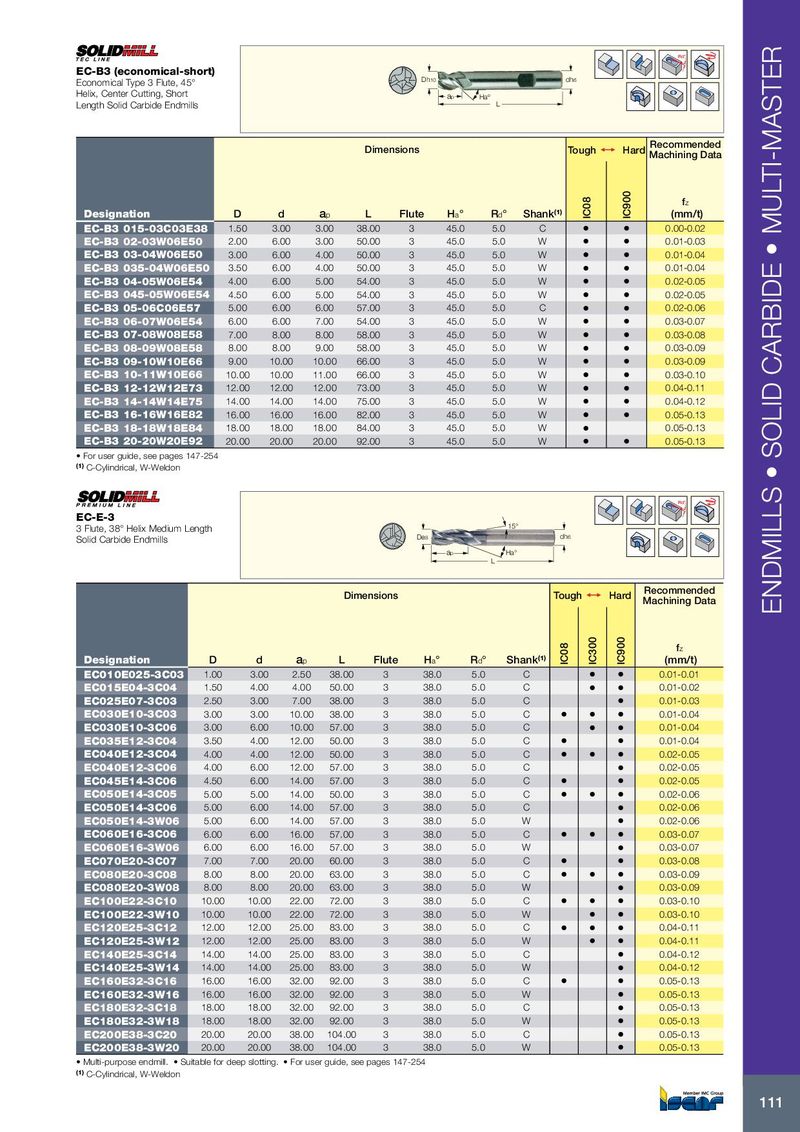

Каталог Iscar вращающийся инструмент 2017 - страница 115

Rd° EC-B3 (economical-short) Economical Type 3 Flute, 45° Dh10 dh6 Helix, Center Cutting, Short ap Haº Length Solid Carbide Endmills L Recommended Dimensions Tough 1  Hard Machining Data f z Designation D d a p L Flute H a ° R d ° Shank (1) IC08 IC900 (mm/t) EC-B3 015-03C03E38 1.50 3.00 3.00 38.00 3 45.0 5.0 C • • 0.00-0.02 EC-B3 02-03W06E50 2.00 6.00 3.00 50.00 3 45.0 5.0 W • • 0.01-0.03 EC-B3 03-04W06E50 3.00 6.00 4.00 50.00 3 45.0 5.0 W • • 0.01-0.04 EC-B3 035-04W06E50 3.50 6.00 4.00 50.00 3 45.0 5.0 W • • 0.01-0.04 EC-B3 04-05W06E54 4.00 6.00 5.00 54.00 3 45.0 5.0 W • • 0.02-0.05 EC-B3 045-05W06E54 4.50 6.00 5.00 54.00 3 45.0 5.0 W • • 0.02-0.05 EC-B3 05-06C06E57 5.00 6.00 6.00 57.00 3 45.0 5.0 C • • 0.02-0.06 EC-B3 06-07W06E54 6.00 6.00 7.00 54.00 3 45.0 5.0 W • • 0.03-0.07 EC-B3 07-08W08E58 7.00 8.00 8.00 58.00 3 45.0 5.0 W • • 0.03-0.08 EC-B3 08-09W08E58 8.00 8.00 9.00 58.00 3 45.0 5.0 W • • 0.03-0.09 EC-B3 09-10W10E66 9.00 10.00 10.00 66.00 3 45.0 5.0 W • • 0.03-0.09 EC-B3 10-11W10E66 10.00 10.00 11.00 66.00 3 45.0 5.0 W • • 0.03-0.10 EC-B3 12-12W12E73 12.00 12.00 12.00 73.00 3 45.0 5.0 W • • 0.04-0.11 EC-B3 14-14W14E75 14.00 14.00 14.00 75.00 3 45.0 5.0 W • • 0.04-0.12 EC-B3 16-16W16E82 16.00 16.00 16.00 82.00 3 45.0 5.0 W • • 0.05-0.13 EC-B3 18-18W18E84 18.00 18.00 18.00 84.00 3 45.0 5.0 W • 0.05-0.13 EC-B3 20-20W20E92 20.00 20.00 20.00 92.00 3 45.0 5.0 W • • 0.05-0.13 • For user guide, see pages 147-254 (1) C-Cylindrical, W-Weldon Rd° EC-E-3 3 Flute, 38° Helix Medium Length 15° Solid Carbide Endmills De8 dh6 ap Ha° L Recommended Dimensions Tough 1  Hard Machining Data ENDMILLS • SOLID CARBIDE • MULTI-MASTER f z Designation D d a p L Flute H a ° R d ° Shank (1) IC08 IC300 IC900 (mm/t) EC010E025-3C03 1.00 3.00 2.50 38.00 3 38.0 5.0 C • • 0.01-0.01 EC015E04-3C04 1.50 4.00 4.00 50.00 3 38.0 5.0 C • • 0.01-0.02 EC025E07-3C03 2.50 3.00 7.00 38.00 3 38.0 5.0 C • 0.01-0.03 EC030E10-3C03 3.00 3.00 10.00 38.00 3 38.0 5.0 C • • • 0.01-0.04 EC030E10-3C06 3.00 6.00 10.00 57.00 3 38.0 5.0 C • • 0.01-0.04 EC035E12-3C04 3.50 4.00 12.00 50.00 3 38.0 5.0 C • • 0.01-0.04 EC040E12-3C04 4.00 4.00 12.00 50.00 3 38.0 5.0 C • • • 0.02-0.05 EC040E12-3C06 4.00 6.00 12.00 57.00 3 38.0 5.0 C • 0.02-0.05 EC045E14-3C06 4.50 6.00 14.00 57.00 3 38.0 5.0 C • • 0.02-0.05 EC050E14-3C05 5.00 5.00 14.00 50.00 3 38.0 5.0 C • • • 0.02-0.06 EC050E14-3C06 5.00 6.00 14.00 57.00 3 38.0 5.0 C • 0.02-0.06 EC050E14-3W06 5.00 6.00 14.00 57.00 3 38.0 5.0 W • 0.02-0.06 EC060E16-3C06 6.00 6.00 16.00 57.00 3 38.0 5.0 C • • • 0.03-0.07 EC060E16-3W06 6.00 6.00 16.00 57.00 3 38.0 5.0 W • 0.03-0.07 EC070E20-3C07 7.00 7.00 20.00 60.00 3 38.0 5.0 C • • 0.03-0.08 EC080E20-3C08 8.00 8.00 20.00 63.00 3 38.0 5.0 C • • • 0.03-0.09 EC080E20-3W08 8.00 8.00 20.00 63.00 3 38.0 5.0 W • 0.03-0.09 EC100E22-3C10 10.00 10.00 22.00 72.00 3 38.0 5.0 C • • • 0.03-0.10 EC100E22-3W10 10.00 10.00 22.00 72.00 3 38.0 5.0 W • • 0.03-0.10 EC120E25-3C12 12.00 12.00 25.00 83.00 3 38.0 5.0 C • • • 0.04-0.11 EC120E25-3W12 12.00 12.00 25.00 83.00 3 38.0 5.0 W • • 0.04-0.11 EC140E25-3C14 14.00 14.00 25.00 83.00 3 38.0 5.0 C • 0.04-0.12 EC140E25-3W14 14.00 14.00 25.00 83.00 3 38.0 5.0 W • 0.04-0.12 EC160E32-3C16 16.00 16.00 32.00 92.00 3 38.0 5.0 C • • 0.05-0.13 EC160E32-3W16 16.00 16.00 32.00 92.00 3 38.0 5.0 W • 0.05-0.13 EC180E32-3C18 18.00 18.00 32.00 92.00 3 38.0 5.0 C • 0.05-0.13 EC180E32-3W18 18.00 18.00 32.00 92.00 3 38.0 5.0 W • 0.05-0.13 EC200E38-3C20 20.00 20.00 38.00 104.00 3 38.0 5.0 C • 0.05-0.13 EC200E38-3W20 20.00 20.00 38.00 104.00 3 38.0 5.0 W • 0.05-0.13 • Multi-purpose endmill. • Suitable for deep slotting. • For user guide, see pages 147-254 (1) C-Cylindrical, W-Weldon 111
