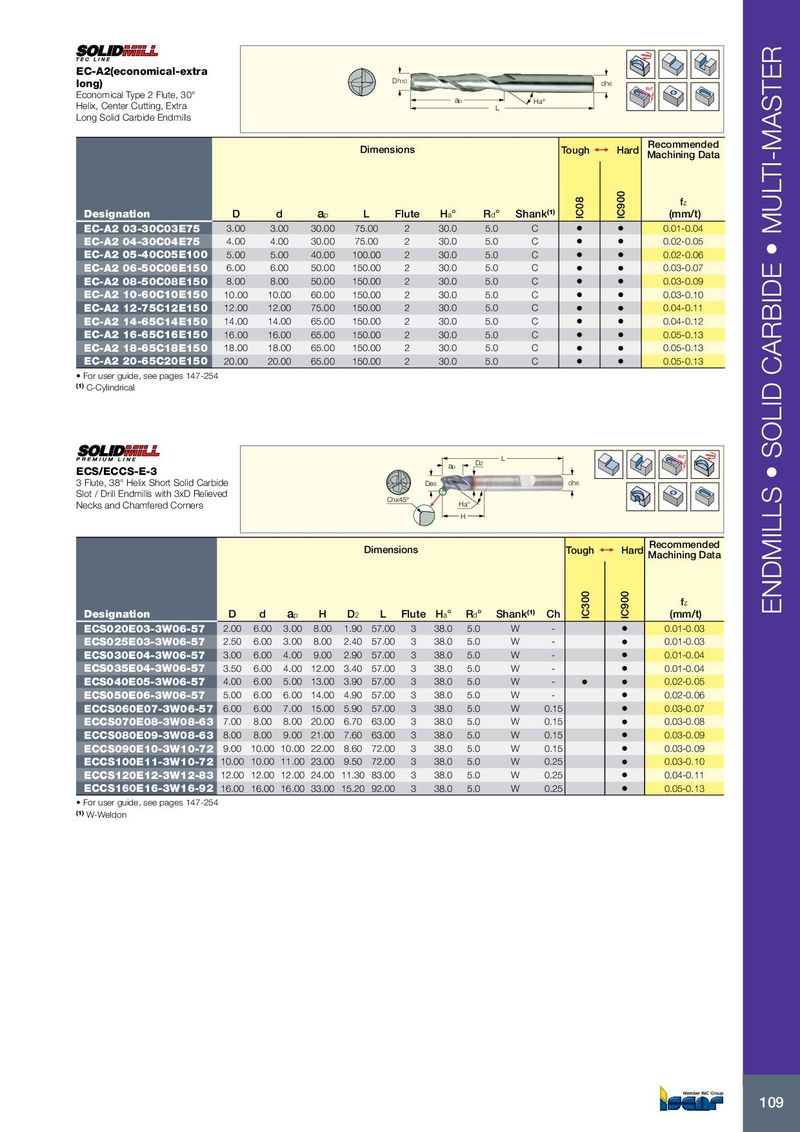

EC-A2(economical-extra long) Dh10 dh6 Rd° Economical Type 2 Flute, 30° ap Haº Helix, Center Cutting, Extra L Long Solid Carbide Endmills Recommended Dimensions Tough 1  Hard Machining Data f z Designation D d a p L Flute H a ° R d ° Shank (1) IC08 IC900 (mm/t) EC-A2 03-30C03E75 3.00 3.00 30.00 75.00 2 30.0 5.0 C • • 0.01-0.04 EC-A2 04-30C04E75 4.00 4.00 30.00 75.00 2 30.0 5.0 C • • 0.02-0.05 EC-A2 05-40C05E100 5.00 5.00 40.00 100.00 2 30.0 5.0 C • • 0.02-0.06 EC-A2 06-50C06E150 6.00 6.00 50.00 150.00 2 30.0 5.0 C • • 0.03-0.07 EC-A2 08-50C08E150 8.00 8.00 50.00 150.00 2 30.0 5.0 C • • 0.03-0.09 EC-A2 10-60C10E150 10.00 10.00 60.00 150.00 2 30.0 5.0 C • • 0.03-0.10 EC-A2 12-75C12E150 12.00 12.00 75.00 150.00 2 30.0 5.0 C • • 0.04-0.11 EC-A2 14-65C14E150 14.00 14.00 65.00 150.00 2 30.0 5.0 C • • 0.04-0.12 EC-A2 16-65C16E150 16.00 16.00 65.00 150.00 2 30.0 5.0 C • • 0.05-0.13 EC-A2 18-65C18E150 18.00 18.00 65.00 150.00 2 30.0 5.0 C • • 0.05-0.13 EC-A2 20-65C20E150 20.00 20.00 65.00 150.00 2 30.0 5.0 C • • 0.05-0.13 • For user guide, see pages 147-254 (1) C-Cylindrical L Rd° ap D2 ECS/ECCS-E-3 3 Flute, 38° Helix Short Solid Carbide De8 dh6 Slot / Drill Endmills with 3xD Relieved Chx45º Necks and Chamfered Corners Ha° H Recommended Dimensions Tough 1  Hard Machining Data f z Designation D d a p H D 2 L Flute H a ° R d ° Shank (1) Ch ENDMILLS • SOLID CARBIDE • MULTI-MASTER IC300 IC900 (mm/t) ECS020E03-3W06-57 2.00 6.00 3.00 8.00 1.90 57.00 3 38.0 5.0 W - • 0.01-0.03 ECS025E03-3W06-57 2.50 6.00 3.00 8.00 2.40 57.00 3 38.0 5.0 W - • 0.01-0.03 ECS030E04-3W06-57 3.00 6.00 4.00 9.00 2.90 57.00 3 38.0 5.0 W - • 0.01-0.04 ECS035E04-3W06-57 3.50 6.00 4.00 12.00 3.40 57.00 3 38.0 5.0 W - • 0.01-0.04 ECS040E05-3W06-57 4.00 6.00 5.00 13.00 3.90 57.00 3 38.0 5.0 W - • • 0.02-0.05 ECS050E06-3W06-57 5.00 6.00 6.00 14.00 4.90 57.00 3 38.0 5.0 W - • 0.02-0.06 ECCS060E07-3W06-57 6.00 6.00 7.00 15.00 5.90 57.00 3 38.0 5.0 W 0.15 • 0.03-0.07 ECCS070E08-3W08-63 7.00 8.00 8.00 20.00 6.70 63.00 3 38.0 5.0 W 0.15 • 0.03-0.08 ECCS080E09-3W08-63 8.00 8.00 9.00 21.00 7.60 63.00 3 38.0 5.0 W 0.15 • 0.03-0.09 ECCS090E10-3W10-72 9.00 10.00 10.00 22.00 8.60 72.00 3 38.0 5.0 W 0.15 • 0.03-0.09 ECCS100E11-3W10-72 10.00 10.00 11.00 23.00 9.50 72.00 3 38.0 5.0 W 0.25 • 0.03-0.10 ECCS120E12-3W12-83 12.00 12.00 12.00 24.00 11.30 83.00 3 38.0 5.0 W 0.25 • 0.04-0.11 ECCS160E16-3W16-92 16.00 16.00 16.00 33.00 15.20 92.00 3 38.0 5.0 W 0.25 • 0.05-0.13 • For user guide, see pages 147-254 (1) W-Weldon 109
