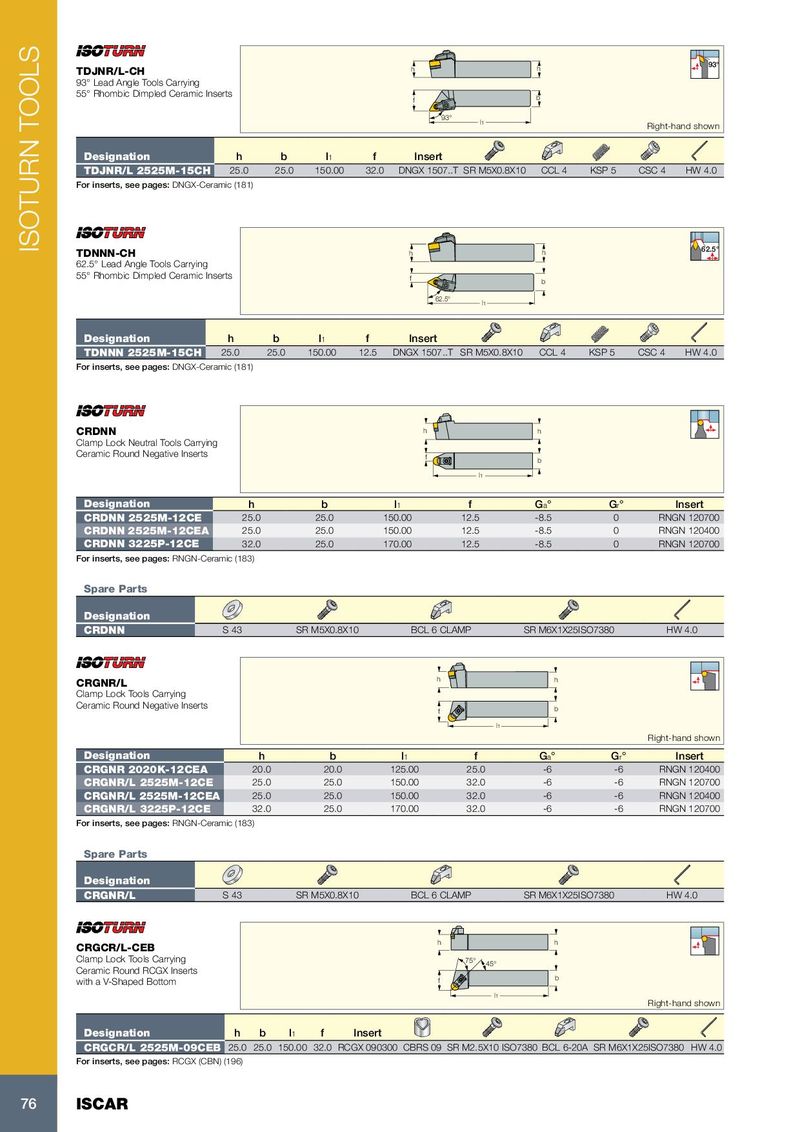

TDJNR/L-CH 93° 55° Rhombic Dimpled Ceramic Inserts f b 93° l 1 Right-hand shown
| Designation | h | b | l1 | f | Insert | |||||
| TDJNR/L 2525M-15CH | 25.0 | 25.0 | 150.00 | 32.0 | DNGX 1507..T SR M5X0.8X10 | CCL 4 | KSP 5 | CSC 4 | HW 4.0 |
For inserts, see pages: DNGX-Ceramic (181)
TDNNN-CH h h 62.5°
62.5° Lead Angle Tools Carrying 55° Rhombic Dimpled Ceramic Inserts f b 62.5°
l1
| Designation | h | b | l1 | f | Insert | ||||||
| TDNNN 2525M-15CH | 25.0 | 25.0 | 150.00 | 12.5 | DNGX 1507..T SR M5X0.8X10 | CCL 4 | KSP 5 | CSC 4 | HW 4.0 |
For inserts, see pages: DNGX-Ceramic (181)
| CRDNN | h | h | |
| Clamp Lock Neutral Tools Carrying | |||
| Ceramic Round Negative Inserts | |||
| f | b | ||
| l 1 |
| Designation | h | b | l1 f | Ga° | Gr° | Insert | |
| CRDNN 2525M-12CE | 25.0 | 25.0 | 150.00 | 12.5 | -8.5 | 0 | RNGN 120700 |
| CRDNN 2525M-12CEA | 25.0 | 25.0 | 150.00 | 12.5 | -8.5 | 0 | RNGN 120400 |
| CRDNN 3225P-12CE | 32.0 | 25.0 | 170.00 | 12.5 | -8.5 | 0 | RNGN 120700 |
| For inserts, see pages: RNGN-Ceramic (183) | |||||||
| Spare Parts | |||||||
| Designation |
CRDNN S 43 SR M5X0.8X10 BCL 6 CLAMP SR M6X1X25ISO7380 HW 4.0
CRGNR/L h h
Clamp Lock Tools Carrying Ceramic Round Negative Inserts f b l1
Right-hand shown
| Designation | h | b | l1 | f | Ga° | Gr° | Insert | ||
| CRGNR 2020K-12CEA | 20.0 | 20.0 | 125.00 | 25.0 | -6 | -6 | RNGN 120400 | ||
| CRGNR/L 2525M-12CE | 25.0 | 25.0 | 150.00 | 32.0 | -6 | -6 | RNGN 120700 | ||
| CRGNR/L 2525M-12CEA | 25.0 | 25.0 | 150.00 | 32.0 | -6 | -6 | RNGN 120400 | ||
| CRGNR/L 3225P-12CE | 32.0 | 25.0 | 170.00 | 32.0 | -6 | -6 | RNGN 120700 | ||
| For inserts, see pages: RNGN-Ceramic (183) | |||||||||
| Spare Parts | |||||||||
| Designation | |||||||||
| CRGNR/L | S 43 | SR M5X0.8X10 | BCL 6 CLAMP | SR M6X1X25ISO7380 | HW 4.0 |
| CRGCR/L-CEB | h | h | |
| Clamp Lock Tools Carrying | 75° | ||
| 45° | |||
| Ceramic Round RCGX Inserts | |||
| with a V-Shaped Bottom | f | b | |
| l 1 | |||
| Right-hand shown |
Designation h b l1 f Insert
CRGCR/L 2525M-09CEB 25.0 25.0 150.00 32.0 RCGX 090300 CBRS 09 SR M2.5X10 ISO7380 BCL 6-20A SR M6X1X25ISO7380 HW 4.0 For inserts, see pages: RCGX (CBN) (196)
